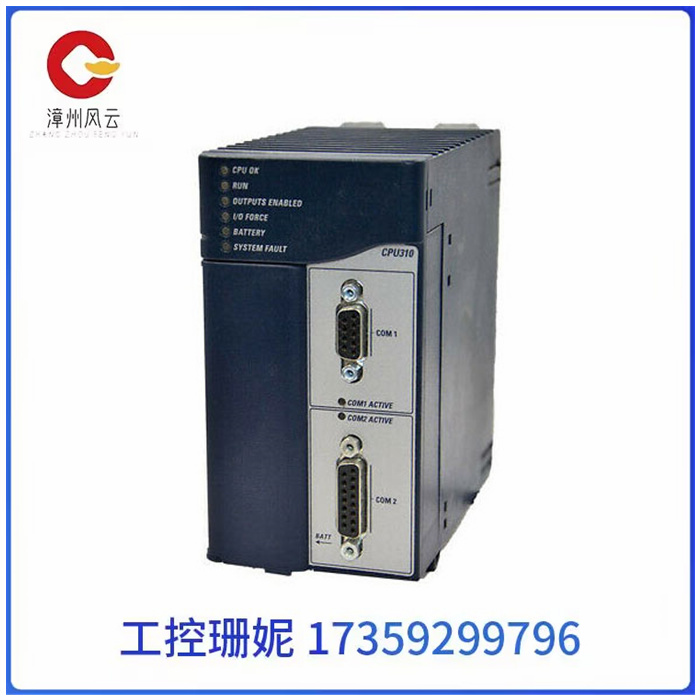

IC695CPE310 中央处理器(CPU)模块

IC695CPE310 中央处理器(CPU)模块

IC695CPE310 中央处理器(CPU)模块

产品描述

IC695CPU310 是 GE Fanuc RX3i 系列的 300 MHz 中央处理器。

IC695CPU310 有一个带有 10 MB RAM 和 10 MB 闪存的 Intel Celeron (Pentium III) 微处理器。它还具有一对用于 RS-232 和 RS-485 通信的嵌入式串行端口。两个端口都面向机箱正面，便于使用。IC695CPU310支持三种不同的串行协议（Modbus RTU Slave、SNP 和 Serial I/O），它们都与可编程逻辑控制器一起工作，以构建 PLC 提供信息的方式： IC695CPU310 使用 SNP Slave 协议与 HMI 通信（人机界面）设备。

机箱正面的 8 个 LED 让您一目了然地了解系统状态，从而判断 CPU、电池和通信通道是否按预期工作。产品文档提醒您 LED 颜色和状态的含义，但 CPU 遵循广泛接受的惯例：闪烁或红灯表示系统故障，而稳定的绿色表示正常操作。

双背板总线架构支持 RX3i PCI 和 GE Fanuc 系列 90-30 型串行总线使用。CPU 本身最多支持 512 个程序块，每个程序块的最大大小为 128 KB。您可以使用梯形图、结构化文本或功能块图编程语言对其进行编程。您也可以用 C 语言对其进行编程。

RX3i CPU 由编程软件进行编程和配置，以对机器、流程和材料处理系统进行实时控制。

IC695CPE310 中央处理器(CPU)模块

Product description

The IC695CPU310 is a 300 MHz CPU from the GE Fanuc RX3i series.

The IC695CPU310 has an Intel Celeron (Pentium III) microprocessor with 10 MB RAM and 10 MB flash memory. It also has a pair of embedded serial ports for RS-232 and RS-485 communication. Both ports face the front of the chassis for ease of use. The IC695CPU310 supports three different Serial protocols (Modbus RTU Slave, SNP, and Serial I/O), all of which work with programmable logic controllers to build the way the PLC provides information: The IC695CPU310 uses the SNP Slave protocol to communicate with the HMI (human machine interface) device.

Eight leds on the front of the case give you a clear picture of the system status to determine whether the CPU, battery, and communication channels are working as expected. Product documentation reminds you of the meaning of LED color and status, but cpus follow widely accepted conventions: a blinking or red light indicates system failure, while a steady green indicates normal operation.

The dual backplane bus architecture supports RX3i PCI and GE Fanuc series Type 90-30 serial buses. The CPU itself supports up to 512 blocks, each with a maximum size of 128 KB. You can program it using ladder diagram, structured text, or functional block diagram programming languages. You can also program it in C.

The RX3i CPU is programmed and configured by programming software for real-time control of machines, processes and material handling systems.
