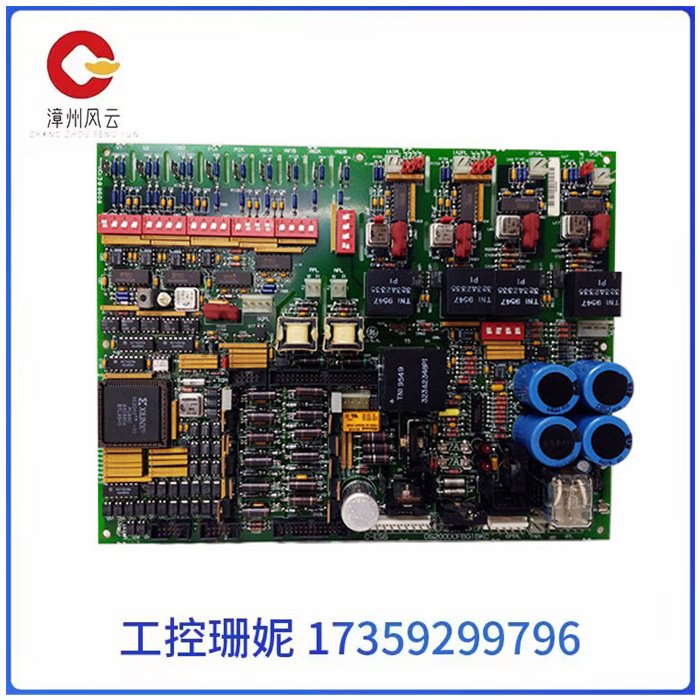

通用电气DS200DCFBG1BKC是Mark V系列电源板。当安装在驱动器中时，该板为机柜风扇以及系统的控制级电源供电。

在GE的驱动器系统中，该板与DC2000、AC2000、FC2000、CB2000和ME2000系列驱动器兼容。电路板的标称额定源输入可安全测量38至115VAC之间的电压。卡产生的输出频率可以测量0到500 kHz，具体取决于输入的电压。

DS200DCFBG1BKC上有五个单独的电路。这些电路包括控制级电源电路、驱动电路、电机磁场电源电路以及交流和直流监测电路。驱动器上保险丝的诊断信息通过两个LED指示灯和一个霓虹灯指示灯呈现给用户。

电路板中集成了三个保护保险丝，保护电流不受干扰。当使用卡上的五个测试点之一时，检查电路板中的电压水平很简单。为用户提供了许多可配置的设置，以适应特定工作的需要。

电路板上的12个跳线和7个DIP开关可根据用户要求进行配置。电路板和驱动器包含通用电气概述的应遵循的安装参数。这些指南将保护整个装置免受任何意外损坏。请参考设备的数据表和手册，以获取接线和安装电路板的完整指南。Mark V系列的成员由其原始制造商通用电气提供技术支持。

GE电源板DS200DCFBG1BKC直流反馈模块系列

The GE DS200DCFBG1BKC is a Mark V series power supply board. When mounted in a drive, the board powers the cabinet fan as well as the system's control level power supply.

In GE's drive system, the board is compatible with DC2000, AC2000, FC2000, CB2000 and ME2000 series drives. The board's nominal rated source input safely measures voltages between 38 and 115VAC. The output frequency produced by the card can be measured from 0 to 500 kHz, depending on the input voltage.

There are five separate circuits on the DS200DCFBG1BKC. These circuits include control level power supply circuits, drive circuits, motor magnetic field power supply circuits, and AC and DC monitoring circuits. The diagnostic information of the fuse on the drive is presented to the user via two LED indicators and one neon indicator.

Three protective fuses are integrated into the circuit board to protect the current from interference. Checking the voltage level in the board is simple when using one of the five test points on the card. Users are provided with a number of configurable Settings to suit the needs of a particular job.

The 12 jumpers and 7 DIP switches on the board can be configured according to user requirements. The board and driver contain General Electric Outlines of the installation parameters to be followed. These guidelines will protect the entire unit from any accidental damage. Refer to your device's data sheet and manual for a complete guide to wiring and installing your circuit board. The members of the Mark V Series are technically supported by their original manufacturer, General Electric.
