产品描述

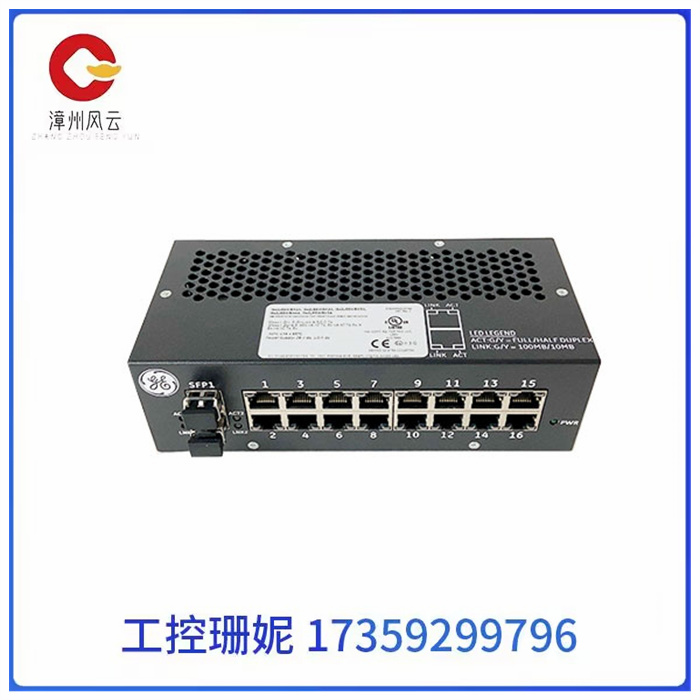

IS420ESWBH3A 是通用电气设计和制造的可用非管理型以太网交换机的一种版本，用于其 Mark VIe 涡轮机控制系统。Mark VIe 的设计使其可以像管理整个工厂一样轻松有效地管理单个涡轮机。

根据相关涡轮系统的需要，该系统可以构建为单工形式，也可以采用 TMR（三重模块化冗余）架构。IS420ESWBH3A 是 ESWB 交换机的五个可用版本之一，具有 16 个单独的端口，每个端口都支持 10/100Base-tx 连接。该装置还提供 100 Mbps FX 上行链路以及全双工和半双工自动协商。该装置与 802.3、802.3u 和 802.3x 以太网兼容。该模块构建为单个单元，所有端口均位于一侧，每行 8 个，每行两行。

每个端口都有编号。此外，每个端口都提供了自己的 LED 指示灯，让用户可以记录该端口内是否存在活动、链接和速度。以太网端口末端有一个 LED 指示灯，用于指示整个设备的电源，而其他诊断 LED 则位于其另一端，用于指示活动。

IS420ESWBH3A 通常使用 DIN 导轨安装。该装置可以平行或垂直配置安装。但是，如果该装置要替换以前安装的第 3 方开关，它也可以使用已建立的安装支架，无论它们是用于 DIN 导轨还是面板。该装置设计有几个螺丝孔，以允许面板安装选项。

美国GE模块IS420ESWBH3A涡轮燃机工业Mark VI控制器

Product description

The IS420ESWBH3A is a version of a usable unmanaged Ethernet switch designed and manufactured by General Electric for its Mark VIe turbine control system. Mark VIe's design allows it to manage individual turbines as easily and efficiently as an entire plant.

Depending on the needs of the relevant turbine system, the system can be built in simplex form or in TMR (Triple modular Redundancy) architecture. The IS420ESWBH3A is one of five available versions of the ESWB switch with 16 separate ports, each supporting 10/100Base-tx connectivity. The unit also offers 100 Mbps FX uplink and full duplex and half duplex auto-negotiation. The device is compatible with 802.3u, 802.3U, and 802.3x Ethernet. The module is built as a single unit with all ports on one side, eight in each row and two in each row.

Each port is numbered. In addition, each port is provided with its own LED indicator, allowing users to record the presence or absence of activity, links and speeds within that port. An LED indicator at the end of the Ethernet port is used to indicate power to the entire device, while other diagnostic leds are located at the other end of it to indicate activity.

The IS420ESWBH3A is usually mounted using DIN rails. The device can be installed in parallel or vertical configuration. However, if the device is to replace a previously installed 3rd square switch, it can also use established mounting brackets, whether they are for DIN rails or panels. The unit is designed with several screw holes to allow panel mounting options.
