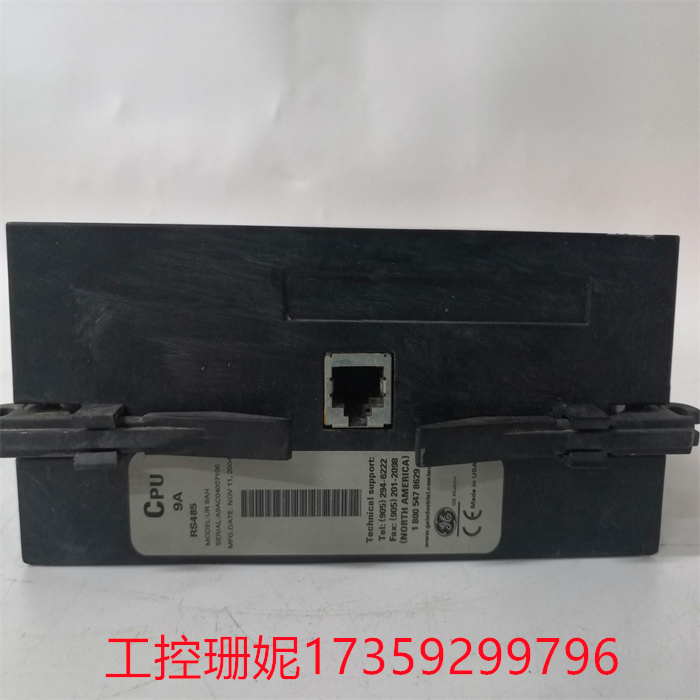

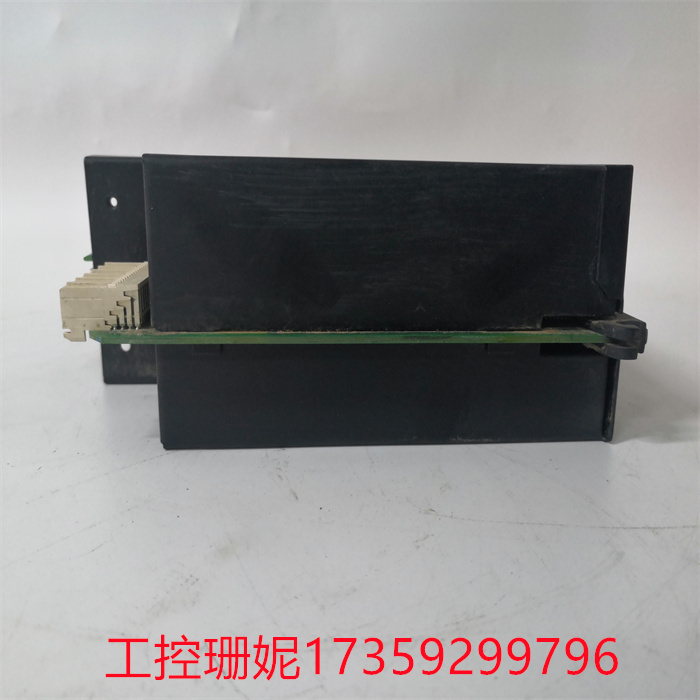

UR9AH GE 通用电气 Multilin CPU 用于 UR 系列通用继电器

UR9AH GE 通用电气 Multilin CPU 用于 UR 系列通用继电器

产品细节

如果UR9AH没有从编程器中存储配置,UR9AH会在上电时自动创建自己的配置。为了创建自动配置,CPU 从每个模块和以太网接口读取配置数据。这包括以太网接口的高级用户参数文件。

当UR9AH中存在自动配置时,可以从站管理器编辑一些以太网配置参数。这会更改存储在以太网接口本身中的参数。如果PLC重新上电或清除，则CPU 将从以太网接口中检索编辑的配置。配置完成并存储到PLC后,由UR9AH 将其保存在内存中。配置可以保存到闪存中并从闪存中检索,它在断电和备用电池的情况下提供了配置数据的几乎永久备份。

每次CPUE05上电或更改或清除其配置时,UR9AH都会将以太网配置数据传送回以太网接口。CPUE05的以太网接口部分将其配置数据保存在电池供电的内存中。如果CPU电池备份丢失且配置未保存到Flash,则以太网接口丢失其备份配置数据。

Product details

If UR9AH does not store the configuration from the programmer,UR9AH automatically creates its own configuration when it is powered on. To create automatic configurations, the CPU reads configuration data from each module and Ethernet interface. This includes advanced user parameter files for Ethernet interfaces.

When automatic configuration exists in UR9AH, some Ethernet configuration parameters can be edited from the station manager. This changes the parameters stored in the Ethernet interface itself. If the PLC is repowered or cleared, the CPU retrieves the edited configuration from the Ethernet interface. After the configuration is completed and stored in the PLC, UR9AH saves it in memory. The configuration can be saved to and retrieved from flash memory, which provides an almost permanent backup of the configuration data in case of power outage and battery backup.

Each time CPUE05 powers on or changes or clears its configuration,UR9AH transfers Ethernet configuration data back to the Ethernet interface. The Ethernet interface portion of the CPUE05 stores its configuration data in battery-powered memory. If the CPU battery backup is lost and the configuration is not saved to Flash, the Ethernet interface loses its backup configuration data.
