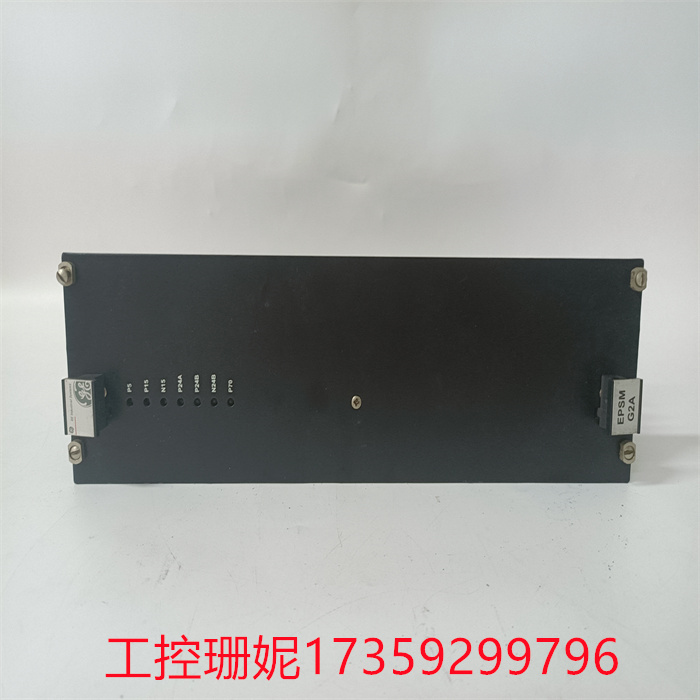

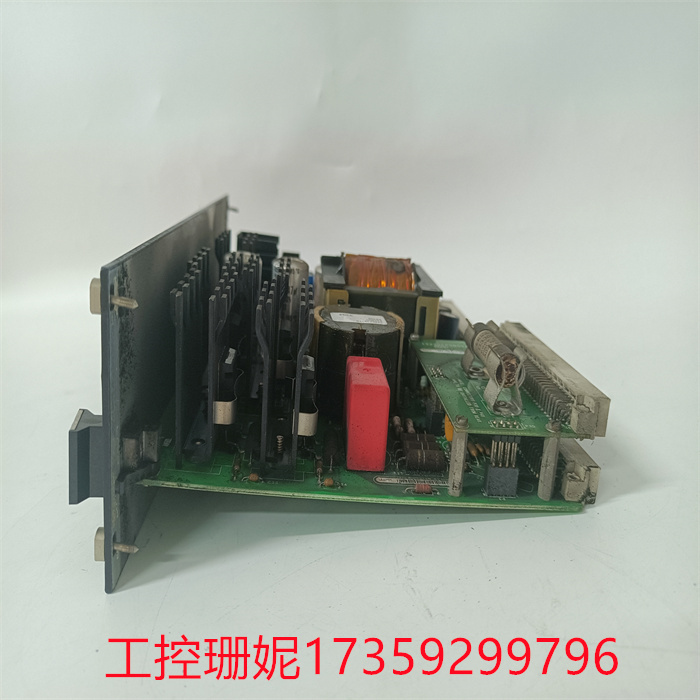

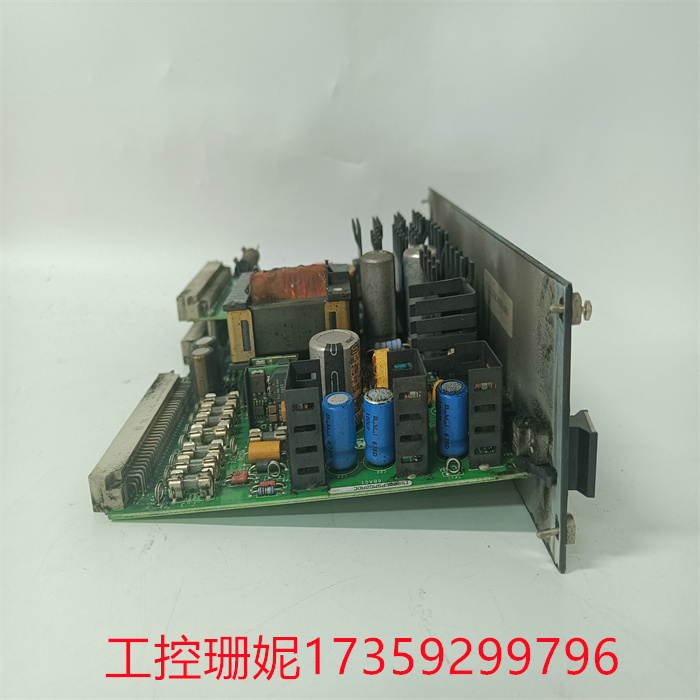

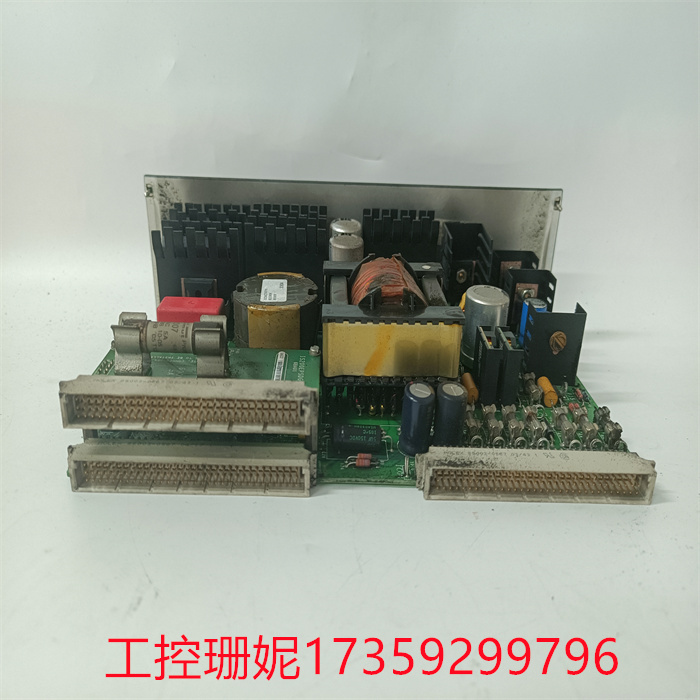

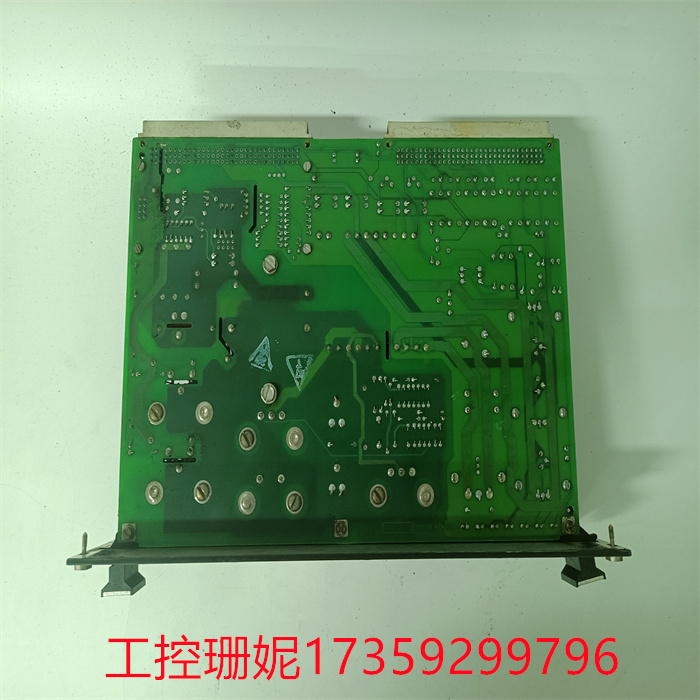

IS200EPSMG2AED是GE公司为Mark VI系统开发的激励器电源模块。MKVI是通用电气公司为燃气和蒸汽轮机管理创造的Speedtronic系列的最后一个。虽然自1969年以来，Speedtronic系列一直用于涡轮机管理，但Mark VI比那些早期系统要先进得多，它使用Windows PC作为HMI或操作员界面。该操作界面包括全彩图形(CIMPLICITY)和以太网功能。

IS200EPSMG2AED是Mark VI系统中使用的两块EPSM板之一。第一组模块(EPSMG1)用于晶闸管系统。IS200EPSMG2AED板用于调节器控制。这两块板很相似，但是IS200EPSMG2AED包括一个EPSD子板。

IS200EPSMG2AED旨在将直流链路电压转换为EX2100调节器控制所需的不同电压。IS200EPSMG2AED提供+5v直流电压、+/-15v直流电压和+24v直流电压。在单工系统中，一块IS200EPSMG2AED板安装在ERBP背板上。在冗余系统中，两块板安装在底板上(ERBP (M1)和ERRB(M2)

The IS200EPSMG2AED is a driver power module developed by GE for the Mark VI system. The MKVI is the last of the Speedtronic series created by General Electric for gas and steam turbine management. While the Speedtronic series has been used for turbine management since 1969, the Mark VI is much more advanced than those earlier systems, using a Windows PC as an HMI or operator interface. The operating interface includes full-color graphics (CIMPLICITY) and Ethernet capabilities.

The IS200EPSMG2AED is one of two EPSM boards used in the Mark VI system. The first set of modules (EPSMG1) is used for thyristor systems. The IS200EPSMG2AED board is used for regulator control. The two boards are similar, but the IS200EPSMG2AED includes an EPSD child board.

The IS200EPSMG2AED is designed to convert the DC link voltage to the different voltages required for EX2100 regulator control. The IS200EPSMG2AED offers +5v DC voltage, +/-15v DC voltage and +24v DC voltage. In a simplex system, an IS200EPSMG2AED board is mounted on the ERBP backplane. In redundant systems, two boards are mounted on the base plate (ERBP (M1) and ERRB(M2)).
