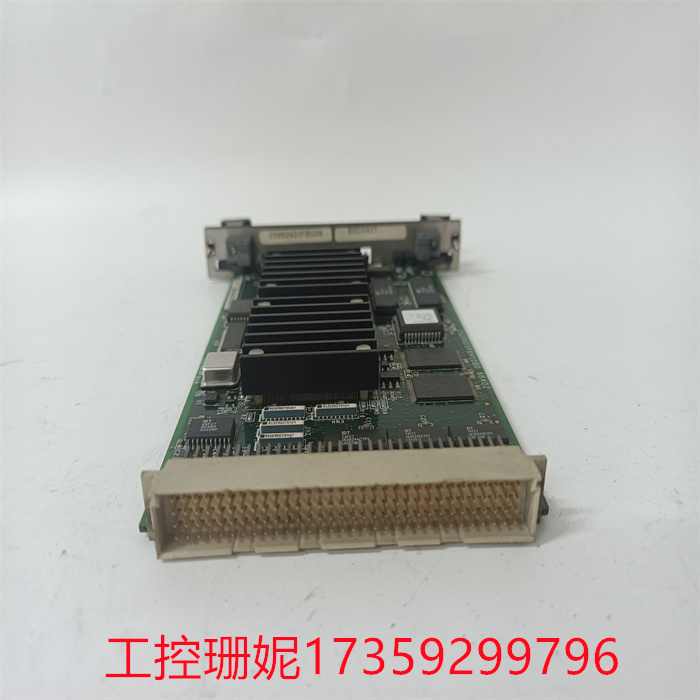

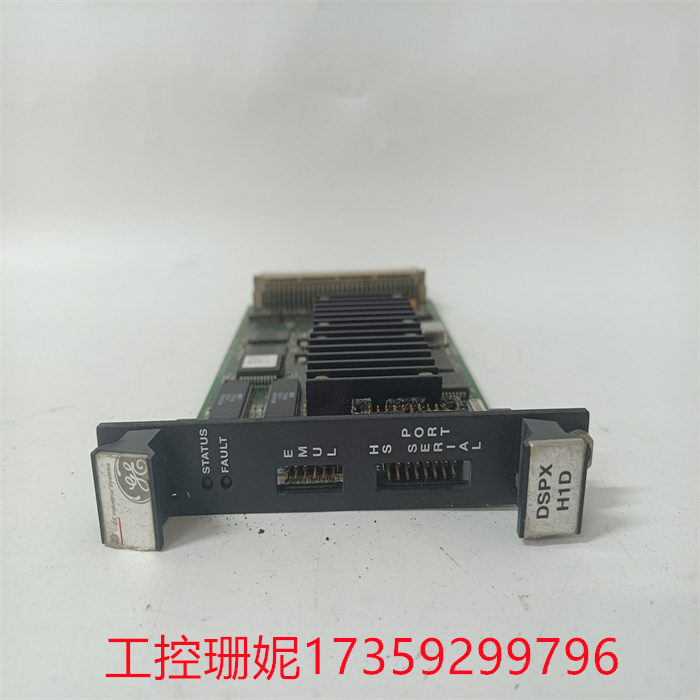

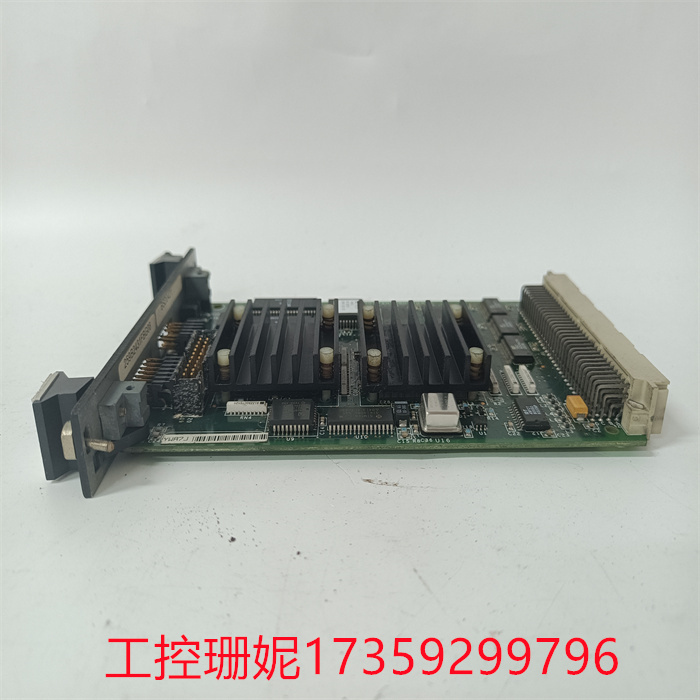

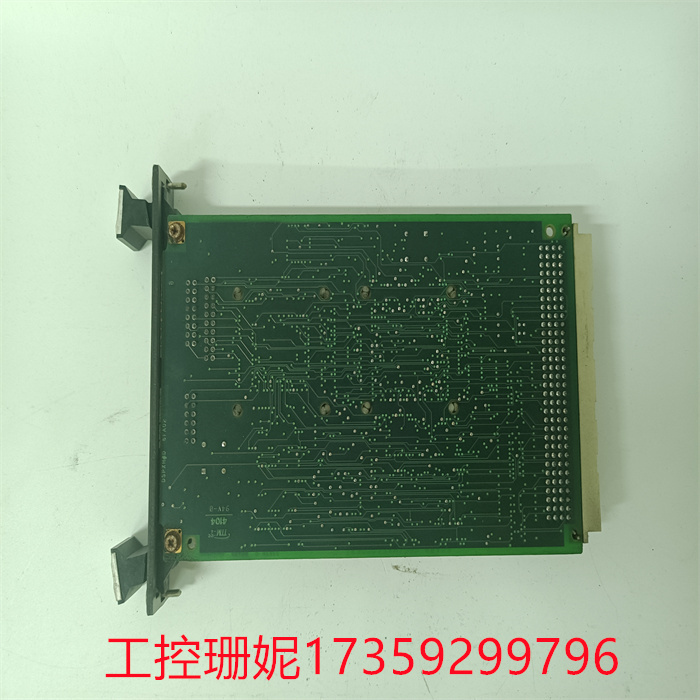

GE燃机卡IS200DSPXH1DBD电源模块通用电气

GE燃机卡IS200DSPXH1DBD电源模块通用电气

GE Fanuc Versamax系列的8通道15位输入模块。该模拟输入模块提供了一个8个差分电压输入的接口，并通过背板电源供电。该模块的之处在于外部电源操作。

但是，用户收发器的电源具有外部电源。否则，该模块具有一组八个差分输入通道，具有15位转换器分辨率和软件可配置选择。IC2ALG261的特定特性包括25VAC连续输入逻辑，LED指示灯和5V输出，背板电流消耗为2mA。

诊断将提醒用户电源丢失；但是，如果发生严重的RF干扰，精度可能会降+/- 1。在安装之前，应仔细检查设备是否损坏。如果发现损坏，请换系统以使其正常运行。安装后，如果模块的热未正确完成，则该背板上其他模块的操作可能会中断。

对于模拟通道连接，建议使用双绞线，如果可能，该电缆应在源设备上接地。如果源设备不是接地选项，则使用I / O模块接地。

GE Fanuc Versamax series of 8-channel 15-bit input modules. The analog input module provides an interface for eight differential voltage inputs and is powered by a backplane power supply. The module lies in external power operation.

However, the power supply for the user transceiver has an external power supply. Otherwise, the module has a set of eight differential input channels with 15-bit converter resolution and software configurable options. Specific features of the IC2ALG261 include 25VAC continuous input logic, LED indicator light and 5V output with a backplane current consumption of 2mA.

Diagnostics will alert the user to power loss; However, if severe RF interference occurs, the accuracy may decrease by +/ -1. Before installation, check the equipment carefully for damage. If you find damage, replace the system to make it work properly. After installation, if the heating of the module is not completed correctly, the operation of other modules on the backplane may be interrupted.

For analog channel connections, a twisted pair is recommended, and if possible, the cable should be grounded on the source device. If the source device is not a grounding option, use the I/O module for grounding.
