IS200DSPXH1DBC 美国GE模块卡件 DCS系统备件

IS200DSPXH1DBC 美国GE模块卡件 DCS系统备件

IS20ODSPXH1DBC是MarkVI系统中使用的板组件。Mark VI是GE为控制工业燃气/蒸汽轮机系统而创建的Speedtronic系统之一。

Speedtronic系列始于20世纪60年代的MKI，经过几次新的迭代改进并持续到2000年代，新的是Mark Ve。Mark VI包括一个中央控制模块，该模块带有在Windows平台上构建的连接操作员界面。操作员界面允许从单个访问点轻松访问系统数据和报警状态。

IS200DSPXH1DBC用作数字信号处理器控制板。由于有多种不同版本的DSPX板可用，请确保您为您的系统订购了该板的正确迭代。

IS20ODSPXH1DBC包括50MHz数字信号处理器、集成电路(ASIC）和标准存储器组件。ASIC提供定制逻辑功能，并连接到嵌入到电路板的前面板中的两个LED。这些LED (—个红色和一个绿色）有助于报警板故障。

IS20ODSPXH1DBC具有多个/O连接器。这包括一个背板连接器(P1)和一个位于板前部附近的垂直引脚连接器(P7)。此外，板面板上安装有两个连接器。这些端口用作工程监控端口(P6）和DSP仿真器端口(P5)。

The IS20ODSPXH1DBC is a board component used in the MarkVI system. The Mark VI is one of the Speedtronic systems created by GE to control industrial gas/steam turbine systems.

The Speedtronic series began with MKI in the 1960s, improved with several new iterations and continued into the 2000s, the new being Mark Ve. Mark VI includes a central control module with a connected operator interface built on the Windows platform. The operator interface allows easy access to system data and alarm status from a single access point.

The IS200DSPXH1DBC is used as a digital signal processor control board. Since there are many different versions of the DSPX board available, make sure you order the correct iteration of the board for your system.

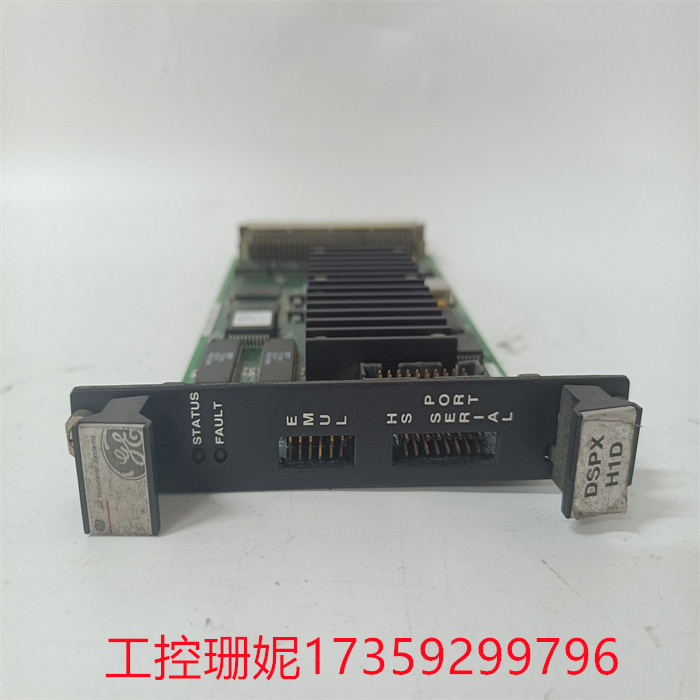

The IS20ODSPXH1DBC includes a 50MHz digital signal processor, integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel of the board. These leds (one red and one green) help alert the board to failure.

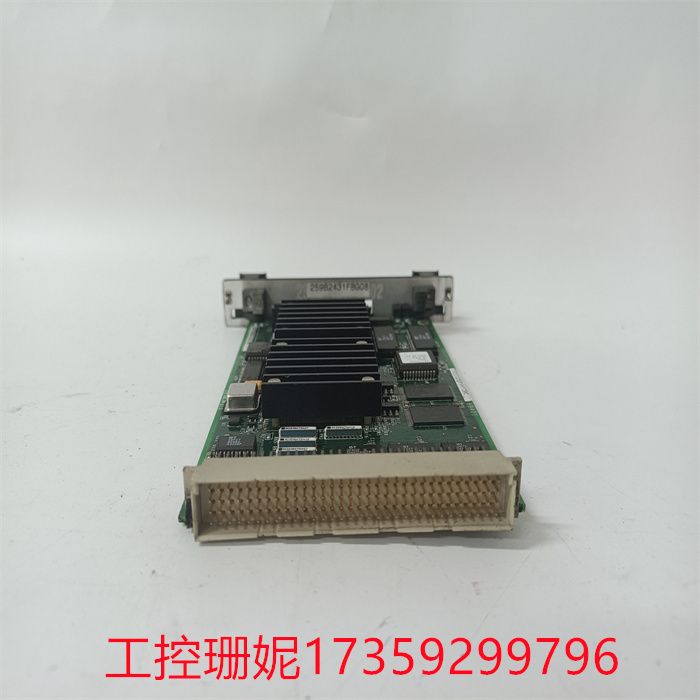

The IS20ODSPXH1DBC has multiple /O connectors. This includes a backplane connector (P1) and a vertical pin connector (P7) located near the front of the board. In addition, two connectors are mounted on the board face plate. These ports are used as engineering monitoring ports (P6) and DSP emulator ports (P5).
