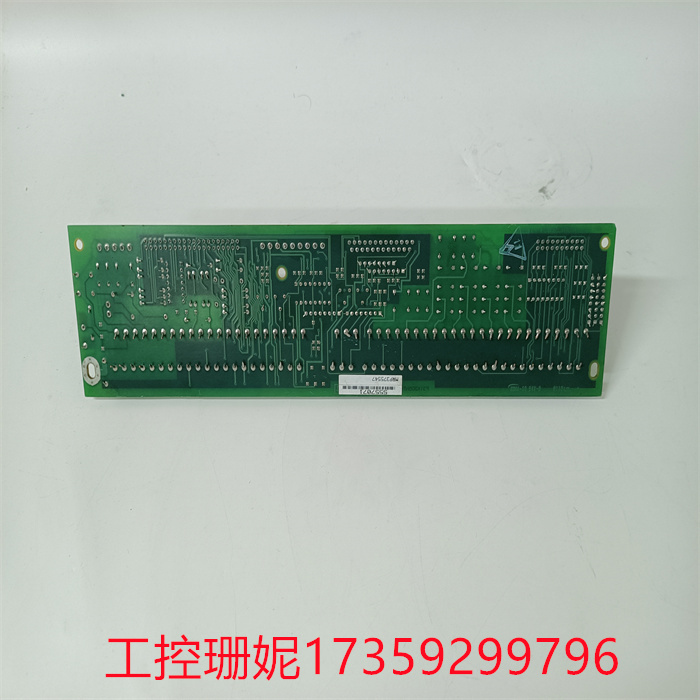

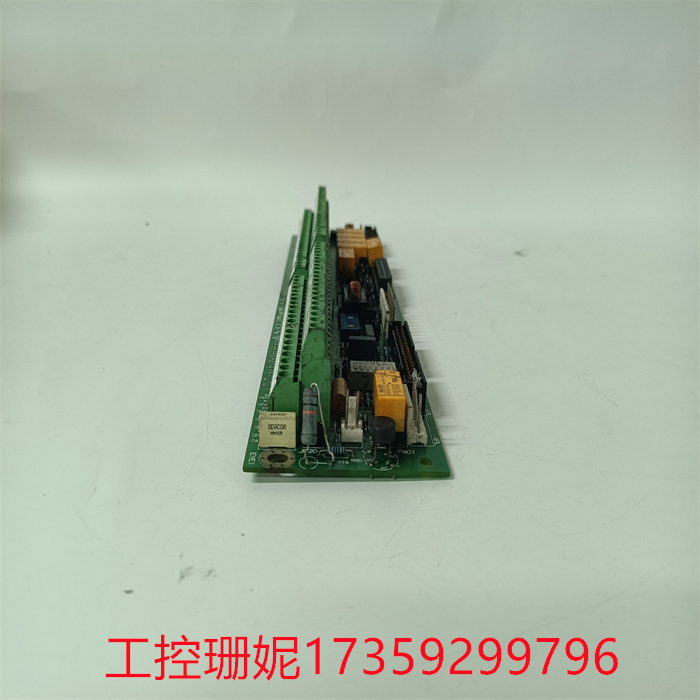

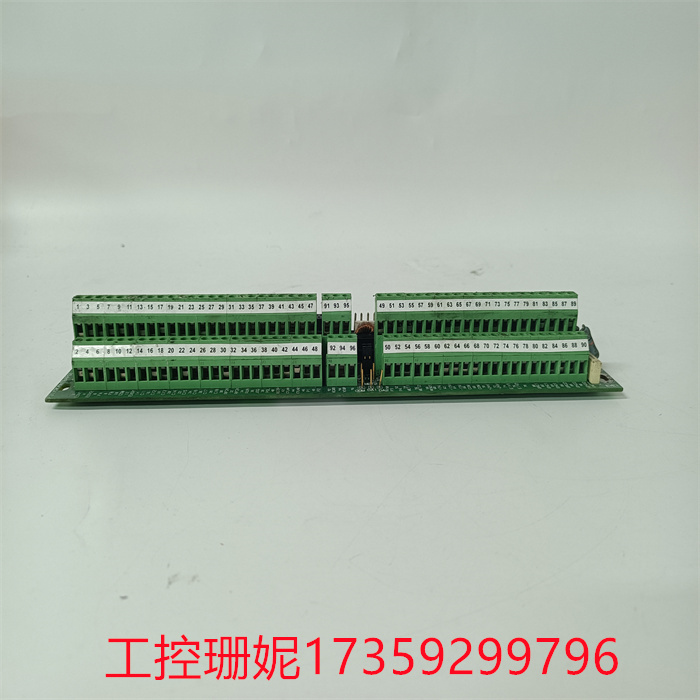

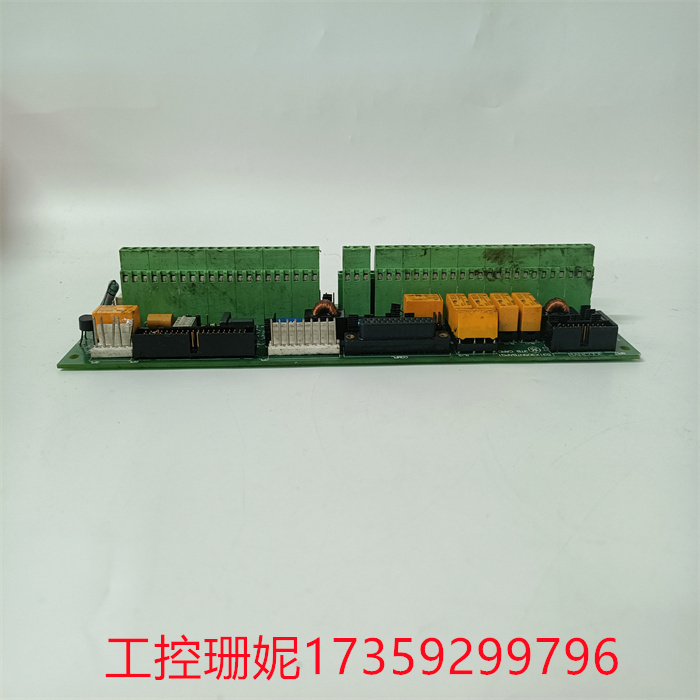

531X305NTBAPG1 F31X305NTBAPG1 MRP375547工控PLC模块

531X305NTBAPG1 F31X305NTBAPG1 MRP375547工控PLC模块

通用电气公司将531X307LTBAJG1设计为局域网(LAN)端子板。它位于531X系列替换板。

GE系列的驱动器和激励器可在其机柜中接受此卡。当安装卡时，提供外部设备和控制驱动器之间的接口系统。外围设备，如联锁装置、按钮和指示灯可以使用该板作为接口。

安装531X307LTBAJG1板时，局域网信号通过接口平台分配。八个可配置的控制输入插头在安装板时提供给驱动器。额定输入电压范围为2至240 V交流电源和DC电源都可以被委员会接受。发送到电路板的输入电压转换为24伏直流逻辑信号被控制委员会接受。

电路板产生的信号很容易通过局域网终端、驱动控制板和NTB端子板。董事会的七个集成控制输出由以下部分组成低电流和低电压C型继电器触点连接器。

Ge designed the 531X307LTBAJG1 as a local Area Network (LAN) terminal board. It is located on the 531X Series replacement board.

GE series drives and exciters can accept this card in their cabinets. When installing the card, an interface system is provided between the external device and the control driver. Peripheral devices such as interlocks, buttons, and indicators can use the board as an interface.

When the 531X307LTBAJG1 board is installed, the LAN signal is distributed through the interface platform. Eight configurable control input plugs are provided to the driver when mounting the board. Both AC and DC power supplies with rated input voltage ranges from 2 to 240 V are acceptable to the Commission. The input voltage sent to the board is converted into a 24-volt DC logic signal accepted by the control board.

The signals generated by the circuit board are easily passed through LAN terminals, driver control boards, and NTB terminal boards. The board's seven integrated control outputs consist of the following parts: low current and low voltage Type C relay contact connectors.
