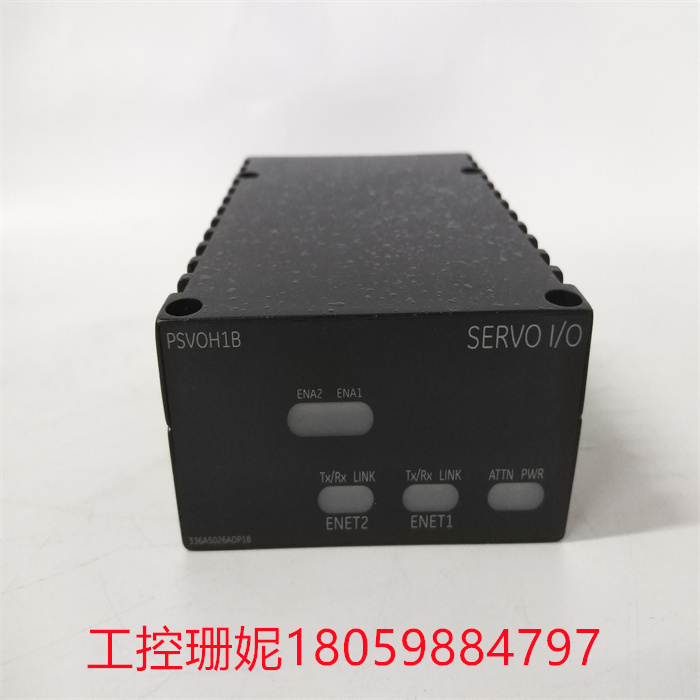

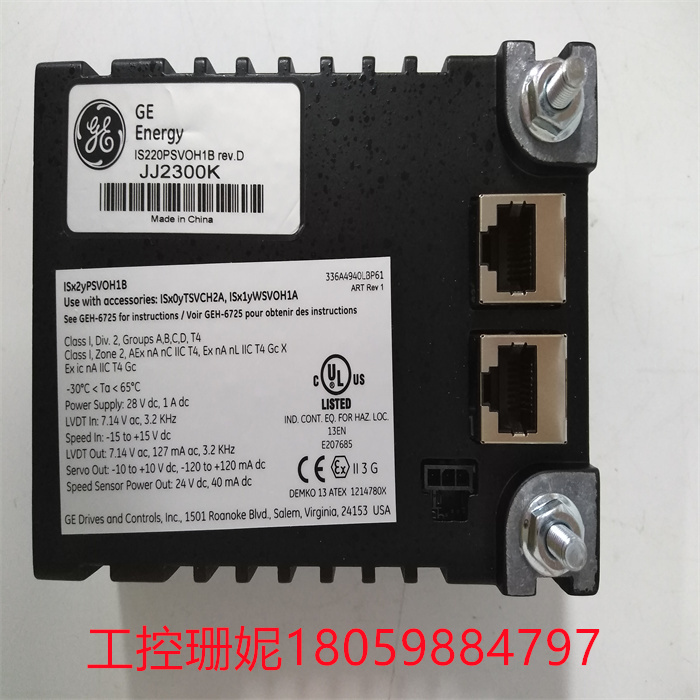

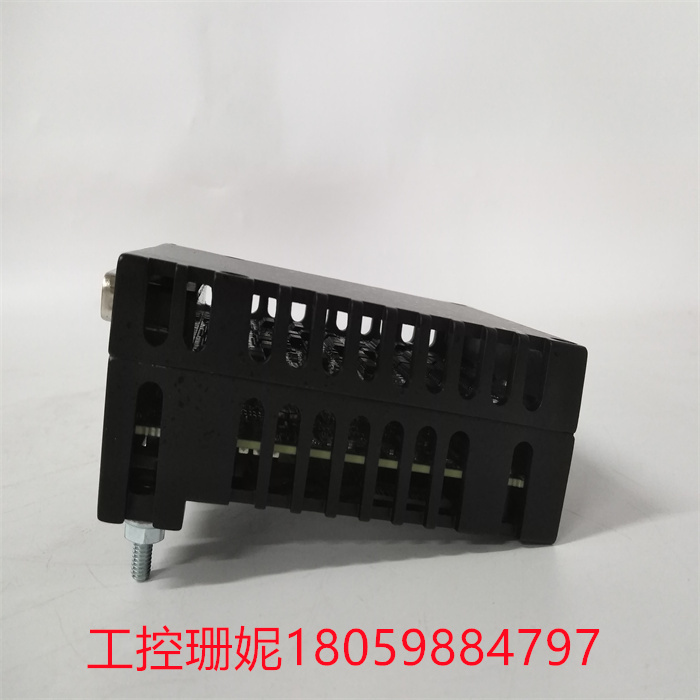

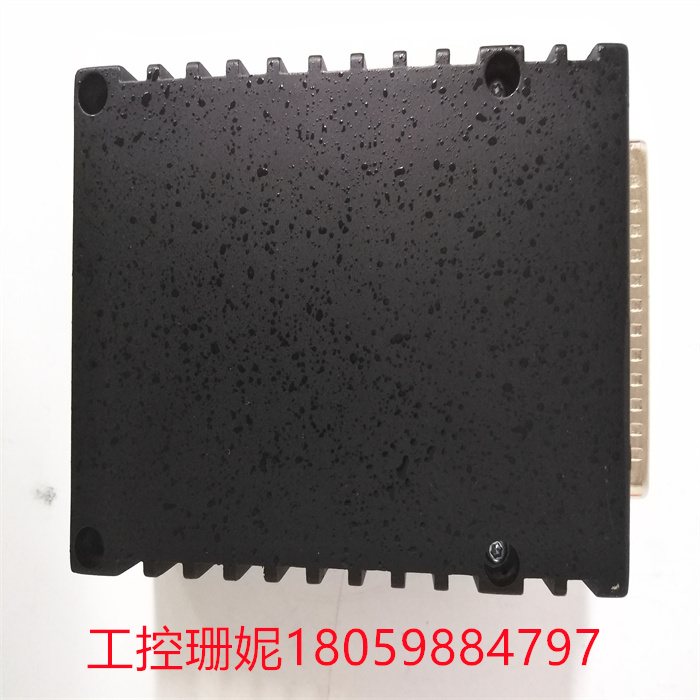

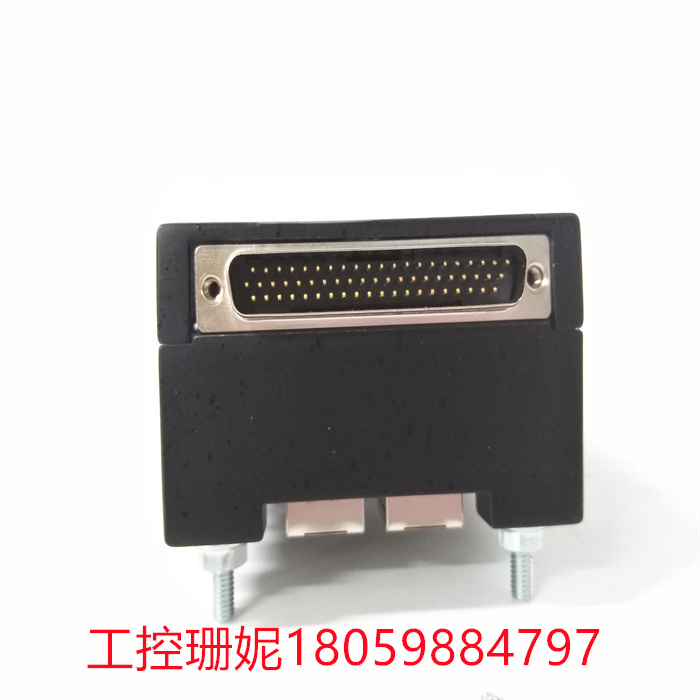

IS220PSVOH1B 输入输出包美国GE通用电气模块

IS220PSVOH1B 输入输出包美国GE通用电气模块

IS200TSVOH1B 是 AX Control 提供的几种 TSVO 端接板之一。通用电气的这些伺服阀端接板用于公司的Mark VI系统。Mark VI是用于管理工业燃气和蒸汽轮机系统的更先进的Speedtronic系统之一;它已经使用了20多年。

IS200TSVOH1B使用屏障式接线端子。 它们安装在一个长板侧。该板能够通过这两个 I/O 通道接受来自两个伺服电流源的输入。每个接线端子最多允许三个LVDT或LVDR反馈传感器附件（电路板总共六个）。

这些传感器可以是高选、中选或低选。脉冲速率输入在 2-14 kHz 之间。如果您需要具有这些设置但使用盒式端子的电路板，请参阅我们的 DSVO 板列表。

IS200TSVOH1B的重量仅为2.00磅。由于增加了内部和外部装箱和衬垫以及防静电包装，该板在准备发货后会更重。我们建议在拆箱任何静电敏感组件时使用接地带。

The IS200TSVOH1B is one of several TSVO end boards available from AX Control. These General Electric servo valve end plates are used in the company's Mark VI system. The Mark VI is one of the more advanced Speedtronic systems for managing industrial gas and steam turbine systems; It has been in use for more than 20 years.

The IS200TSVOH1B uses the block terminal. They are mounted on the side of a longboard. The board is capable of accepting input from two servo current sources through these two I/O channels. Each terminal allows up to three LVDT or LVDR feedback sensor attachments (six in total on the circuit board).

These sensors can be high-select, medium-select, or low-select. Pulse rate input is between 2-14 kHz. If you need a board that has these Settings but uses box terminals, see our list of DSVO boards.

The IS200TSVOH1B weighs just 2.00 pounds. Due to the addition of internal and external boxes and padding and anti-static packaging, the board will be heavier when ready for shipment. We recommend using ground strips when unpacking any electrostatic sensitive components.
