IC697CPM790 是 GE FANUC 制造的 64 MHz CPU，具有使用 32 位浮点和微处理器 80486DX2 的计算能力。该 CPU 采用单槽编程软件，可与 Windows 或MS-DOS 配合执行配置和编程。

IC697CPM790 包括多达 12K 的离散输入和输出（仅限混合单工模式）。它具有专用于操作系统固件的闪存，允许通过PC和模块串行端口之间的连接进行固件更新。 用户通过编程软件或使用运行/停止三位开关的操作模式控制模块操作。内存保护密钥或软件密码可锁定配置和程序数据。

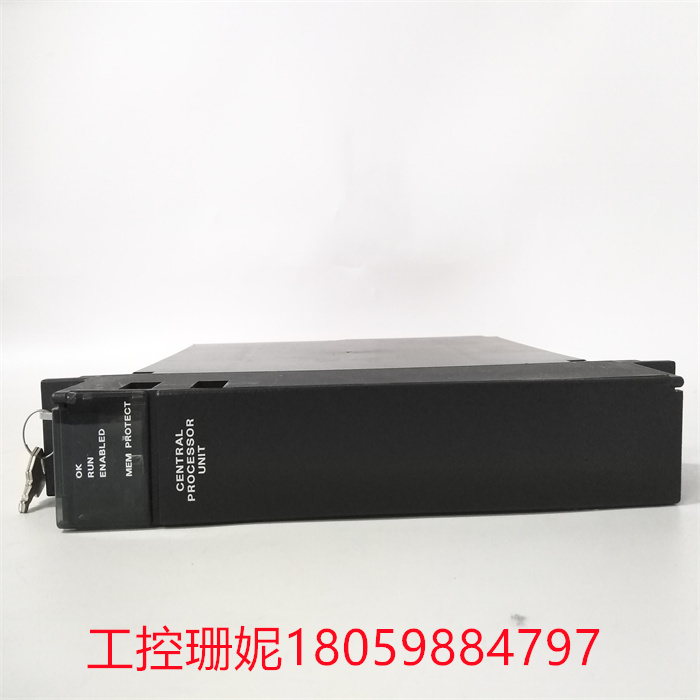

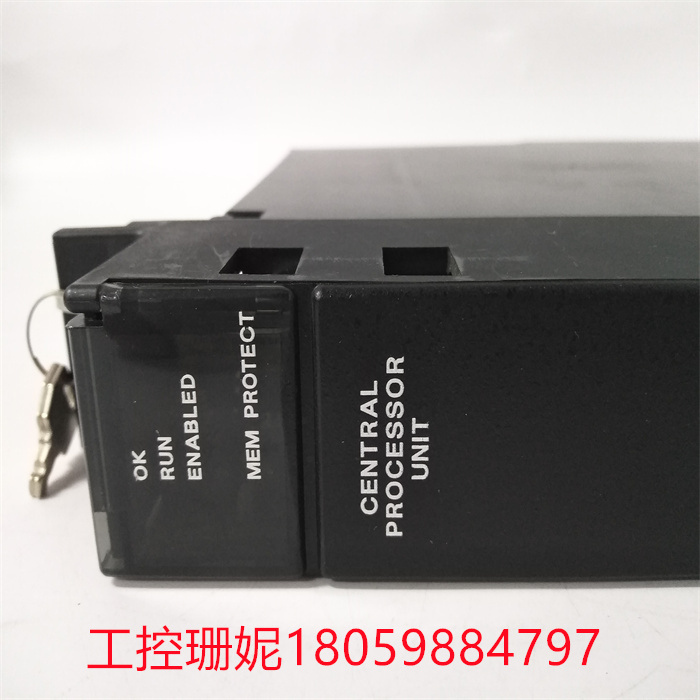

IC697CPM790 有四个绿色 LED，用于指示 CPU 的状态。空气冷却需要风扇组件。用户可以将总线发送模块 IC697BEM713 连接到编程器以实现并行接口。一个 15 针的 D 型连接器连接串行端口，兼容 RS-485。在实际操作和上电期间，CPU 会验证机架配置，同时其警报功能会报告编程和/或实际配置中的任何偏差。IC697CPM790 具有锂电池，可维持日历时钟操作、数据存储器和程序存储器。

The IC697CPM790 is a 64 MHz CPU manufactured by GE FANUC with computing power using 32-bit floating point and a microprocessor 80486DX2. The CPU uses single-slot programming software to perform configuration and programming in conjunction with Windows or MS-DOS.

The IC697CPM790 includes discrete inputs and outputs of up to 12K (mixed simplex mode only). It has flash memory dedicated to the operating system firmware, allowing firmware updates via a connection between the PC and the module serial port. The user controls the operation of the module by programming software or using the operating mode of the run/stop three-position switch. A memory protection key or software password locks configuration and program data.

The IC697CPM790 has four green leds that indicate the status of the CPU. Air cooling requires fan assemblies. The user can connect the bus sending module IC697BEM713 to the programmer to implement a parallel interface. A 15-pin Type D connector connects the serial port and is compatible with RS-485. During actual operation and power-on, the CPU verifies the rack configuration while its alarm function reports any deviations in the programming and/or actual configuration. The IC697CPM790 has a lithium battery that maintains calendar clock operation, data storage, and program storage.
