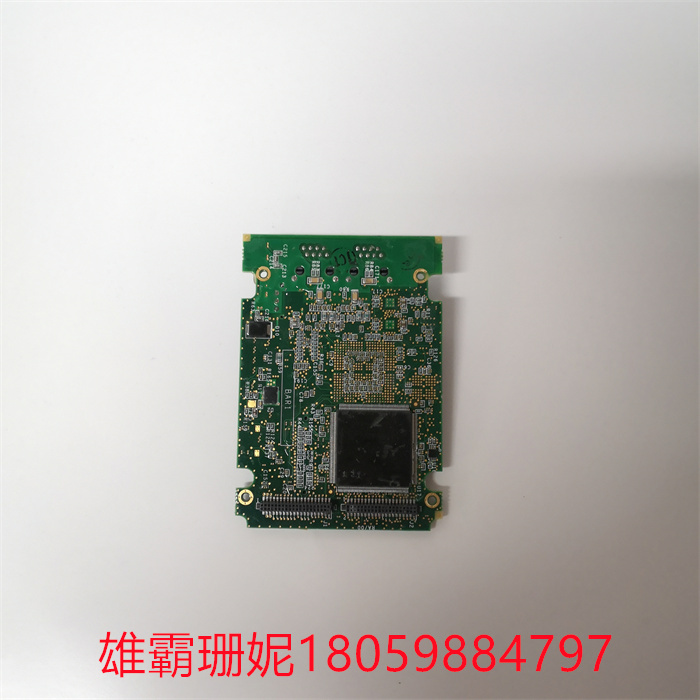

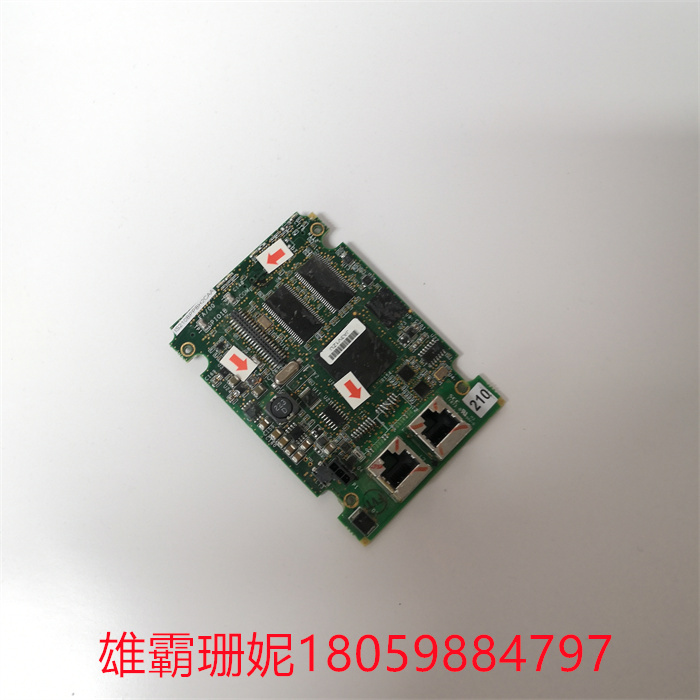

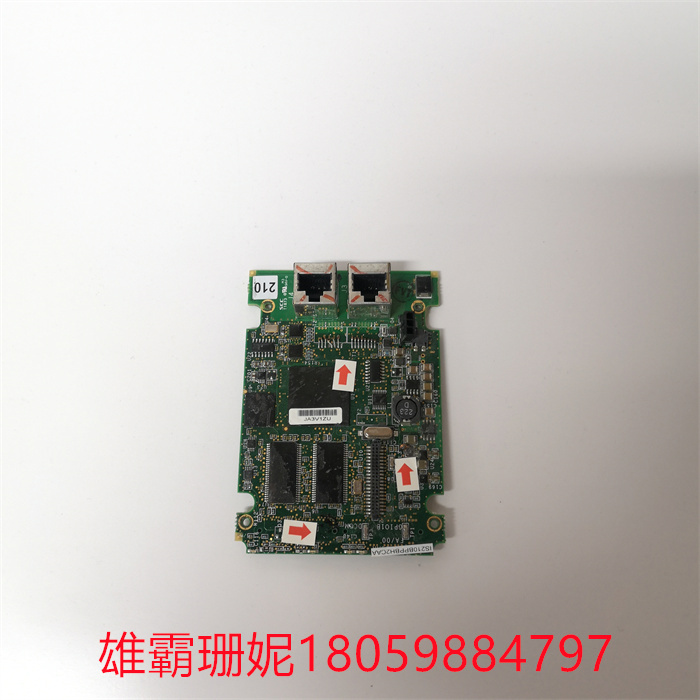

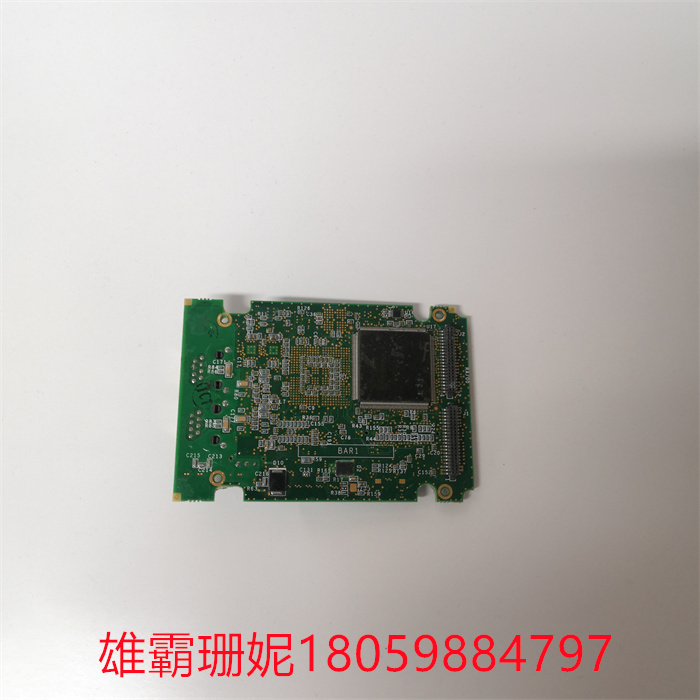

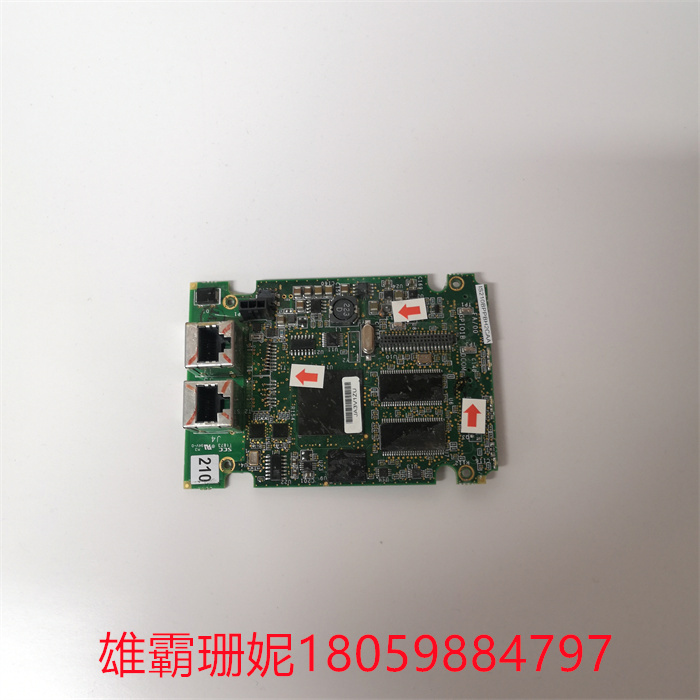

GE/通用电气 IS210BPPBH2CAA燃机卡系列

GE/通用电气 IS210BPPBH2CAA燃机卡系列

GE Fanuc / VMIC VMIACC-5595 Gb/s反射存储器集线器组件是一个托管集线器，旨在与GE Fanuc / VMIC 5565系列反射存储器实时网络产品一起运行。反射内存集线器可以在检测到信号丢失或有效同步模式丢失时自动绕过端口，从而允许网络中的其他节点保持运行。

由于光端口采用SFP (small form factor pluggable)收发器，因此只需要填充所需的端口。VMIACC-5595 SFP光模块可以是多模(短距离)或单模(长距离)光模块的组合。

该特性允许在小型网络中节省成本并优化系统。对于较大的网络，几个VMIACC-5595组件可以级联，允许多256个节点的托管集线器阵列。每个端口再生串行光信号，消除了插入损耗和电缆衰减的问题。信号再生也减少了抖动。

RS232端口提供了通过简单的PC串口监控和控制反射存储器网络的能力。以太网端口功能允许用户通过局域网(LAN)或Web浏览器远距离监视和控制集线器IS220UCSAH1A 在 QNX 操作系统上运行。它有一个 Freescale 8349、667 MHz 处理器。该板使用的电源额定值为 18-36 V dc，12 瓦。该板可在 0 到 65 摄氏度的温度范围内使用，并且不需要风扇进行冷却，即使在 大额定温度下也是如此。该板可用于 NFPA 1 类，Div。2个应用程序。

The GE Fanuc/VMIC VMIAC-5595 Gb/s Reflective Memory hub assembly is a hosted hub designed to operate with the GE Fanuc/VMIC 5565 series Reflective Memory real-time networking products. Reflective memory hubs can automatically bypass ports when they detect a loss of signal or a loss of effective synchronization mode, allowing other nodes in the network to remain operational.

Since optical ports use small form factor pluggable (SFP) transceivers, only the required ports need to be filled. The VMIAC-5595 SFP optical module can be a combination of multi-mode (short distance) or single-mode (long distance) optical modules.

This feature allows for cost savings and system optimization in small networks. For larger networks, several VMIAC-5595 components can be cascaded to allow an array of more than 256 nodes of managed hubs. Each port regenerates the serial optical signal, eliminating insertion losses and cable attenuation. Signal regeneration also reduces jitter.

The RS232 port provides the ability to monitor and control reflective memory networks via a simple PC serial port. The Ethernet port feature allows users to remotely monitor and control the hub IS220UCSAH1A running on the QNX operating system via a local area network (LAN) or Web browser. It has a Freescale 8349, 667 MHz processor. The board uses a power supply rated 18-36 V dc, 12 watts. The board can be used in a temperature range of 0 to 65 degrees Celsius and does not require a fan for cooling, even at large temperature ratings. The board is available for NFPA 1 class, Div. 2 applications.
