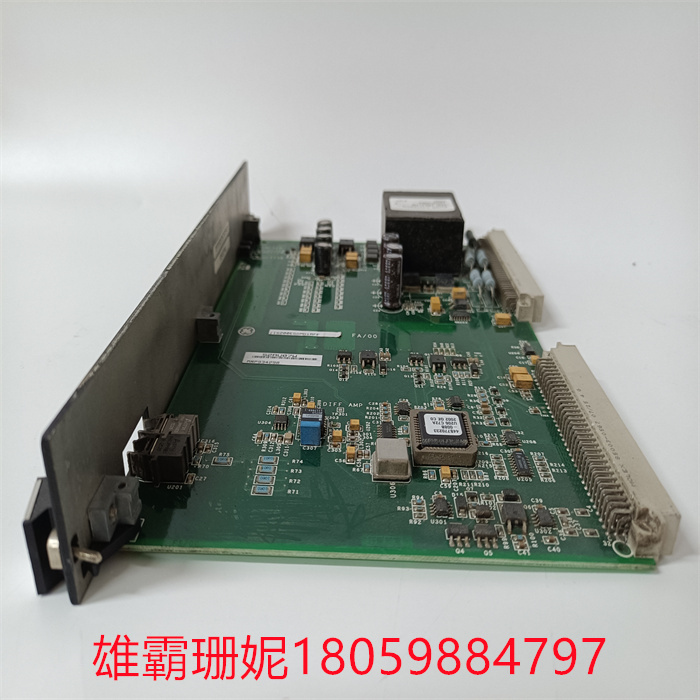

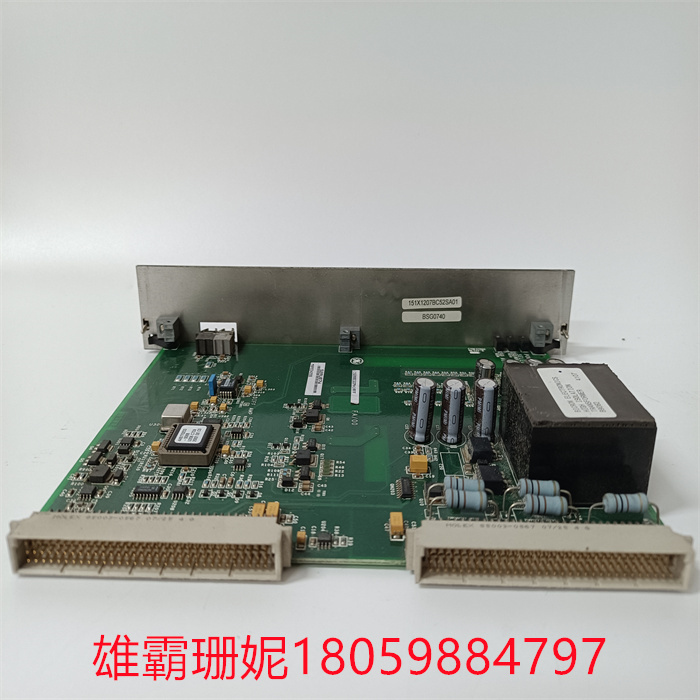

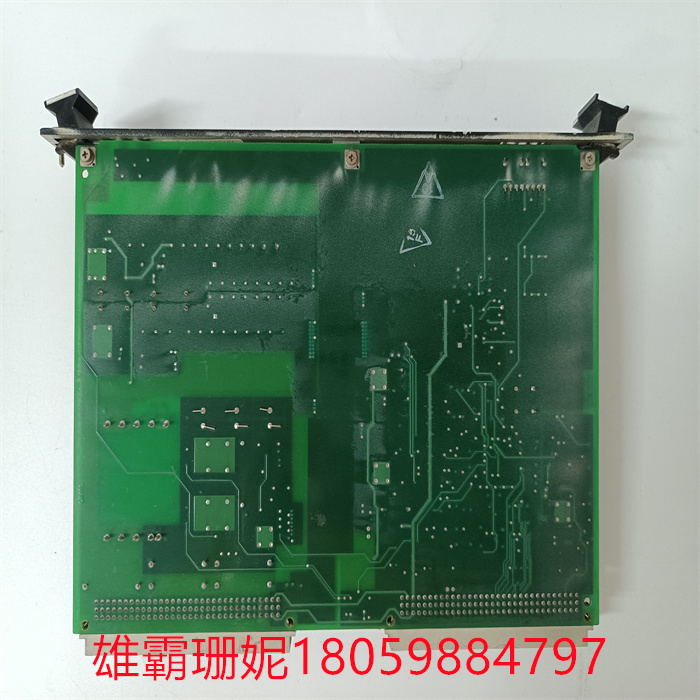

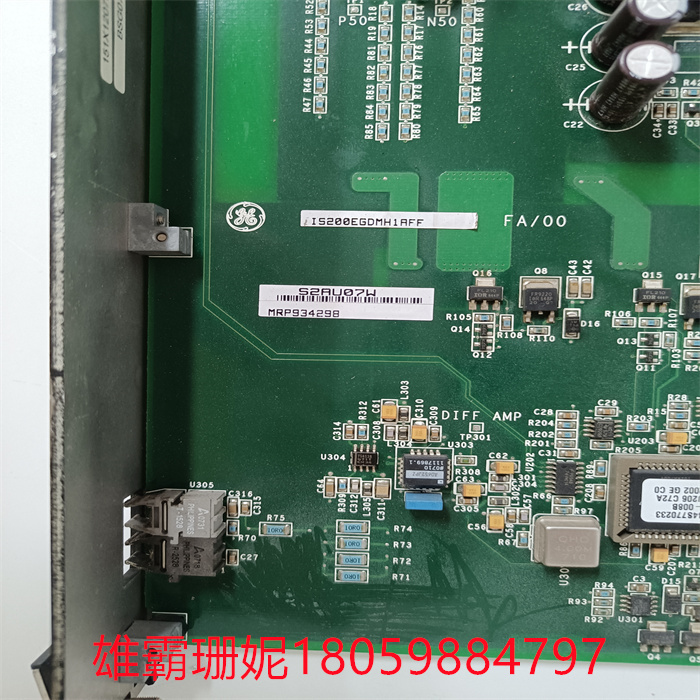

GE IS200EGDMH1AFF 12通道、13位电压模拟输出模块

GE IS200EGDMH1AFF 12通道、13位电压模拟输出模块

IS200EGDMH1AFF：DP从属服务目前可确保在5136- PFB-VME卡上的16位数据完整性。如果需要，主机应用程序可以确保更广泛的数据完整性。必须实现一个自定义算法来支持整个DP从属数据的一致性。

主机通过在配置/状态寄存器slvCntCfg中设置位，来控制和设置板卡作为DP从机的操作选项。主机在使板卡联机之前，必须设置配置DP从属操作的位。主机还在此寄存器中设置位，以在板卡联机时执行DP从属操作。

IS200EGDMH1AFF：主机在在线时设置位0，SLV_CTL_DIAG_UPD，以请求从主服务器读取诊断。设置此位会使卡将其下一个回复作为数据高优先级数据包发送给主卡。当主看到高优先级包时，它从从读取诊断状态。

IS200EGDMH1AFF: DP slave service currently ensures 16-bit data integrity on 5136-PFB-VME cards. Host applications can ensure broader data integrity if needed. A custom algorithm must be implemented to support consistency across the DP dependent data.

The host controls and sets the board as an operating option for the DP slave by setting bits in the configuration/status register slvCntCfg. The host must set the bit for configuring DP slave operations before bringing the board online. The host also sets bits in this register to perform DP slave operations when the board is online.

IS200EGDMH1AFF: The host sets bit 0, SLV_CTL_DIAG_UPD when online, to request to read the diagnosis from the primary server. Setting this bit causes the card to send its next reply to the main card as a data high-priority packet. When the master sees a high-priority package, it reads the diagnostic status from the secondary.
