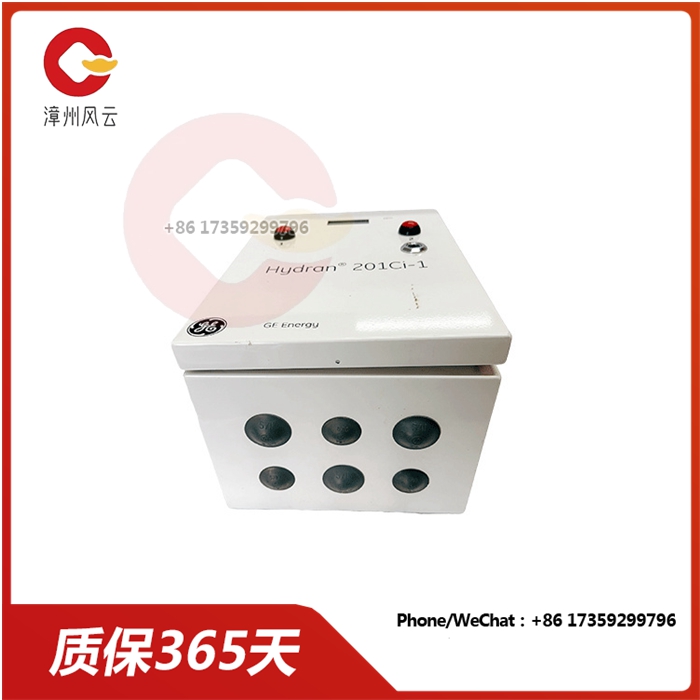

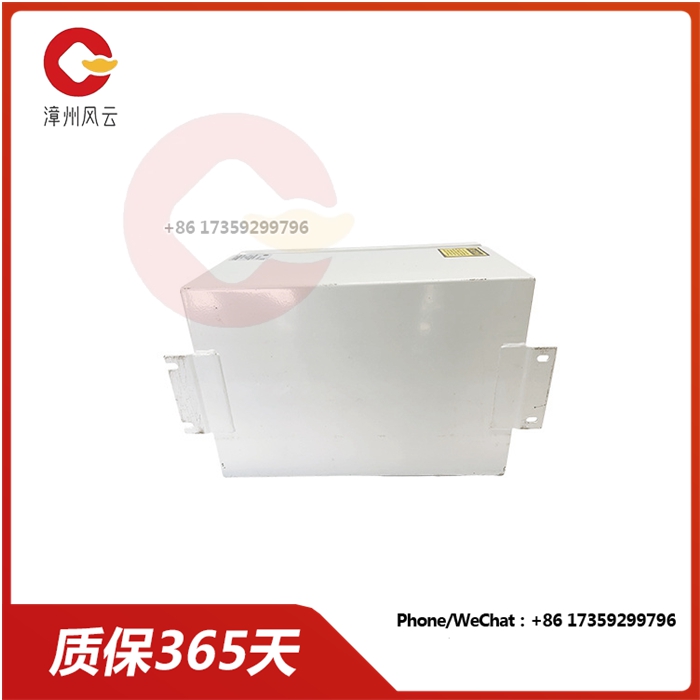

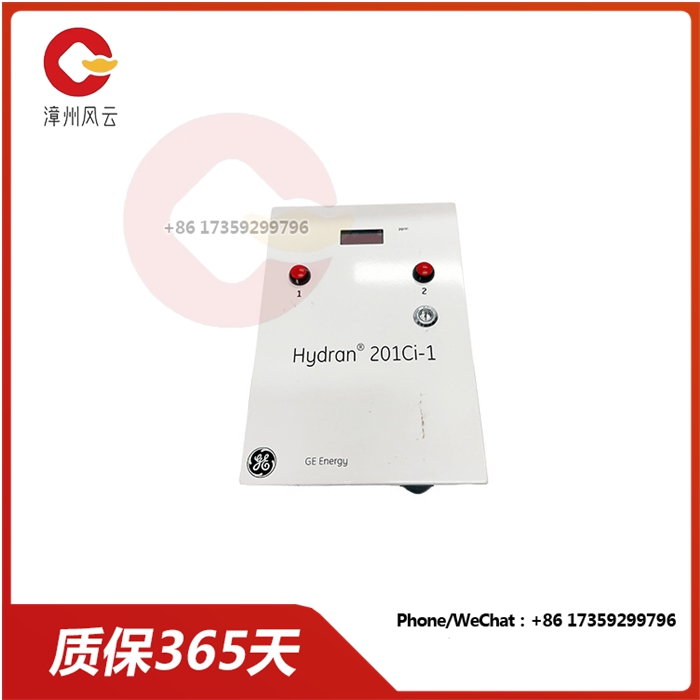

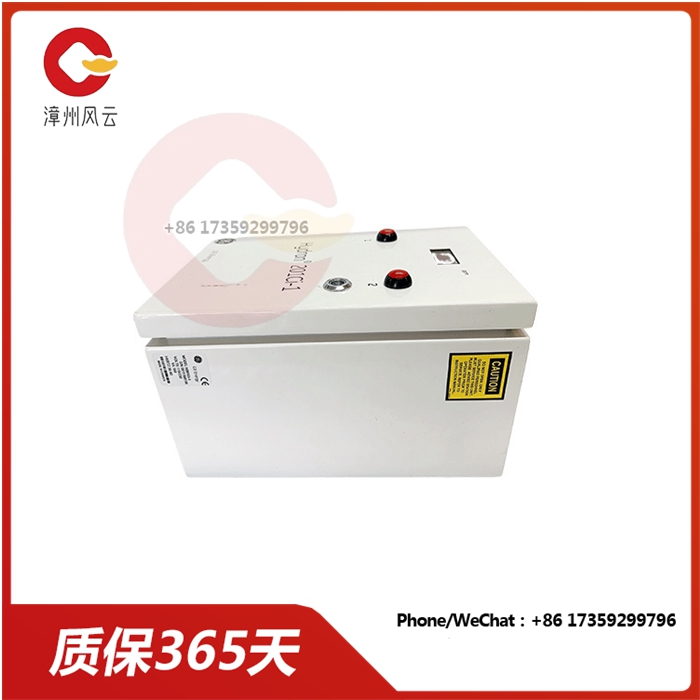

H201C1-1 变压器监测控制单元

特点

实时监测:持续监测变压器油中溶解气体的含量，并根据IEEE C57.104标准进行分析，评估变压器的绝缘状况。

早期故障预警:通过对监测数据进行分析，可以提前发现变压器可能存在的故障，如过热、局部放电等，从而避免重大故障的发生。

简单易用:安装和操作简单，无需复杂的配置。

可靠性高:采用工业级设计，具有较高的可靠性。

灵活配置:可以根据不同的变压器类型和应用需求进行配置。

产品参数

型号：H201Ci-1

电源：AC电源

输出信号：模拟输出、报警输出

工作温度：-20℃至+60℃

相对湿度：5%至95%无凝露

产品作用与用途

变压器状态监测:实时监测变压器油中溶解气体的含量，评估变压器的绝缘状况。

故障预警:提前发现变压器可能存在的故障，避免重大故障的发生。

延长变压器寿命:通过及早发现和处理故障，延长变压器的使用寿命。

提高系统可靠性:确保电力系统的稳定运行。

应用领域

电力系统:发电厂、变电站、配电系统

工业企业:石油化工、冶金、电力等行业

H201C1-1 变压器监测控制单元

peculiarity

Real-time monitoring: The content of dissolved gases in the transformer oil is continuously monitored and analyzed according to the IEEE C57.104 standard to evaluate the insulation status of the transformer.

Early fault warning: Through the analysis of monitoring data, possible faults of the transformer can be found in advance, such as overheating, partial discharge, etc., so as to avoid major failures.

Easy to use: Easy to install and operate without complex configuration.

High reliability: Industrial grade design, with high reliability.

Flexible configuration: Can be configured according to different transformer types and application requirements.

Product parameter

Model: H201Ci-1

Power supply: AC power

Output signal: analog output, alarm output

Operating temperature: -20℃ to +60℃

Relative humidity: 5% to 95% no condensation

Product function and use

Transformer condition monitoring: real-time monitoring of dissolved gas content in transformer oil, evaluation of transformer insulation status.

Fault warning: Discover the possible faults of the transformer in advance to avoid major failures.

Extend transformer life: Extend the service life of transformers by detecting and dealing with faults early.

Improve system reliability: Ensure the stable operation of the power system.

Application field

Power system: power plants, substations, distribution systems

Industrial enterprises: petrochemical, metallurgy, electric power and other industries
