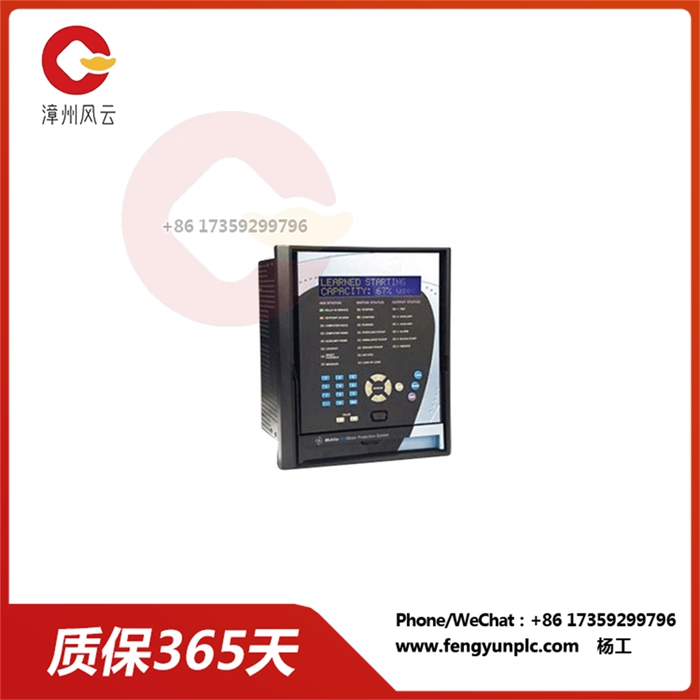

845-E-P5-H5-G5-H-N-N-A-N-N-M-S-P-F-B-SE-N-N-B-4-0变压器保护继电器

845-E-P5-H5-G5-H-N-N-A-N-N-M-S-P-F-B-SE-N-N-B-4-0变压器保护继电器

845-EP5H5G5HNNAANGSPFBSENNBN是GE Multilin的变压器保护系统。该继电器设计用于保护、控制和管理公用事业或工业应用中的变压器系统。该型号设计用于 2 绕组和 3 绕组电力和配电变压器系统。该系列的单元最初是按订单生产的，因此此特定型号具有零件编号指示的某些可选功能。

显着特点

845-ep5h5g5hnnaangspfbsennbn具有5a三相和接地电流输入。该型号使用高压110-250vdc / 110-230vac电源。该型号的一些高级功能包括其电压计量和保护和控制功能。高级电压计量和保护功能集包括每赫兹电压和定向功率继电器等。控制功能集在基本控制功能中增加了FlexLogic，断路器故障和VT熔断器故障功能。

标准功能

845-ep5h5g5hnnaangspfbsennbn上的许多可选功能集都使用最基本的软件包。例如，通信、监控和电流保护等功能提供了基本功能。对于通信、这仍然意味着该型号具有前置usb、后置rs485和以太网端口。此外,此基本包还支持iec60870 - 5 - 103, Modbus RTU, Modbus TCP、DNP3.0和DNP TCP等协议。基本监控功能包括断路器线圈监控、谐波、跳闸计数器和断路器电弧等有用的功能。基本电流保护包括中性线/相/地瞬时过流和中性线/相/接地时间过流等。

845-E-P5-H5-G5-H-N-N-A-N-N-M-S-P-F-B-SE-N-N-B-4-0变压器保护继电器

845-EP5H5G5HNNAANGSPFBSENNBN is GE Multilin's transformer protection system. The relay is designed to protect, control and manage transformer systems in utility or industrial applications. This model is designed for use in 2-winding and 3-winding power and distribution transformer systems. Units in this series were originally manufactured to order, so this particular model has certain optional features indicated by the part number.

Salient feature

845-EP5H5G5HNNAANGSPFBSENNBN has 5A three-phase and ground current input. This model uses a high voltage 110-250VDC/110-230VAC power supply. Some of the advanced features of this model include its voltage metering and protection and control functions. Advanced voltage metering and protection feature sets include voltage per Hertz and directional power relays. The Control function set adds FlexLogic, circuit breaker failure, and VT fuse failure to the basic control function.

Standard function

Many of the optional feature sets on 845-EP5H5G5HNNAANGSPFBSENNBN use the most basic packages. For example, functions such as communication, monitoring, and current protection provide basic functionality. For communication, this still means that the model has USB front, RS485 rear, and Ethernet ports. The basic package also supports protocols such as IEC60870-5-103, Modbus RTU, Modbus TCP, DNP3.0, and DNP TCP. Basic monitoring features include useful functions such as circuit breaker coil monitoring, harmonics, trip counters and circuit breaker arcing. Basic current protection includes neutral line/phase/ground transient overcurrent and neutral line/phase/ground time overcurrent.
