IS200WETAH1A是GE的电路板，作为其Mark VIe系统的一部分而设计。该电路板最常用于风能应用。马克·维可用于管理许多应用中的涡轮机系统，包括核设施，天然气和石油，水力，热能和风能。它包括用于维护功能的可编程软件工具，以及内置于硬件和软件中的极限检查诊断功能。

Is200wetah1a在其表面安装了数百个组件。有一个裸露的铜带，沿所有四个板边缘有多个工厂钻孔。PCB有一个辅助板。这被标记为is210bppbh2c。AX控件为该板提供了一个单独的列表，该列表将包含其组件的描述。

Is200wetah1a的表面有7个保险丝。该板有4个变压器，25个tp测试点和6个端子板。该板包括线圈电感器、电容器、电阻器、继电器元件、集成电路、二极管和跳线开关。该板有 100 多个稳压器。这些元件通过反馈回路自动调节电阻（考虑负载和输入的变化），同时保持输出电压恒定。稳压器以长线放置在电路板上，平行于四个边缘中的三个。

IS200WETAH1A具有超过45个插头和连接器,包括一个垂直公针连接器和从2位到20位的插头连接器。P4和p5连接器由导电点或导电线制成。其中一些带有相同的参考标号（例如，p29a / p29b / p29c）。请参阅ge出版物，了解安装指南和维护计划。请遵循所有安全和处理指南。

IS200WETAH1AEC 电路板最常用于风能应用

The IS200WETAH1A is a GE circuit board designed as part of its Mark VIe system. The board is most commonly used in wind energy applications. Mark VIe can be used to manage turbine systems in many applications, including nuclear facilities, gas and oil, hydro, thermal, and wind. It includes programmable software tools for maintenance functions, as well as limit check diagnostics built into hardware and software.

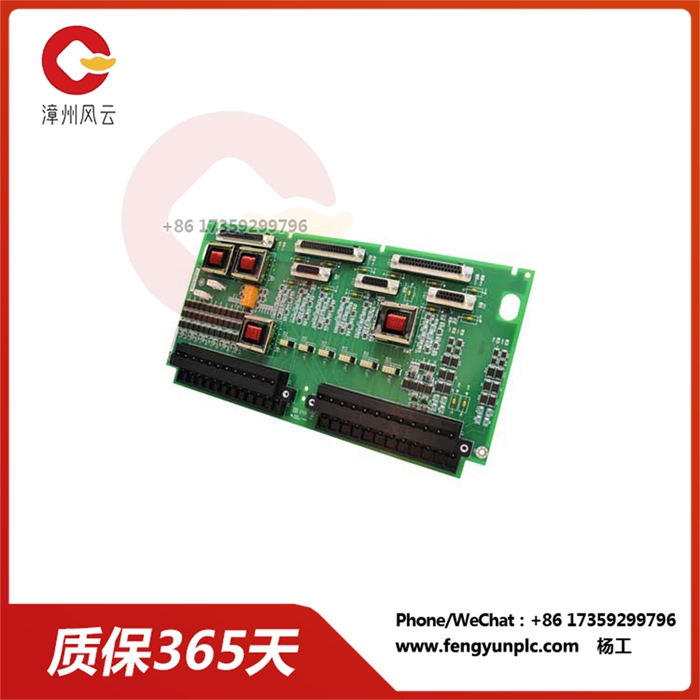

The IS200WETAH1A has hundreds of components installed on its surface. There is an exposed copper strip with multiple factory drilling holes along all four plate edges. The PCB has an auxiliary board. This is labeled IS210BPPBH2C. AX Control provides a separate list for the board, which will contain descriptions of its components.

The surface of the IS200WETAH1A has 7 fuses. The board has 4 transformers, 25 TP test points and 6 terminal boards. The board includes a coil inductor, capacitor, resistor, relay element, integrated circuit, diode and jumper switch. The board has more than 100 regulators. These components automatically adjust resistance via feedback loops (taking into account changes in load and input) while keeping the output voltage constant. The voltage regulator is placed on the board in long lines parallel to three of the four edges.

The IS200WETAH1A features more than 45 plugs and connectors, including a vertical male pin connector and plug connectors from 2 to 20 positions. P4 and P5 connectors are made of conductive points or wires. Some of them have the same reference label (for example, P29A/P29B/P29C). Please refer to GE publications for installation guides and maintenance plans. Please follow all safety and handling guidelines.
