DS3800NCIB1G1C 电流隔离电路板

DS3800NCIB1G1C 电流隔离电路板

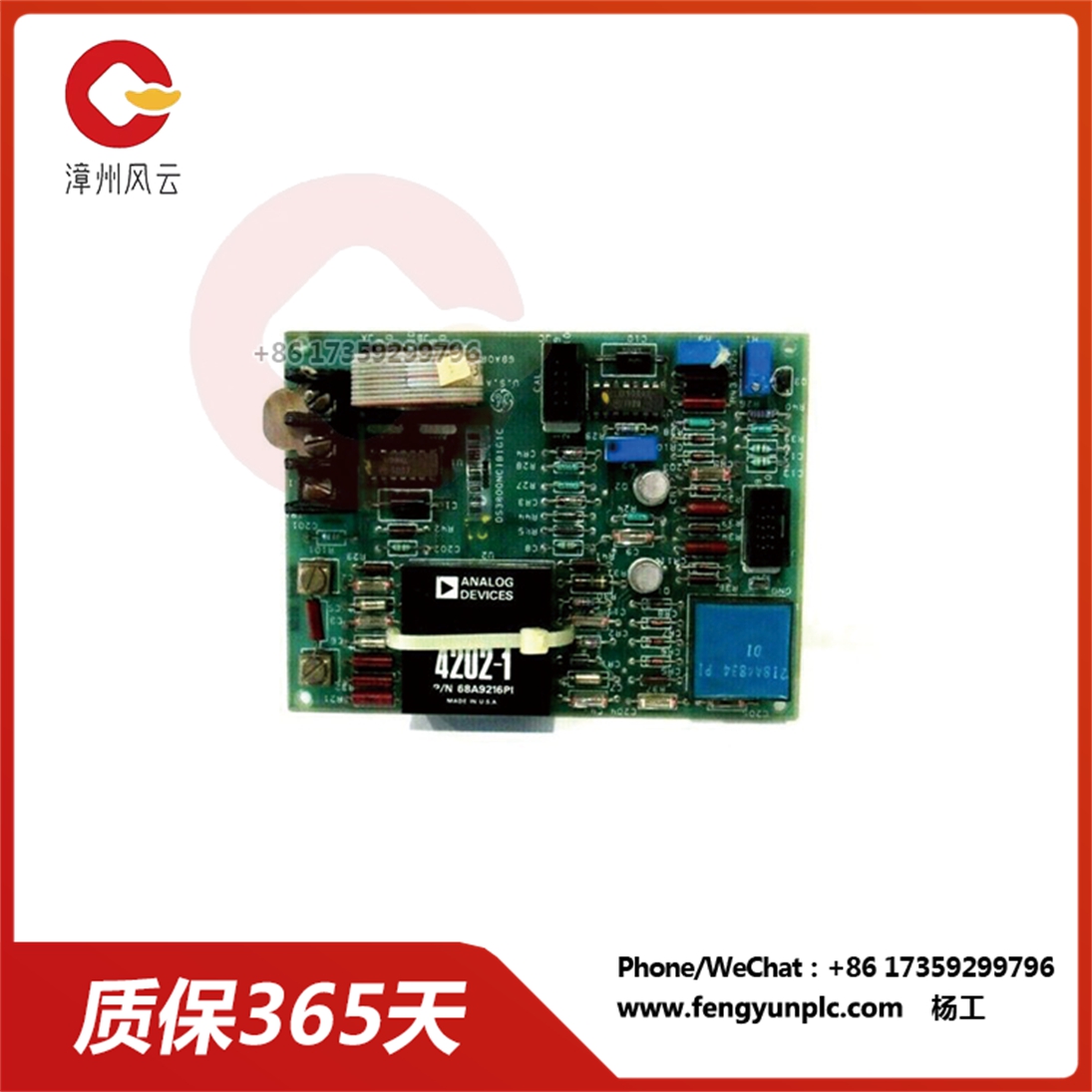

DS3800NCIB1G1C 通常是ABB公司生产的一款电流隔离电路板。它主要用于工业自动化系统中，起到隔离不同电气回路、保护设备、提高系统可靠性的作用。

电流隔离电路板的作用

隔离保护： 将高压或强干扰的电路与低压或敏感电路隔离，防止高压损坏低压电路，提高系统的安全性。

信号传输: 在两个电气隔离的电路之间传输信号，实现不同电路之间的通信。

共模抑制: 抑制共模干扰，提高信号质量。

在DS3800NCIB1G1C中的作用

DS3800NCIB1G1C中的电流隔离电路板通常用于：

电流测量: 将高压侧的电流信号隔离并转换为低压信号，以便进行测量和控制。

信号传输： 将数字信号或模拟信号从一个电路传输到另一个电路。

保护控制电路： 防止高压或强干扰信号损坏控制电路。

技术特点

高隔离电压： 能够承受高电压，确保隔离效果。

宽带宽： 能够传输高频信号，满足高速通信的需求。

高精度： 具有较高的测量精度。

小型化： 采用小型封装，节省安装空间。

应用场景

电机驱动系统： 测量电机电流，实现对电机的控制和保护。

电力电子设备： 隔离功率电路和控制电路，提高系统的可靠性。

工业自动化系统： 在各种工业自动化设备中用于信号隔离和传输。

选型指南

选择DS3800NCIB1G1C时，需要考虑以下因素：

隔离电压： 根据系统的工作电压选择合适的隔离电压。

通道数： 根据需要隔离的信号通道数选择。

带宽： 根据信号频率选择合适的带宽。

精度： 根据测量精度要求选择。

DS3800NCIB1G1C 电流隔离电路板

The DS3800NCIB1G1C is usually a current isolation circuit board produced by ABB. It is mainly used in industrial automation systems to isolate different electrical circuits, protect equipment, and improve system reliability.

The function of current isolation circuit board

Isolation protection: The high voltage or strong interference circuit is isolated from the low voltage or sensitive circuit to prevent the high voltage from damaging the low voltage circuit and improve the safety of the system.

Signal transmission: Transmission of signals between two electrically isolated circuits to achieve communication between different circuits.

Common mode rejection: Suppress common mode interference and improve signal quality.

Role in DS3800NCIB1G1C

The current isolation circuit board in DS3800NCIB1G1C is commonly used for:

Current measurement: The current signal on the high voltage side is isolated and converted into a low voltage signal for measurement and control.

Signal transmission: The transmission of digital or analog signals from one circuit to another.

Protection control circuit: prevent high voltage or strong interference signal damage control circuit.

Technical characteristics

High isolation voltage: can withstand high voltage to ensure isolation effect.

Wide broadband: can transmit high-frequency signals to meet the needs of high-speed communication.

High precision: has a high measurement accuracy.

Miniaturization: Using a small package to save installation space.

Application scenario

Motor drive system: Measure the motor current to realize the control and protection of the motor.

Power electronics: Isolate power circuits and control circuits to improve system reliability.

Industrial automation systems: used for signal isolation and transmission in various industrial automation equipment.

Selection guide

When selecting DS3800NCIB1G1C, you need to consider the following factors:

Isolation voltage: Select the appropriate isolation voltage according to the operating voltage of the system.

Number of channels: Set this parameter based on the number of signal channels to be isolated.

Bandwidth: Select the appropriate bandwidth according to the signal frequency.

Accuracy: Select according to the measurement accuracy requirements.
