DS200CPCAG1ABB 接触器导向卡

DS200CPCAG1ABB 接触器导向卡

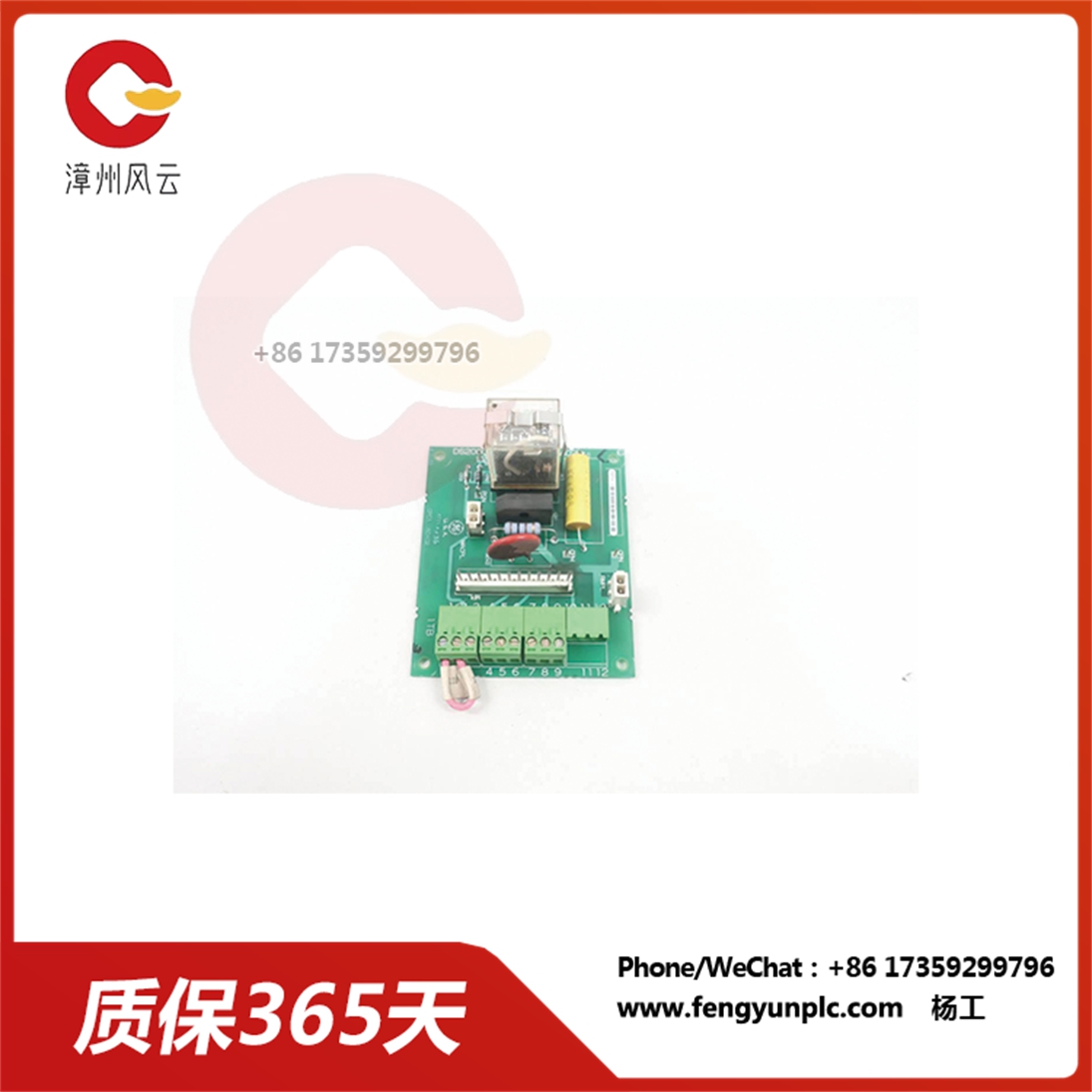

DS200CPCAG1ABB 是一款由ABB生产的接触器导向卡。它主要用于固定和引导接触器内的辅助触点块，确保辅助触点块在接触器内部的正确位置，并提供可靠的电气连接。

产品特点

精确导向: 导向卡设计精密，能够精确地引导辅助触点块，确保其与主触点之间的配合准确可靠。

绝缘性好: 采用优质绝缘材料，具有良好的绝缘性能，防止短路和漏电。

耐高温: 能够承受高温环境，适用于各种恶劣工况。

安装方便: 设计合理，安装简单快捷。

产品功能

固定辅助触点块： 将辅助触点块固定在接触器内部的指定位置。

引导辅助触点块： 引导辅助触点块进行准确的运动，确保其与主触点之间的良好接触。

提供电气连接： 通过导向卡上的接线端子，提供辅助触点块与外部电路的可靠连接。

应用场景

DS200CPCAG1ABB 广泛应用于各种工业自动化设备中，如：

电机控制系统： 用于控制电机的启动、停止、转向等。

自动化生产线： 用于控制各种自动化设备的运行。

电力系统： 用于控制电力设备的通断。

产品结构

DS200CPCAG1ABB 的结构通常包括以下部分：

导向槽： 用于引导辅助触点块的移动。

固定孔： 用于将导向卡固定在接触器上。

接线端子： 用于连接辅助触点块和外部电路。

DS200CPCAG1ABB 接触器导向卡

The DS200CPCAG1ABB is a contactor guide card produced by ABB. It is mainly used to secure and guide the auxiliary contact block in the contactor, ensure the correct position of the auxiliary contact block inside the contactor, and provide a reliable electrical connection.

Product characteristics

Precise guidance: The precise design of the guide card can precisely guide the auxiliary contact block to ensure accurate and reliable coordination between it and the main contact.

Good insulation: The use of high-quality insulating materials, with good insulation performance, to prevent short circuit and leakage.

High temperature resistance: can withstand high temperature environment, suitable for a variety of harsh conditions.

Easy installation: reasonable design, simple and quick installation.

Product function

Fixed auxiliary contact block: The auxiliary contact block is fixed in the specified position inside the contactor.

Guide auxiliary contact block: Guide the auxiliary contact block for accurate movement to ensure good contact between it and the main contact.

Electrical connection provided: Reliable connection of the auxiliary contact block to the external circuit is provided through the terminal on the guide card.

Application scenario

DS200CPCAG1ABB is widely used in various industrial automation equipment, such as:

Motor control system: used to control motor start, stop, steering, etc.

Automated production line: used to control the operation of various automation equipment.

Power system: used to control the on-off of power equipment.

Product structure

The DS200CPCAG1ABB structure typically consists of the following parts:

Guide slot: Used to guide the movement of the auxiliary contact block.

Fixing hole: Used to fix the guide card to the contactor.

Terminal: Used to connect the auxiliary contact block to the external circuit.

DS200CPCAG1ABB 接触器导向卡
