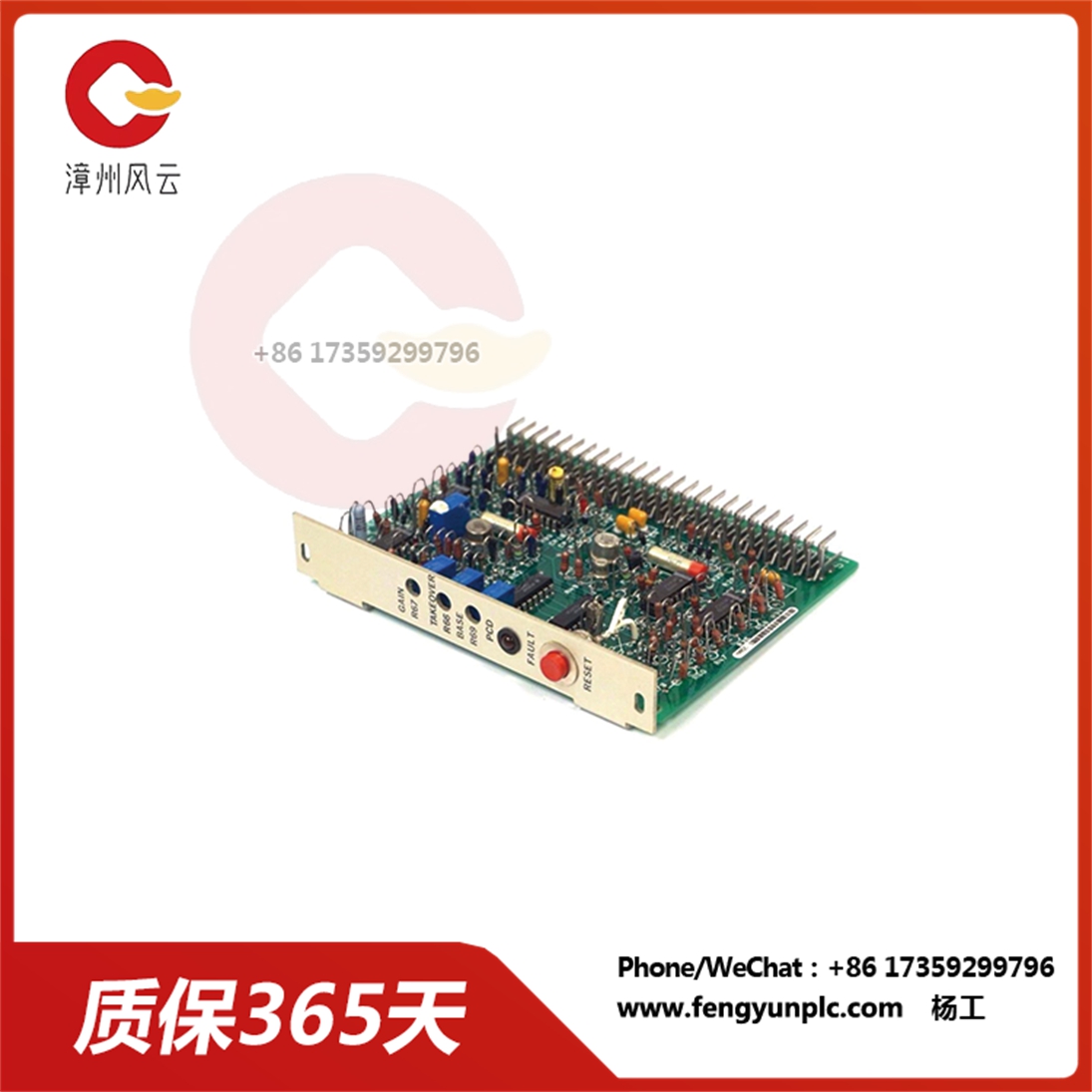

IC3600STKK1 温度控制板

IC3600STKK1 温度控制板

IC3600STKK1 是一款专为温度控制设计的电子板卡。它通常集成在工业控制系统中，用于采集温度传感器（如热电偶、热敏电阻等）的信号，并根据设定的温度值对加热器、冷却器等执行器进行控制，以实现对温度的精确调节。

主要功能

温度测量: 采集温度传感器信号，并将其转换为标准的数字信号。

PID控制： 采用PID控制算法，实现对温度的精确控制。

报警功能: 当温度超出设定范围时，触发报警信号。

通信接口: 提供多种通信接口（如RS485、CAN等），方便与上位机进行通信。

人机界面: 部分型号提供LCD显示屏或按键，方便用户进行参数设置和状态监控。

应用场景

工业加热炉： 控制炉膛温度，确保产品质量。

塑胶成型机： 控制模具温度，保证产品尺寸精度。

食品加工： 控制烘箱、杀菌锅等设备的温度。

环境试验室： 控制温度和湿度，模拟各种环境条件。

工作原理

温度测量： 板卡上的A/D转换器将温度传感器输出的模拟信号转换为数字信号。

PID控制： 数字信号经过PID控制器处理后，生成控制输出信号。

执行器控制： 控制输出信号驱动加热器、冷却器等执行器，调节温度。

反馈调节： 系统不断采集反馈信号，与设定值进行比较，并调整控制输出，形成闭环控制。

IC3600STKK1 温度控制板

The IC3600STKK1 is an electronic board designed for temperature control. It is usually integrated in industrial control systems, used to collect the signal of temperature sensors (such as thermocouples, thermistors, etc.), and according to the set temperature value of the heater, cooler and other actuators to control, in order to achieve accurate temperature adjustment.

Main function

Temperature measurement: Capture the temperature sensor signal and convert it into a standard digital signal.

PID control: PID control algorithm is used to achieve accurate temperature control.

Alarm function: When the temperature exceeds the set range, the alarm signal is triggered.

Communication interface: Provide a variety of communication interfaces (such as RS485, CAN, etc.), easy to communicate with the host computer.

Man-machine interface: Some models provide LCD display or buttons for parameter setting and status monitoring.

Application scenario

Industrial heating furnace: Control furnace temperature to ensure product quality.

Plastic molding machine: control mold temperature to ensure product dimensional accuracy.

Food processing: Control the temperature of ovens, sterilizing POTS and other equipment.

Environmental laboratory: Control temperature and humidity to simulate various environmental conditions.

Working principle

Temperature measurement: The A/D converter on the board converts the analog signal output from the temperature sensor into a digital signal.

PID control: After the digital signal is processed by the PID controller, the control output signal is generated.

Actuator control: Control the output signal to drive the heater, cooler and other actuators to adjust the temperature.

Feedback adjustment: The system constantly collects feedback signals, compares them with the set value, and adjusts the control output to form a closed-loop control.
