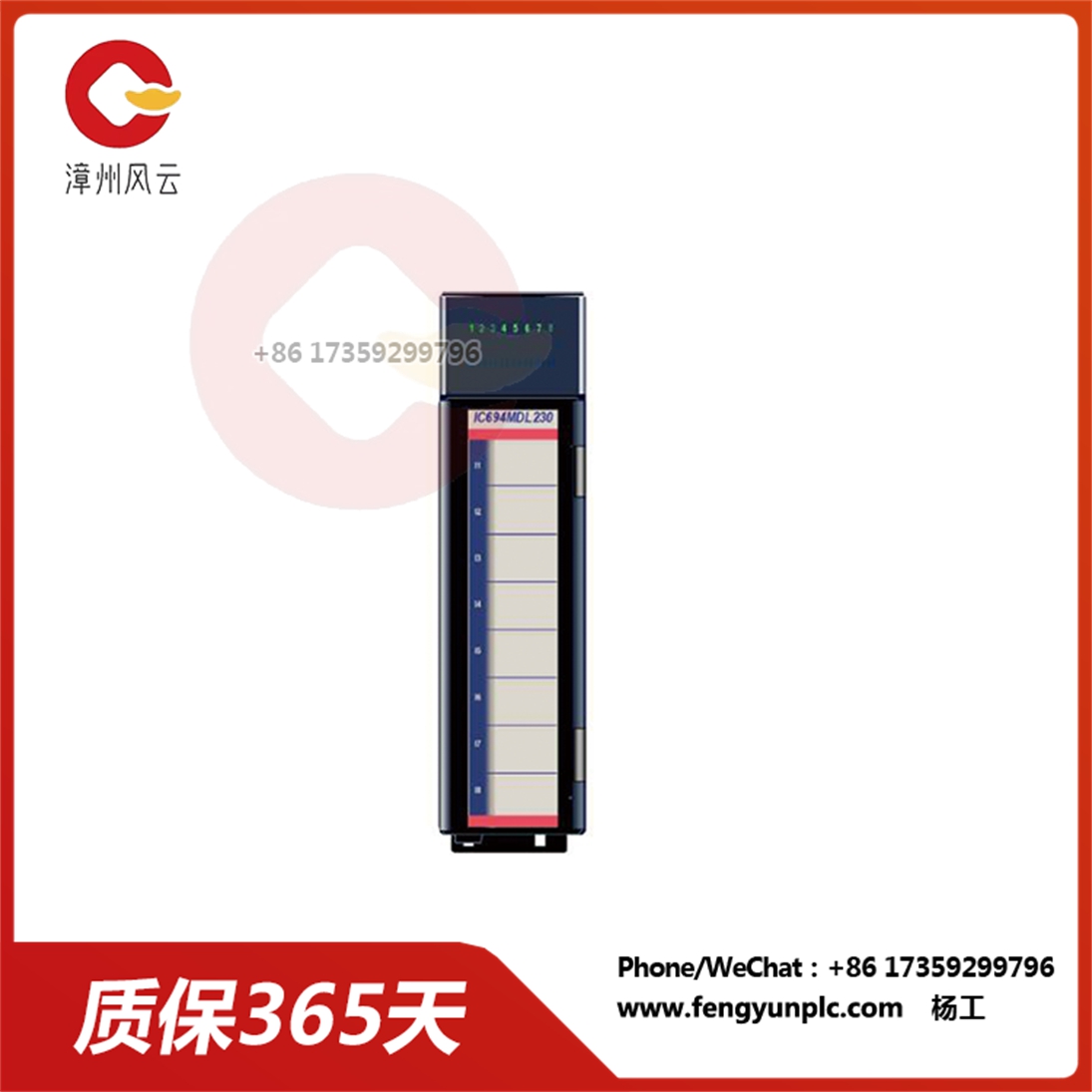

IC694MDL230 输入模块，120 VAC 8点，每点隔离

IC694MDL230  输入模块，120 VAC 8点，每点隔离

IC694MDL230 是一款专为工业自动化设计的数字输入模块，通常集成在可编程逻辑控制器（PLC）系统中。该模块的主要功能是采集来自现场的120VAC数字信号，并将其转换为PLC可识别的信号，实现对生产过程的监测和控制。

主要特点与功能

120VAC输入: 模块可以直接连接到120VAC的数字信号源，如开关、继电器等。

8点隔离输入: 模块通常具有8个独立的输入通道，每个通道之间相互隔离，可以有效地防止干扰。

高可靠性: 适用于恶劣的工业环境，具有较高的抗干扰性和稳定性。

模块化设计: 模块化的结构，方便安装和维护。

灵活配置: 可以通过PLC编程软件对模块进行灵活配置，适应不同的应用需求。

在PLC系统中的作用

IC694MDL230 在PLC系统中充当着传感器接口的角色。它将来自现场的数字信号采集进来，并将其转换为PLC可识别的信号，从而实现对生产过程的监测和控制。

应用场景

IC694MDL230 输入模块广泛应用于各种工业自动化系统中，例如：

机器控制: 监测机器的运行状态，如电机启动、停止、故障等。

过程控制: 监测生产过程中的各种参数，如液位、温度、压力等。

安全监控: 监测安全门的开关状态、紧急停止按钮等，确保生产安全。

IC694MDL230  输入模块，120 VAC 8点，每点隔离

The IC694MDL230 is a digital input module specifically designed for industrial automation, typically integrated in programmable logic controller (PLC) systems. The main function of the module is to collect 120VAC digital signals from the field and convert them into PLC recognizable signals to realize the monitoring and control of the production process.

Main features and functions

120VAC input: Modules can be directly connected to 120VAC digital signal sources such as switches, relays, etc.

8-point isolated input: The module usually has 8 independent input channels, each channel is isolated from each other, which can effectively prevent interference.

High reliability: suitable for harsh industrial environments, with high anti-interference and stability.

Modular design: Modular structure, easy installation and maintenance.

Flexible configuration: The module can be flexibly configured through PLC programming software to adapt to different application requirements.

Role in PLC system

The IC694MDL230 acts as the sensor interface in the PLC system. It collects the digital signal from the field and converts it into the PLC identifiable signal, so as to realize the monitoring and control of the production process.

Application scenario

The IC694MDL230 input module is widely used in various industrial automation systems, such as:

Machine control: monitor the running state of the machine, such as motor start, stop, failure, etc.

Process control: Monitor various parameters in the production process, such as liquid level, temperature, pressure, etc.

Safety monitoring: Monitor the switch status of the safety door, emergency stop button, etc., to ensure production safety.

IC694MDL230  输入模块，120 VAC 8点，每点隔离
