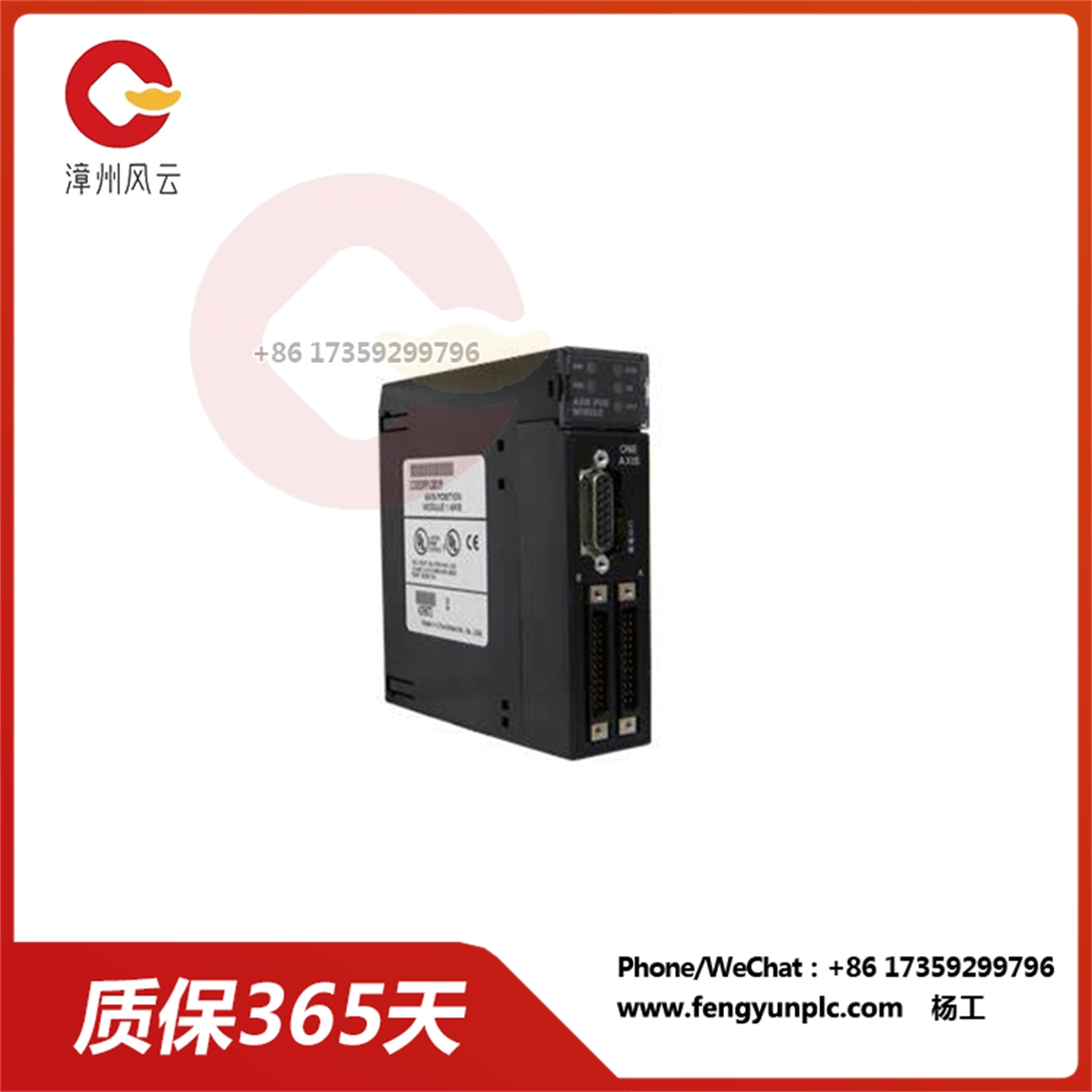

IC693APU301 轴定位模块 可编程逻辑控制器

IC693APU301  轴定位模块 可编程逻辑控制器

IC693APU301 这款设备，从型号上看，应该是一款专为轴定位设计的模块，通常集成在可编程逻辑控制器（PLC）系统中。它能够实现高精度的轴定位控制，广泛应用于工业自动化领域。

主要功能与特点

轴定位控制: 高精度地控制一个或多个轴的运动，包括位置控制、速度控制、加减速控制等。

可编程性: 通过PLC编程软件，用户可以自定义运动轨迹、速度曲线、加减速曲线等参数。

模块化设计: 模块化的结构，方便安装和维护。

多种通信方式: 支持多种通信协议，如CANopen、Modbus等，方便与上位机进行通信。

丰富的功能: 除了基本的轴定位功能外，还可能具有伺服控制、电子齿轮、电子凸轮等功能。

在PLC系统中的作用

IC693APU301 在PLC系统中主要负责运动控制部分。它接收来自PLC的指令，根据指令控制电机或其他执行机构，实现对轴的精确定位。

型号解读

IC693: 这可能是该模块的系列代号，代表其属于某一特定产品线。

APU: 可能代表该模块是轴定位单元（Axis Positioning Unit）。

301: 可能代表该模块的具体型号或版本。

IC693APU301  轴定位模块 可编程逻辑控制器

The IC693APU301 device, from the model point of view, should be a module designed for shaft positioning, usually integrated in a programmable logic controller (PLC) system. It can realize high-precision axis positioning control and is widely used in industrial automation.

Main functions and characteristics

Axis positioning control: high-precision control of the movement of one or more axes, including position control, speed control, acceleration and deceleration control.

Programmability: Through PLC programming software, users can customize the motion trajectory, speed curve, acceleration and deceleration curve and other parameters.

Modular design: Modular structure, easy installation and maintenance.

Multiple communication modes: Support a variety of communication protocols, such as CANopen, Modbus, etc., to facilitate communication with the host computer.

Rich functions: In addition to the basic shaft positioning function, it may also have servo control, electronic gear, electronic CAM and other functions.

Role in PLC system

IC693APU301 is mainly responsible for the motion control part in the PLC system. It receives instructions from the PLC and controls the motor or other actuator according to the instructions to achieve the precise positioning of the shaft.

Model interpretation

IC693: This may be the serial code for the module, representing that it belongs to a particular product line.

APU: May indicate that the module is an Axis Positioning Unit.

301: indicates the model or version of the module.
