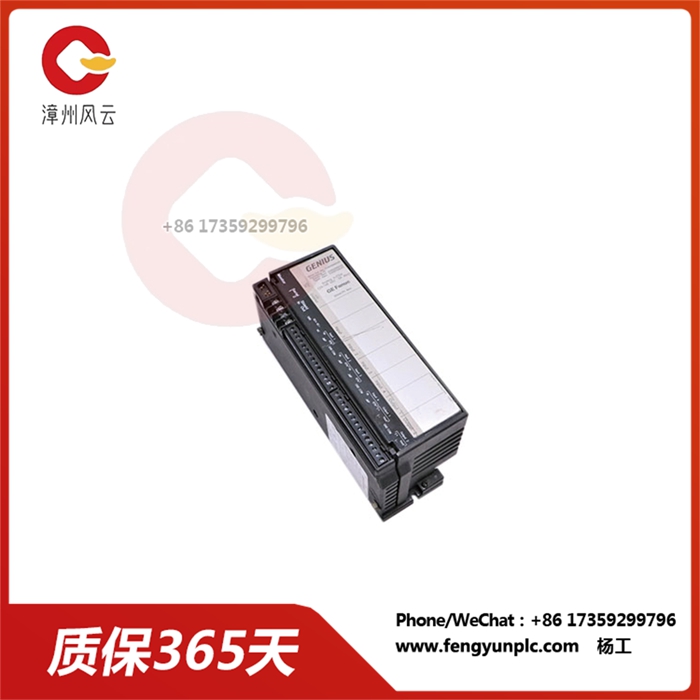

IC660BBA101 铜电阻温度传感器

IC660BBA101 铜电阻温度传感器

IC660BBA101 是由GE Fanuc（现为艾默生的一部分）制造的电阻温度检测器（RTD）输入模块，用于工业自动化应用。 它设计用于监控铜 RTD 的温度输入，将其电阻值转换为工程单位（摄氏度、华氏度或欧姆），供 PLC（可编程逻辑控制器）使用。

主要特点：

6 个 RTD 输入通道：提供 6 个独立的输入通道，用于连接铜质 RTD。

铜RTD兼容性：支持具有各种电阻值和 alpha 值的铜 RTD。

线性化：线性化RTD电阻-温度关系，实现精确的温度测量。

多种输出格式：以摄氏度、以摄氏度为单位报告温度数据，华氏度或欧姆。。

故障检测：检测并报告输入短路，内部故障，接线错误，明线，和超量程/欠量程条件。

应用：

IC660BBA101 RTD输入模块适用于各种工业自动化应用，这些应用需要使用铜RTD进行精确的温度测量。包括：

工业过程控制：监测各种工业过程中的温度，如化学加工，食品和饮料制造，和金属加工。

暖通空调系统：控制和监测供暖温度，通风和空调 （HVAC） 系统。的温度。

环境监测：测量环境室中的温度，温室和其他受控环境。的温度。

机器监控：监测轴承温度，电机以及机械的其他关键部件。的温度。

实验室应用：在实验室实验和研究环境中测量温度。

好处：

精确的温度测量：使用铜RTD提供精确可靠的温度测量。

增强的过程控制：能够精确控制与温度相关的过程。

提高系统可靠性：检测并报告故障以防止系统停机。

灵活的输出选项：支持多种输出格式，与各种PLC系统兼容。

易于安装：支持DIN导轨安装，便于集成到控制面板中。

规格：

规范价值

输入通道 6

RTD兼容性 铜RTD

电阻范围 0 至 5000 欧姆

Alpha 值 0.00392

输入分辨率 0.1°摄氏度

更新频率 每 400 毫秒、800 毫秒或 1600 毫秒（可选）一次

电源 115 伏交流电 / 125 伏直流电

工作温度 -40°C 至 +70°C

尺寸（长 x 宽 x 高） 150 x 100 x 80 毫米

重量 4 磅

IC660BBA101 铜电阻温度传感器

The IC660BBA101 is a resistance temperature detector (RTD) input module manufactured by GE Fanuc (now part of Emerson) for industrial automation applications. It is designed to monitor the temperature input of copper RTDS, converting their resistance values into engineering units (degrees Celsius, Fahrenheit or ohms) for PLC (Programmable logic controller) use.

Main features:

6 RTD input channels: 6 independent input channels are provided for connecting copper RTDS.

Copper RTD compatibility: Copper RTDS with various resistance and alpha values are supported.

Linearization: Linearize the RTD resistance-temperature relationship for accurate temperature measurement.

Multiple output formats: Report temperature data in degrees Celsius, degrees Celsius, degrees Fahrenheit or ohms.

Fault detection: Detects and reports input short circuits, internal faults, wiring errors, open wires, and over/under range conditions.

Applications:

The IC660BBA101 RTD input module is suitable for a variety of industrial automation applications that require accurate temperature measurements using copper RTD. Includes:

Industrial Process Control: Monitoring temperature in various industrial processes, such as chemical processing, food and beverage manufacturing, and metal processing.

HVAC systems: Control and monitor heating temperature, ventilation and air conditioning (HVAC) systems. The temperature of...

Environmental monitoring: Measures temperature in environmental chambers, greenhouses and other controlled environments. The temperature of...

Machine monitoring: Monitoring bearing temperature, motor and other key parts of machinery. The temperature of...

Laboratory applications: Measurement of temperature in laboratory experiments and research environments.

Benefits:

Accurate temperature measurement: Copper RTD provides accurate and reliable temperature measurement.

Enhanced process control: Precise control of temperature-related processes.

Improve system reliability: Detect and report faults to prevent system downtime.

Flexible output options: Supports multiple output formats and is compatible with various PLC systems.

Easy installation: Supports DIN rail mounting for easy integration into the control panel.

Specifications:

Normative value

Input channel 6

RTD Compatibility Copper RTD

Resistance range 0 to 5000 ohms

The Alpha value is 0.00392

Input resolution 0.1° C

Update frequency every 400 ms, 800 ms or 1600 ms (optional)

Power Supply 115 volts AC / 125 volts DC

Operating temperature -40°C to +70°C

Dimensions (L x W x H) 150 x 100 x 80 mm

Weight 4 pounds
