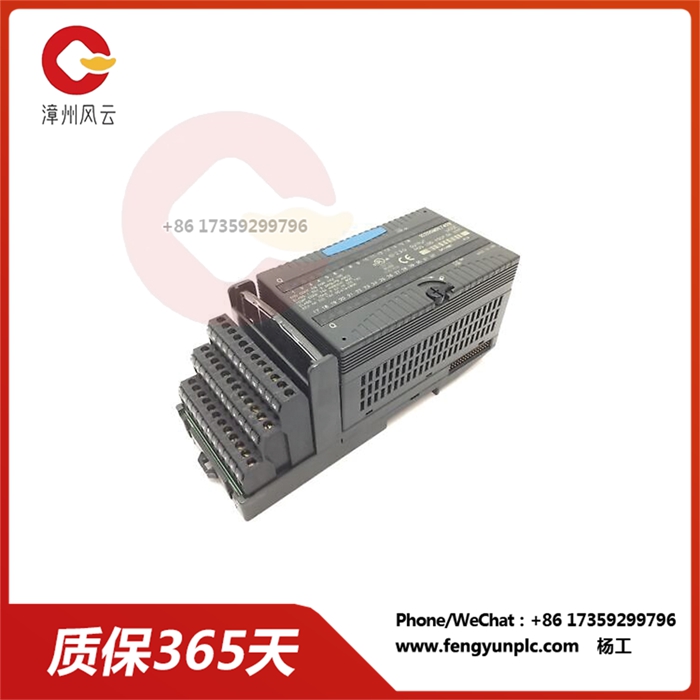

IC200MDL742G 逻辑的串行通信模块

IC200MDL742G 逻辑的串行通信模块

IC200MDL742G RS-232/485 串行通信模块是一款扩展模块，设计用于 Allen-Bradley ControlLogix® PLC（可编程逻辑控制器）系统。它提供两个 RS-232/RS-485 串行通信端口，以实现与工业自动化应用中的外部设备和网络的通信。

主要特点：

两个串行通信端口：提供两个独立的串行通信端口，用于连接各种设备和网络。

RS-232 和 RS-485 支持：支持 RS-232 和 RS-485 通信协议，提供灵活的通信选项。

高数据速率：支持高达 250 kbps 的数据速率，实现快速高效的数据传输。

非易失性存储器：即使在断电时也能存储配置参数，确保通信设置一致。

DIN导轨安装：支持DIN导轨安装，便于集成到控制面板和外壳中。

应用：

IC200MDL742G RS-232/485 串行通信模块适用于需要串行通信的各种工业自动化应用，包括：

工业通信网络：连接到工业通信网络，如Modbus和Profibus。

监控和数据采集 （SCADA） 系统：与SCADA系统连接，用于监测和控制目的。

人机界面 （HMI）：与HMI通信，实现操作员交互和控制。

条码扫描器和 RFID 阅读器：与条码扫描器和 RFID 读取器连接以进行数据采集。

远程 I/O 设备：连接到分布式控制系统的远程 I/O 设备。

好处：

增强的通信能力：支持与各种外部设备和网络的通信。

改进的系统集成：便于与各种工业自动化系统的集成。

灵活的通信选项：支持 RS-232 和 RS-485 协议，满足各种通信需求。

可靠的数据传输：确保通过串行通信通道可靠高效地传输数据。

易于集成：支持DIN导轨安装，安装方便。

规格：

规范价值

串行通信端口 2

支持的协议 RS-232、RS-485 串口

数据速率 高达 250 kbps

非易失性存储器 是的

通讯接口 背板总线

电源 24V 直流

工作温度 -20°C 至 +60°C

尺寸（长 x 宽 x 高） 120 x 80 x 30 毫米

重量 0.3 千克

IC200MDL742G 逻辑的串行通信模块

The IC200MDL742G RS-232/485 serial communication module is an expansion module designed for use in Allen-Bradley ControlLogix® PLC (Programmable Logic Controller) systems. It provides two RS-232/RS-485 serial communication ports for communication with external devices and networks in industrial automation applications.

Main features:

Two serial communication ports: Two independent serial communication ports are provided for connecting various devices and networks.

RS-232 and RS-485 support: Support for RS-232 and RS-485 communication protocols, providing flexible communication options.

High data rate: Data rates up to 250 kbps are supported for fast and efficient data transfer.

Non-volatile memory: Stores configuration parameters even in the event of a power outage, ensuring consistent communication Settings.

DIN Rail mounting: Supports DIN rail mounting for easy integration into the control panel and housing.

Applications:

The IC200MDL742G RS-232/485 Serial communication module is suitable for a variety of industrial automation applications that require serial communication, including:

Industrial communication networks: Connect to industrial communication networks such as Modbus and Profibus.

Supervisory Control and Data Acquisition (SCADA) systems: Connected to SCADA systems for monitoring and control purposes.

Human Machine Interface (HMI) : Communicates with the HMI to enable operator interaction and control.

Bar code scanners and RFID readers: Connect to bar code scanners and RFID readers for data acquisition.

Remote I/O devices: Remote I/O devices connected to a distributed control system.

Benefits:

Enhanced communication capabilities: Supports communication with a variety of external devices and networks.

Improved system integration: Easy integration with various industrial automation systems.

Flexible communication options: RS-232 and RS-485 protocols are supported to meet various communication needs.

Reliable data transfer: Ensures reliable and efficient transmission of data over serial communication channels.

Easy integration: Support DIN rail installation, easy installation.

Specifications:

Normative value

Serial communication port 2

Supported protocols RS-232 and RS-485 serial ports

Data rates up to 250 kbps

Non-volatile memory Yes

Communication interface backplane bus

Power supply 24V DC

Operating temperature -20°C to +60°C

Dimensions (L x W x H) 120 x 80 x 30 mm

Weight 0.3 kg
