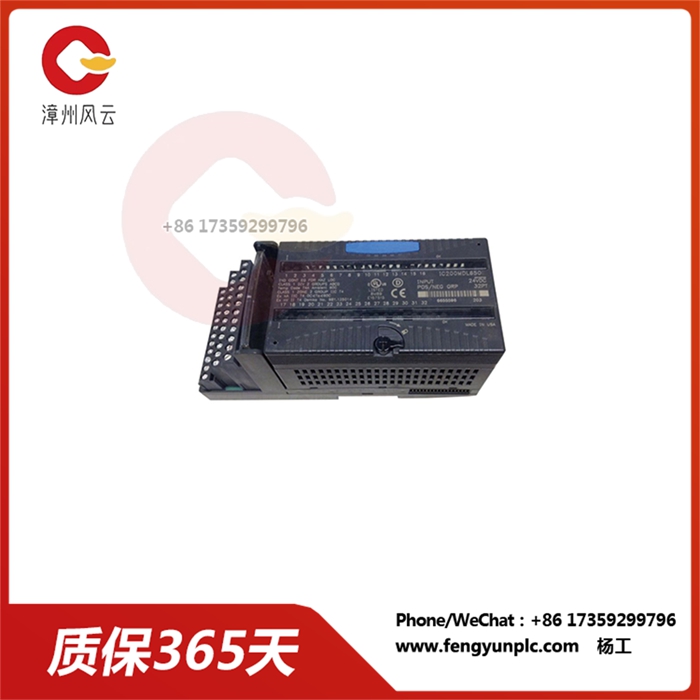

IC200MDL730E 模块I/O模拟输出PLC

IC200MDL730E 模块I/O模拟输出PLC

IC200MDL730E I/O 模拟输出模块是一个扩展模块，设计用于 Allen-Bradley ControlLogix® PLC（可编程逻辑控制器）系统。它提供 8 个模拟输出通道，用于控制和调节工业自动化应用中的模拟设备。

主要特点：

8 个模拟输出通道：提供 8 个独立的模拟输出通道，用于控制各种模拟设备。

模拟输出范围：支持 0-10V、±5V 和 ±10V 的宽模拟输出范围，以满足各种控制需求。

高分辨率：提供 12 位的高分辨率，可实现精确控制和准确的信号表示。

非易失性存储器：即使在断电时也能存储配置参数，确保运行一致。

DIN导轨安装：支持DIN导轨安装，便于集成到控制面板和外壳中。

应用：

IC200MDL730E I/O 模拟输出模块适用于需要精确模拟控制的各种工业自动化应用，包括：

过程控制：调节工业过程中的过程变量，如温度、压力和流量。

机器控制：控制机械和设备中的执行器、阀门和其他模拟设备。

测试与测量：为测试和测量应用生成精确的模拟信号。

数据采集系统：为数据采集和记录目的提供模拟输出。

工业自动化系统：与工业自动化系统集成，提供模拟控制功能。

好处：

增强的过程控制：实现对工业过程的精确和高效控制。

改进的机器性能：优化机器操作和生产率。

灵活的控制能力：适应各种模拟控制需求。

可靠的数据采集：提供准确可靠的模拟输出信号。

易于集成：支持DIN导轨安装，安装方便。

规格：

规范价值

模拟输出通道 8

模拟输出范围 0-10V、±5V、±10V

分辨率 12 位

准确性 满量程的±0.1%

更新速率 2.5 毫秒

非易失性存储器 是的

通讯接口 背板总线

电源 24V 直流

工作温度 -20°C 至 +60°C

尺寸（长 x 宽 x 高） 120 x 80 x 30 毫米

重量 0.3 千克

IC200MDL730E 模块I/O模拟输出PLC

The IC200MDL730E I/O analog Output module is an expansion module designed for use in Allen-Bradley ControlLogix® PLC (Programmable Logic Controller) systems. It provides 8 analog output channels for controlling and regulating analog devices in industrial automation applications.

Main features:

8 analog output channels: 8 independent analog output channels are provided for controlling various analog devices.

Analog output range: Support 0-10V, ±5V and ±10V wide analog output range to meet a variety of control needs.

High resolution: Provides 12-bit high resolution for precise control and accurate signal representation.

Non-volatile memory: Can store configuration parameters even in the event of power failure, ensuring consistent operation.

DIN Rail mounting: Supports DIN rail mounting for easy integration into the control panel and housing.

Applications:

The IC200MDL730E I/O analog output module is suitable for a variety of industrial automation applications that require precise analog control, including:

Process control: Regulating process variables in industrial processes, such as temperature, pressure, and flow.

Machine control: Control actuators, valves and other analog devices in machinery and equipment.

Test and measurement: Generate accurate analog signals for test and measurement applications.

Data acquisition system: Provides analog output for data acquisition and recording purposes.

Industrial Automation Systems: Integrated with industrial automation systems to provide analog control functions.

Benefits:

Enhanced process control: Achieve precise and efficient control of industrial processes.

Improved machine performance: Optimize machine operation and productivity.

Flexible control capability: ADAPTS to various analog control requirements.

Reliable data acquisition: provides accurate and reliable analog output signals.

Easy integration: Support DIN rail installation, easy installation.

Specifications:

Normative value

Analog output channel 8

Analog output range 0-10V, ±5V, ±10V

Resolution 12 bits

Accuracy ±0.1% of full scale

Update rate 2.5 ms

Non-volatile memory Yes

Communication interface backplane bus

Power supply 24V DC

Operating temperature -20°C to +60°C

Dimensions (L x W x H) 120 x 80 x 30 mm

Weight 0.3 kg
