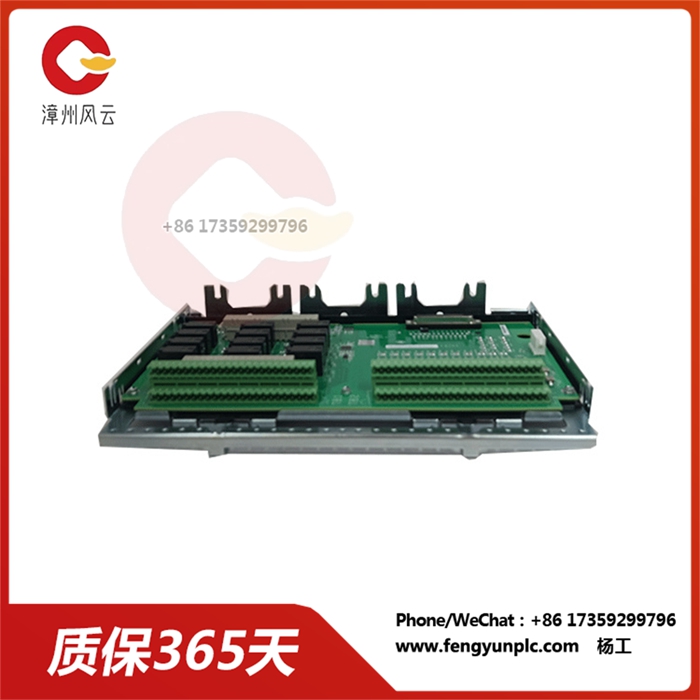

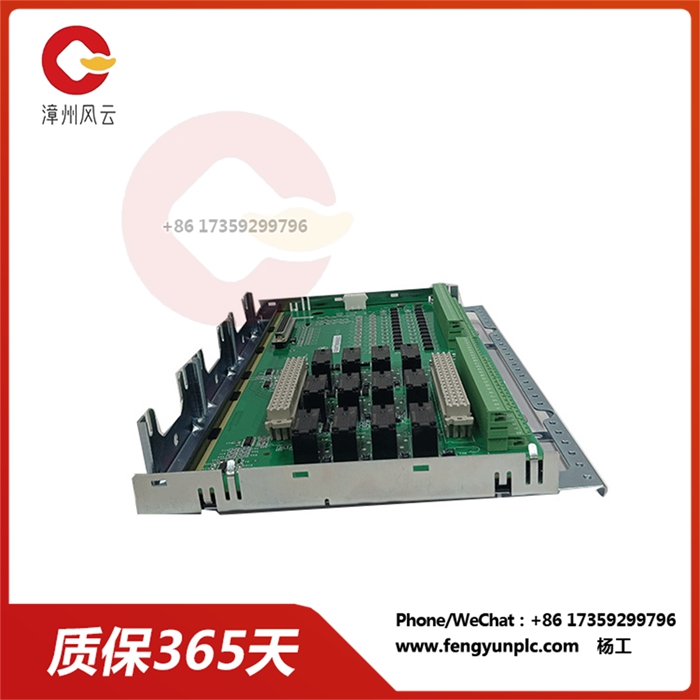

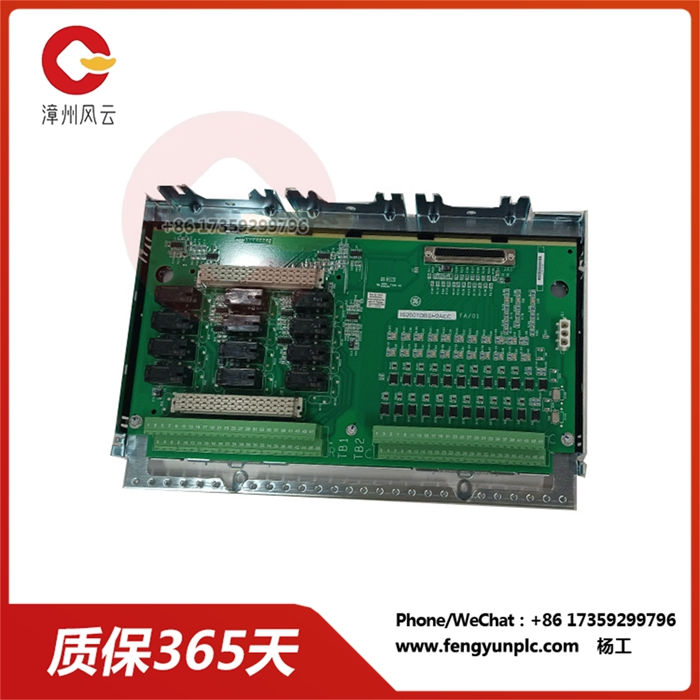

IS200TDBSH2ACC-IS230TNDSH2A 电力自动化控制卡

IS200TDBSH2ACC-IS230TNDSH2A 电力自动化控制卡

IS200TDBSH2ACC-IS230TNDSH2A 电源自动化控制卡是一种多功能组件，设计用于电力自动化系统，特别是涉及中压和高压配电网智能保护、控制和通信的应用。 它提供了一整套功能，以确保电力系统的可靠、高效和安全运行。

IS200TDBSH2ACC-IS230TNDSH2A电力自动化控制卡的主要特点：

高级保护功能：提供提供高级保护功能，包括过流，电压在电压下，差动保护，等和距离保护，，保护电力系统组件免受故障和异常情况的影响。

实时控制能力：支持对实现对电力系统元件的实时控制，如断路器，开关等和电容器组，，用于优化网络运行和故障管理。

精确计量和数据采集：提供提供精确的电气参数计量，如电流，、电压权力等和能源，，用于实时监控和分析系统性能。

灵活的通信选项：支持多种通信协议，包括以太网/IP，Modbus，和 DNP3，与SCADA系统和其他控制网络无缝集成。

模块化设计和可扩展性：采用模块化设计，可灵活配置和可扩展性，以满足不同电力系统应用的特定要求。

IS200TDBSH2ACC-IS230TNDSH2A电力自动化控制卡的应用：

中压和高压馈线智能保护：保护馈线免受过流、过压、欠压、接地故障等异常情况的影响。

变电站和输电网络的实时控制：控制托架切换操作，同步发电机，以及传递负载以确保系统的稳定性和可靠性。

状态监测和故障诊断：实时监控电气参数并分析故障数据，以识别潜在问题，防止故障再次发生，提高系统可靠性。

与SCADA系统的通信和集成：与SCADA系统、控制中心和其他网络设备进行通信，以实现集中监控、控制和保护协调。

数据记录和分析：记录和分析电气数据，以深入了解系统性能、识别趋势并优化配电策略。

IS200TDBSH2ACC-IS230TNDSH2A电源自动化控制卡的典型应用：

保护公用变电站、工业厂房和商业建筑中的馈线。

控制输配电系统中的间隔开关操作。

实时监控电网中的电气参数，以确保系统的稳定性和可靠性。

分析故障数据，防止故障再次发生，提高系统安全性。

与SCADA系统通信，为配电网提供集中控制和态势感知。

记录和分析电气数据，以优化配电策略并提高能源效率。

IS200TDBSH2ACC-IS230TNDSH2A 电力自动化控制卡

The IS200TDBSH2ACC-IS230TNDSH2A Power Automation control card is a multifunctional component designed for use in power automation systems, especially applications involving intelligent protection, control and communication for medium and high voltage distribution networks. It provides a complete set of features to ensure the reliable, efficient and safe operation of the power system.

IS200TDBSH2ACC-IS230TNDSH2A Power automation control card main features:

Advanced Protection features: Provides advanced protection features, including overcurrent, voltage under voltage, differential protection, and range protection, to protect power system components from failures and abnormal conditions.

Real-time control capability: Supports the realization of real-time control of power system components, such as circuit breakers, switches, etc., and capacitor banks, for optimizing network operation and fault management.

Accurate metering and data acquisition: Provides accurate metering of electrical parameters, such as current, voltage power, and energy, for real-time monitoring and analysis of system performance.

Flexible communication options: Supports multiple communication protocols, including Ethernet /IP, Modbus, and DNP3, seamlessly integrating with SCADA systems and other control networks.

Modular design and scalability: The modular design allows flexible configuration and scalability to meet the specific requirements of different power system applications.

IS200TDBSH2ACC-IS230TNDSH2A Power automation control card application:

Intelligent protection of medium and high voltage feeders: Protects feeders from abnormal conditions such as overcurrent, overvoltage, undervoltage, and ground faults.

Real-time control of substations and transmission networks: control bracket switching operations, synchronize generators, and transfer loads to ensure system stability and reliability.

Condition monitoring and fault diagnosis: Monitor electrical parameters and analyze fault data in real time to identify potential problems, prevent failures from recurring, and improve system reliability.

Communication and integration with SCADA systems: Communication with SCADA systems, control centers and other network devices for centralized monitoring, control and protection coordination.

Data logging and analysis: Record and analyze electrical data to gain insight into system performance, identify trends, and optimize power distribution strategies.

Typical applications of IS200TDBSH2ACC-IS230TNDSH2A Power automation control card:

Protect feeders in utility substations, industrial plants and commercial buildings.

Control the operation of the interval switch in the transmission and distribution system.

Real-time monitoring of electrical parameters in the power grid to ensure system stability and reliability.

Analyze failure data to prevent failure from happening again and improve system security.

Communicates with SCADA systems to provide centralized control and situational awareness for the distribution network.

Record and analyze electrical data to optimize power distribution strategies and improve energy efficiency.

IS200TDBSH2ACC-IS230TNDSH2A 电力自动化控制卡
