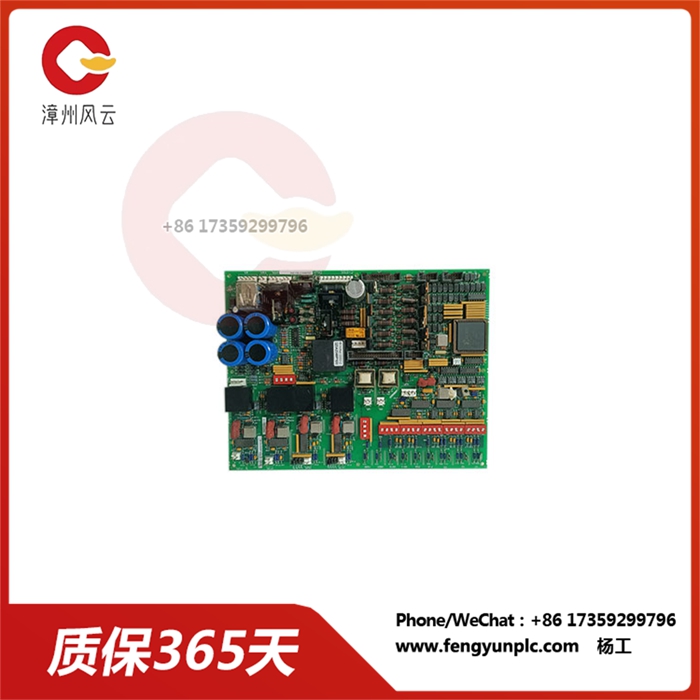

DS200DCFBG1BNC 电路板 Speedtronic Mark V控制系统

DS200DCFBG1BNC 电路板 Speedtronic Mark V控制系统

DS200DCFBG1BNC 是通用电气制造的电源板，用于Mark V系列涡轮机控制系统。 Mark V 是一系列电子控制系统，设计用于燃气、蒸汽和风力涡轮机。

主要特点：

电源：为控制系统的电子设备供电。

备用电池：包括备用电池，以确保在停电时继续运行。

诊断：包括用于监控电源运行状况的诊断功能。

应用：

DS200DCFBG1BNC电源板用于各种应用，包括：

燃气轮机：为发电和其他应用中使用的燃气轮机的控制系统提供动力。

蒸汽轮机：为发电和其他应用中使用的蒸汽轮机的控制系统提供动力。

风力涡轮机：为风能应用中使用的风力涡轮机的控制系统提供动力。

技术规格：

以下是DS200DCFBG1BNC电源板的一些技术规格：

输入电压：120 VAC 或 240 VAC

输出电压：24 VDC

输出电流：20 A

工作温度：-40°C 至 +70°C

储存温度：-55°C 至 +85°C

湿度：5% 至 95% RH，无冷凝

振动：5 g RMS，10 Hz 至 500 Hz

冲击：30 g，11 ms 半正弦脉冲

EMC：符合 IEC 61000-4-2、IEC 61000-4-3 和 IEC 61000-4-6

DS200DCFBG1BNC 电路板 Speedtronic Mark V控制系统

The DS200DCFBG1BNC is a power supply board manufactured by General Electric for the Mark V Series turbine control system. The Mark V is a family of electronic control systems designed for use in gas, steam and wind turbines.

Main features:

Power supply: Power supply for the electronic equipment of the control system.

Backup batteries: Include backup batteries to ensure continued operation in the event of a power outage.

Diagnostics: Includes diagnostics for monitoring power health.

Applications:

The DS200DCFBG1BNC power supply board is used in a variety of applications, including:

Gas turbines: Power the control systems of gas turbines used in power generation and other applications.

Steam turbines: Power the control systems of steam turbines used in power generation and other applications.

Wind turbines: Power the control systems of wind turbines used in wind energy applications.

Technical specifications:

The following are some technical specifications of the DS200DCFBG1BNC power supply board:

Input voltage: 120 VAC or 240 VAC

Output voltage: 24 VDC

Output current: 20 A

Operating temperature: -40°C to +70°C

Storage temperature: -55°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Vibration: 5 g RMS, 10 Hz to 500 Hz

Impact: 30 g, 11 ms half sinusoidal pulse

EMC: compliant with IEC 61000-4-2, IEC 61000-4-3 and IEC 61000-4-6
