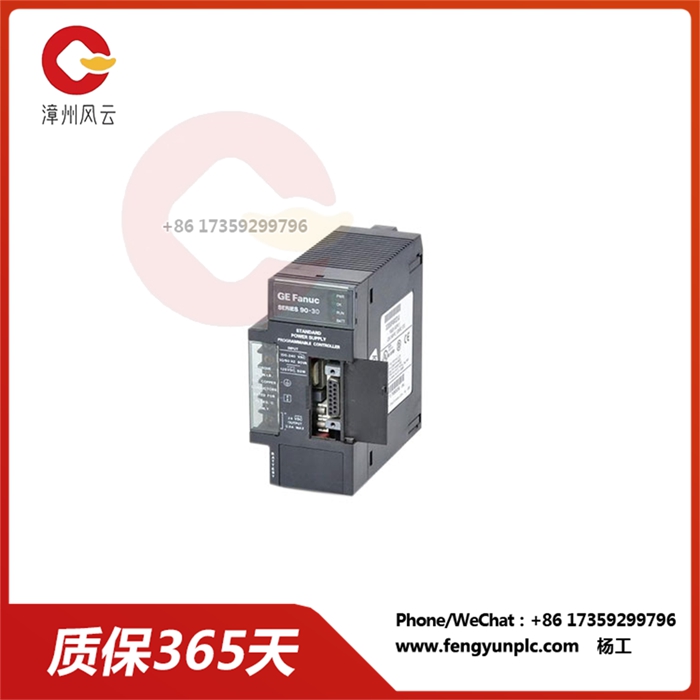

IC693PWR330H是GE Fanuc 90-30系列PLC（可编程逻辑控制器）I/O模块中的高容量电源模块。它为GE Fanuc 90-30 PLC机架和I/O模块提供稳定可靠的电源。该模块的标称输入电压为 120/240 VAC 或 125 VDC，可接受的工作电压范围为 85 至 264 VAC 或 100 至 300 VDC。它提供三种输出电压：

+5 伏直流电：提供稳压 5 VDC 输出，最大电流容量为 30 安培。

+24 VDC 继电器：提供 24 VDC 稳压输出，最大电流容量为 15 安培，主要用于为 90-30 系列输出继电器模块上的电子电路供电。

+24 VDC 隔离：提供稳定 24 VDC 输出，最大电流容量为 20 安培，由一些 90-30 个模块内部使用，也可用于为 24 VDC 输入模块提供外部电源。

IC693PWR330H电源模块集成了多种安全功能，以确保可靠运行并保护连接的设备：

过流保护：每个输出通道都具有内置过流保护功能，可限制电流消耗，并防止在过载或短路时损坏模块和连接的设备。

输入保险丝：内部保险丝可在发生故障或接线问题时保护电源免受过大输入电流的影响。

热保护：该模块集成了热保护电路，用于监控内部温度，并在超过安全工作限值时关闭电源。

放电电压调节：该电源具有受控放电机制，可确保在断电时对内部电容器进行平稳和调节放电，防止突然的电压尖峰和对连接设备的潜在损坏。

IC693PWR330H大容量电源模块的应用：

为 GE Fanuc 90-30 PLC 机架供电：为GE Fanuc 90-30 PLC机架提供稳定可靠的电源，确保所有连接的I/O模块的一致运行。

为外部设备供电：为传感器、执行器、继电器和其他控制设备等外部设备提供稳压 5 VDC 和 24 VDC 电源。

为工业自动化系统提供动力：为工业自动化系统（包括机器控制、过程控制系统和机器人系统）提供可靠的电源。

关键应用：支持电源稳定性和可靠性至关重要的关键应用，例如医疗保健、运输和制造业。

IC693PWR330H 电源模块 离散输出模块

The IC693PWR330H is a high capacity power module in the GE Fanuc 90-30 series PLC (Programmable Logic Controller) I/O module. It provides a stable and reliable power supply for GE Fanuc 90-30 PLC racks and I/O modules. The module has a nominal input voltage of 120/240 VAC or 125 VDC and an acceptable operating voltage range of 85 to 264 VAC or 100 to 300 VDC. It offers three output voltages:

+5 volts DC: provides a regulated 5 VDC output with a maximum current capacity of 30 amps.

+24 VDC relay: Provides 24 VDC regulated output with a maximum current capacity of 15 amps, mainly used to power electronic circuits on the 90-30 series output relay modules.

+24 VDC isolation: Provides a stable 24 VDC output with a maximum current capacity of 20 amps, used internally by some 90-30 modules, and can also be used to provide external power to 24 VDC input modules.

The IC693PWR330H power module integrates several safety features to ensure reliable operation and protect connected devices:

Overcurrent protection: Each output channel has built-in overcurrent protection that limits current consumption and prevents damage to modules and connected devices in the event of overload or short circuit.

Input fuse: The internal fuse protects the power supply from excessive input current in the event of a failure or wiring problem.

Thermal protection: The module incorporates a thermal protection circuit to monitor the internal temperature and turn off the power if safe operating limits are exceeded.

Discharge voltage regulation: This power supply has a controlled discharge mechanism that ensures smooth and regulated discharge of internal capacitors in the event of a power outage, preventing sudden voltage spikes and potential damage to connected devices.

IC693PWR330H Large capacity power module application:

Power the GE Fanuc 90-30 PLC rack: Provides a stable and reliable power supply to the GE Fanuc 90-30 PLC rack to ensure consistent operation of all connected I/O modules.

Power for external devices: Provides regulated 5 VDC and 24 VDC power for external devices such as sensors, actuators, relays, and other control devices.

Power Industrial automation systems: Provide a reliable power source for industrial automation systems, including machine control, process control systems and robotic systems.

Critical applications: Support critical applications where power stability and reliability are critical, such as healthcare, transportation, and manufacturing.
