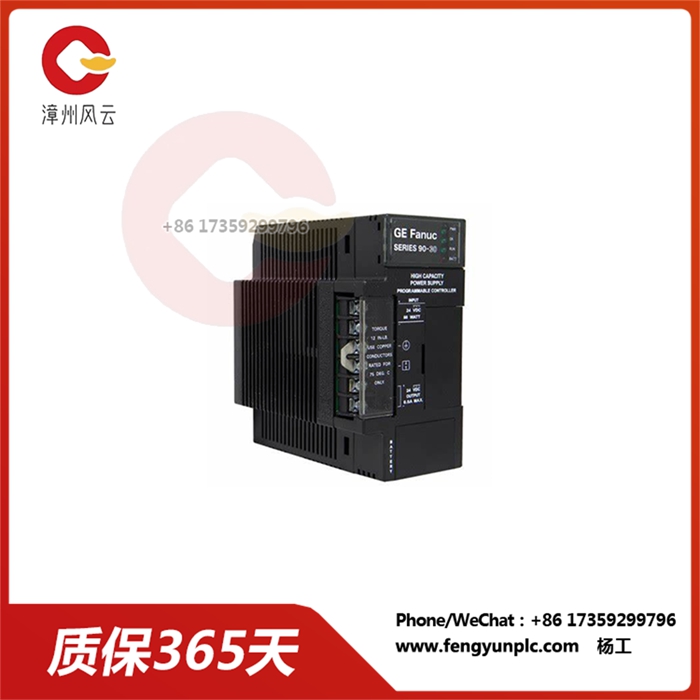

IC693PWR330C是GE Fanuc 90-30系列PLC（可编程逻辑控制器）I/O模块中的大容量电源模块。 它为GE Fanuc 90-30 PLC机架和I/O模块提供稳定可靠的电源。 该模块的标称输入电压为 120/240 VAC 或 125 VDC，可接受的工作电压范围为 85 至 264 VAC 或 100 至 300 VDC。 它提供三种输出电压：

+5 伏直流电：提供稳压 5 VDC 输出，最大电流容量为 30 安培。

+24 VDC 继电器：提供稳定的 24 VDC 输出，最大电流容量为 15 安培，主要用于为 90-30 系列输出继电器模块上的电子电路供电。

+24 VDC 隔离：提供稳压的 24 VDC 输出，最大电流容量为 20 安培，内部供大约 90-30 个模块使用，也可用于为 24 VDC 输入模块提供外部电源。

IC693PWR330C电源模块集成了多种安全功能，以确保可靠运行并保护连接的设备：

过流保护：每个输出通道都具有内置过流保护功能，可限制电流消耗，并防止在过载或短路时损坏模块和连接的设备。

输入保险丝：内部保险丝可在发生故障或接线问题时保护电源免受过大输入电流的影响。

热保护：该模块集成了热保护电路，用于监控内部温度，并在超过安全工作限值时关闭电源。

放电电压调节：该电源具有可控放电机制，可确保在断电时内部电容器的平稳放电，防止突然的电压尖峰和对连接设备的潜在损坏。

IC693PWR330C大容量电源模块的应用：

为 GE Fanuc 90-30 PLC 机架供电：为GE Fanuc 90-30 PLC机架提供稳定可靠的电源，确保所有连接的 I/O 模块的一致运行。

为外部设备供电：为外部设备（为外部设备提供稳压 5 VDC 和 24 VDC 电源，如传感器，驱动器继 电器等控制设备。。

为工业自动化系统供电：为工业自动化系统（包括机器控制、过程控制系统和机器人系统）提供可靠的电源。

关键应用：支持电源稳定性和可靠性至关重要的关键应用，例如医疗保健、运输和制造业。

总体而言，IC693PWR330C 高容量电源模块是 GE Fanuc 90-30 PLC 系统和工业自动化应用的强大可靠的电源解决方案。其高输出容量、多个电压输出、安全功能和可控放电机制使其成为为各种设备供电并确保在关键应用中一致可靠运行的宝贵资产。

IC693PWR330C 输出模块 放电电压平稳

The IC693PWR330C is a large capacity power module in the GE Fanuc 90-30 series PLC (Programmable Logic Controller) I/O module. It provides a stable and reliable power supply for GE Fanuc 90-30 PLC racks and I/O modules. The module has a nominal input voltage of 120/240 VAC or 125 VDC and an acceptable operating voltage range of 85 to 264 VAC or 100 to 300 VDC. It offers three output voltages:

+5 volts DC: provides a regulated 5 VDC output with a maximum current capacity of 30 amps.

+24 VDC relay: Provides a stable 24 VDC output with a maximum current capacity of 15 amps and is primarily used to power electronic circuits on the 90-30 series output relay modules.

+24 VDC isolation: Provides a regulated 24 VDC output with a maximum current capacity of 20 amps, used internally for approximately 90-30 modules, and can also be used to provide external power to 24 VDC input modules.

The IC693PWR330C power module integrates several safety features to ensure reliable operation and protect connected devices:

Overcurrent protection: Each output channel has built-in overcurrent protection that limits current consumption and prevents damage to modules and connected devices in the event of overload or short circuit.

Input fuse: The internal fuse protects the power supply from excessive input current in the event of a failure or wiring problem.

Thermal protection: The module incorporates a thermal protection circuit to monitor the internal temperature and turn off the power if safe operating limits are exceeded.

Discharge voltage regulation: The power supply has a controlled discharge mechanism that ensures smooth discharge of internal capacitors in the event of a power outage, preventing sudden voltage spikes and potential damage to connected devices.

IC693PWR330C Large capacity power module application:

Power the GE Fanuc 90-30 PLC rack: Provides a stable and reliable power supply to the GE Fanuc 90-30 PLC rack to ensure consistent operation of all connected I/O modules.

Power supply for external devices: Provides regulated 5 VDC and 24 VDC power supply for external devices, such as sensors, driver relay and other control devices.

Power for Industrial automation systems: Provide reliable power for industrial automation systems, including machine control, process control systems and robotics systems.

Critical applications: Support critical applications where power stability and reliability are critical, such as healthcare, transportation, and manufacturing.

Overall, the IC693PWR330C high capacity power module is a powerful and reliable power solution for GE Fanuc 90-30 PLC systems and industrial automation applications. Its high output capacity, multiple voltage outputs, safety features and controlled discharge mechanisms make it a valuable asset for powering a wide range of devices and ensuring consistent and reliable operation in critical applications.
