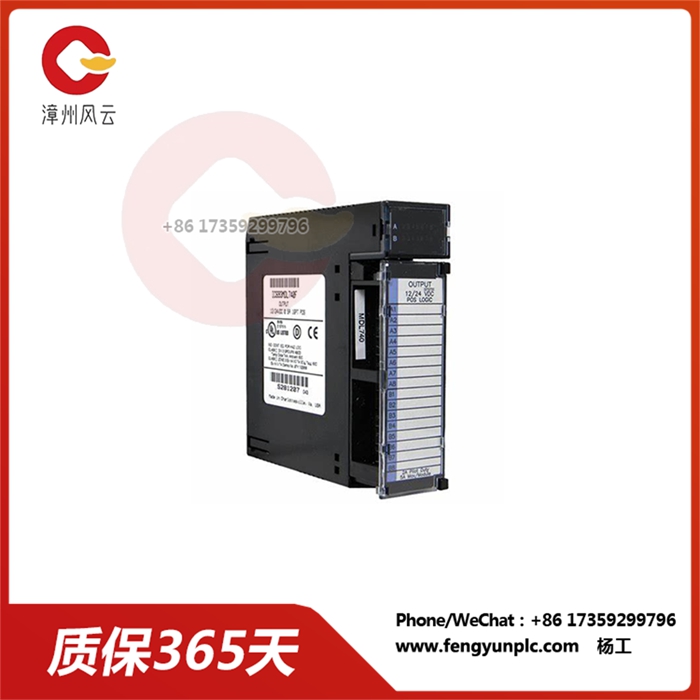

IC693MDL740D 正逻辑DC输出模块

IC693MDL740D 正逻辑DC输出模块

IC693MDL740D是GE Fanuc 90-30系列PLC（可编程逻辑控制器）I/O模块的正逻辑直流输出模块。它提供 7 个独立控制的直流输出通道，每个通道能够在 24 伏直流电压的调节电压下拉出或吸收高达 0.75 安培 （A） 的电流。该模块设计用于工业自动化和控制系统，可与 PLC、继电器和其他控制设备连接。

IC693MDL740D正逻辑直流输出模块的主要特点：

7 个独立控制的直流输出通道：每个通道均可由PLC输出位独立控制，可灵活控制各种器件。

高输出电流：每个通道可提供高达 0.75 安培 （A） 的电源或灌电流，为各种应用提供充足的电源。

稳压 24V DC 输出：所有通道均提供稳定的 24V DC 输出，确保为连接的设备提供一致的电压。

正逻辑操作：该模块采用正逻辑工作，其中高PLC输出位打开相应的通道，低位将其关闭。

LED指示灯：每个通道都有一个 LED 指示灯，当通道处于活动状态时会亮起，从而提供视觉状态反馈。

易于安装：该模块使用标准安装方法可轻松安装到DIN导轨或面板上。

坚固的结构：采用坚固的结构，可承受恶劣的工业环境。

IC693MDL740D正逻辑直流输出模块的应用：

控制继电器和螺线管：用于各种控制应用的开/关继电器和螺线管，例如阀门驱动、电机控制和报警信号。

驱动直流电机：在传送带、泵和风扇等应用中控制直流电机的方向和速度。

工作指示灯和 LED：打开和关闭指示灯、LED 和其他视觉信号设备。

与外部传感器和执行器的接口：提供稳压直流输出，为外部传感器、执行器和其他设备供电和控制。

自定义控制应用程序：使用模块单独控制的输出通道实现自定义控制逻辑。

总体而言，IC693MDL740D Positive Logic 直流输出模块是一款多功能且可靠的 I/O 模块，适用于需要精确控制多个直流输出通道的工业自动化和控制系统。其高输出电流、稳压电压、正逻辑操作、LED 指示灯、易于安装和坚固的结构使其成为与各种设备连接和实现定制控制应用的宝贵资产。

IC693MDL740D 正逻辑DC输出模块

The IC693MDL740D is a positive logic DC output module of GE Fanuc 90-30 series PLC (Programmable Logic Controller) I/O module. It provides seven independently controlled DC output channels, each capable of pulling out or absorbing up to 0.75 amps (A) of current at a regulated voltage of 24 volts DC. The module is designed for use in industrial automation and control systems and can be connected to PLCS, relays and other control devices.

Main features of IC693MDL740D positive logic DC output module:

7 independently controlled DC output channels: Each channel can be independently controlled by the PLC output bit, allowing flexible control of various devices.

High output current: Each channel can provide up to 0.75 amps (A) of power or perfusion current, providing ample power for a variety of applications.

Regulated 24V DC output: All channels provide a stable 24V DC output, ensuring consistent voltage to connected devices.

Positive logic operation: The module works with positive logic, where the high PLC output bit opens the corresponding channel and the low one closes it.

LED indicator: Each channel has an LED indicator that lights up when the channel is active, providing visual status feedback.

Easy installation: The module can be easily mounted onto a DIN rail or panel using standard mounting methods.

Robust construction: Robust construction that can withstand harsh industrial environments.

Application of IC693MDL740D positive logic DC output module:

Control relays and solenoids: On/off relays and solenoids for a variety of control applications, such as valve drive, motor control, and alarm signaling.

Drive DC motors: Control the direction and speed of DC motors in applications such as conveyor belts, pumps and fans.

Operating indicators and leds: Turn on and off indicators, leds, and other visual signaling devices.

Interface with external sensors and actuators: Provides a regulated DC output to power and control external sensors, actuators and other devices.

Custom control application: Implement custom control logic using output channels controlled separately by the module.

Overall, the IC693MDL740D Positive Logic DC output module is a versatile and reliable I/O module for industrial automation and control systems that require precise control of multiple DC output channels. Its high output current, regulated voltage, positive logic operation, LED indicator, ease of installation and rugged construction make it a valuable asset for connecting with a wide range of devices and enabling custom control applications.
