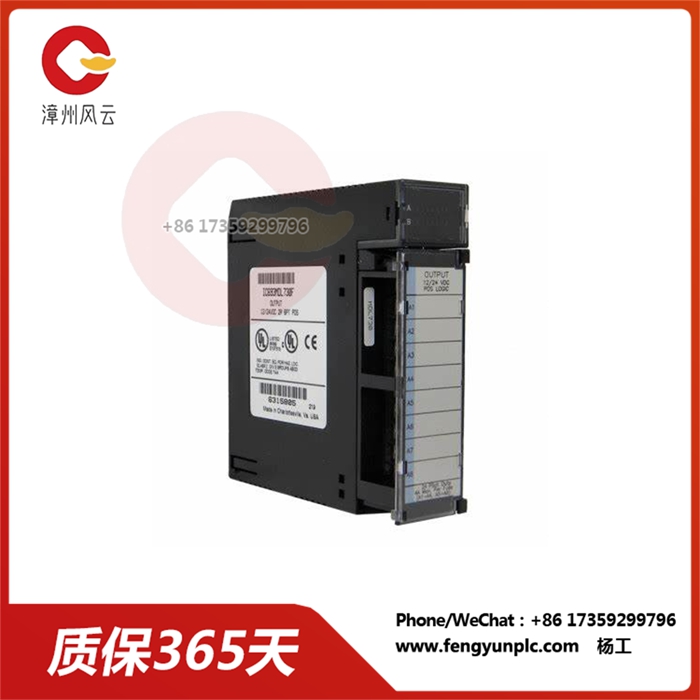

IC693MDL730E分立输出模块是GE Fanuc 90-30系列PLC产品线中的多功能组件。它用作通过打开和关闭电源来控制各种现场设备（如螺线管、继电器和电机启动器）的接口。

IC693MDL730E分立输出模块的主要特性：

16 个输出点：提供16个独立的输出点，每个都能够切换高达 2 安培的负载电流。

隔离输出：具有隔离输出，可防止电气噪声和瞬变，确保系统稳定性和安全性。

高速开关：提供高速开关，典型导通时间为 50 μs，典型关断时间为 50 μs。

LED指示灯：包括每个输出点的 LED 指示灯，以提供有关输出状态的视觉反馈。

短路保护：集成短路保护功能，可在短路时保护模块和连接的设备免受损坏。

过载保护：具有过载保护功能，可防止因过度消耗电流而损坏。

易于安装：采用DIN导轨安装设计，便于安装在工业控制面板中。

IC693MDL730E分立输出模块的应用：

IC693MDL730E分立输出模块适用于各种工业自动化设置，用于控制各种现场设备。包括：

电磁阀控制：切换电磁阀以控制气动阀， actuators,和其他电磁阀操作设备。

继电器控制：激活继电器以控制电机、灯、警报器和其他电气设备。

电机起动器控制：控制电机起动器的电源，用于启动、停止和反转电机。

指示灯控制：切换 LED、lamp 和蜂鸣器等指示灯以提供视觉或听觉信号。

信号系统：控制交通信号灯、报警系统和其他警报应用中的信令系统。

总体而言，IC693MDL730E分立输出模块在工业自动化系统中发挥着至关重要的作用，它为控制各种现场设备提供了可靠且多功能的接口。其 16 个输出点、隔离输出、高速开关、LED 指示灯、保护功能和易于安装，使其成为需要精确高效控制电气设备和信号系统的各种应用中的宝贵资产。

IC693MDL730E  离散输出模块 电子类设备

The IC693MDL730E discrete output module is a versatile component in the GE Fanuc 90-30 series PLC product line. It is used as an interface to control various field devices such as solenos, relays and motor starters by turning on and off power.

The main features of the IC693MDL730E discrete output module are:

16 output points: 16 independent output points are provided, each capable of switching load currents up to 2 amps.

Isolated output: The isolated output prevents electrical noise and transients to ensure system stability and safety.

High-speed switch: Provides high-speed switch, typical on time is 50 μs, typical off time is 50 μs.

LED indicators: Include LED indicators at each output point to provide visual feedback on the status of the output.

Short-circuit protection: Integrated short-circuit protection protects modules and connected devices from damage in the event of a short circuit.

Overload protection: with overload protection function to prevent damage due to excessive current consumption.

Easy installation: DIN rail mounting design for easy installation in industrial control panels.

Application of IC693MDL730E discrete output module:

The IC693MDL730E discrete output module is suitable for various industrial automation Settings to control various field equipment. Includes:

Solenoid Valve control: Switch solenoid valves to control pneumatic valves, actuators, and other solenoid valve operating devices.

Relay control: Activate relays to control motors, lights, alarms, and other electrical equipment.

Motor Starter control: Control the power supply of the motor starter for starting, stopping and reversing the motor.

Indicator control: Switch indicators such as LED, lamp, and buzzer to provide visual or auditory signals.

Signaling systems: Signaling systems that control traffic lights, alarm systems, and other alarm applications.

Overall, the IC693MDL730E discrete output module plays a vital role in industrial automation systems, providing a reliable and versatile interface for controlling a variety of field equipment. Its 16 output points, isolated outputs, high-speed switches, LED indicators, protective features, and ease of installation make it a valuable asset in a variety of applications requiring precise and efficient control of electrical equipment and signaling systems.
