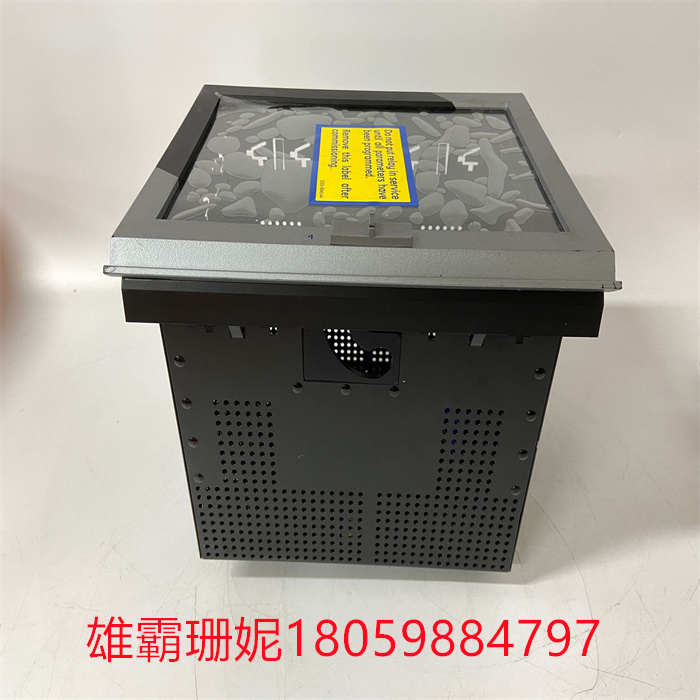

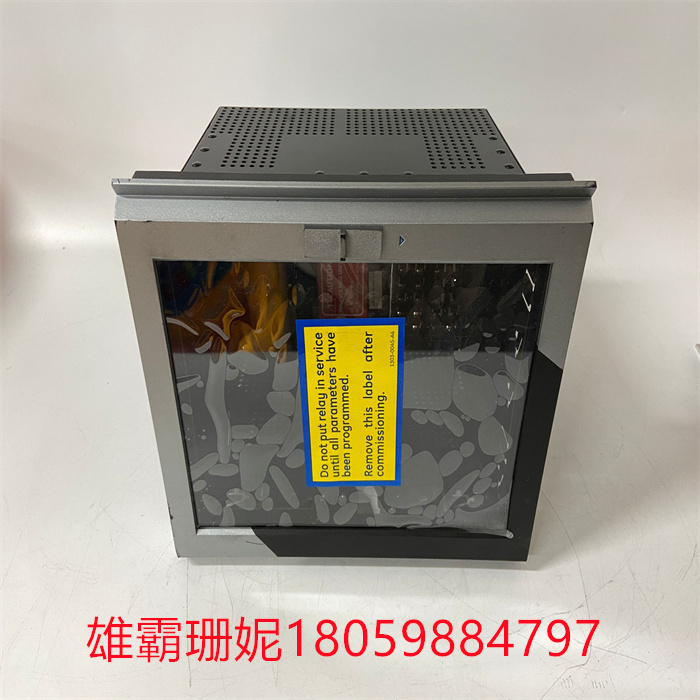

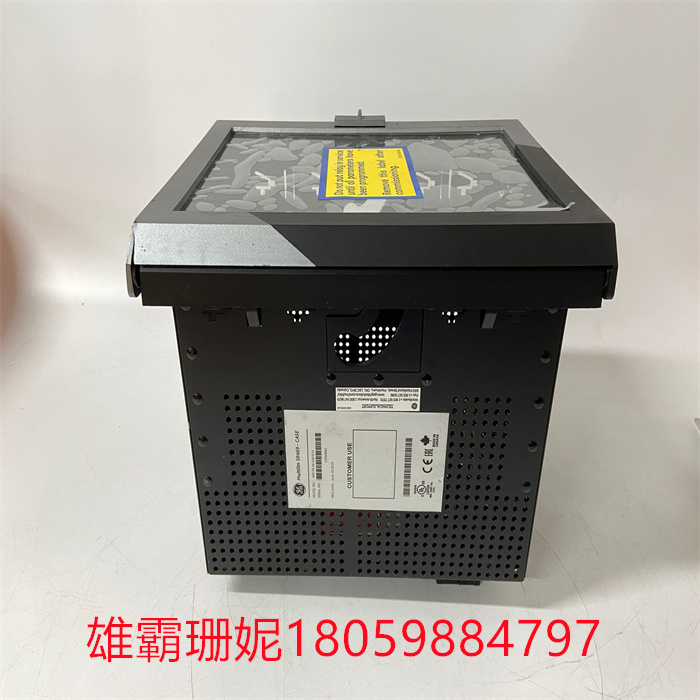

GE 电机保护装置SR469-P5-HI-A20-E-H CPU模块 DCS备件

GE 电机保护装置SR469-P5-HI-A20-E-H CPU模块 DCS备件

469-P5-HI-A20-E-H是一个带有5A相位CT次级的基本继电器装置。该装置的额定电压为90-300伏直流电或70-265伏交流电@ 48-62赫兹。输出为4-20毫安模拟信号。

469-P5-HI-A20-E-H采用标准GE电源管理设计，使用固定外壳和抽出式装置。外壳提供机械保护。该装置在安装过程中不需要任何特殊的通风，可以用湿布清洁。该装置可用于单个或两个剪切面板。

469-P5-HI-A20-E-H的前面板上有一个40字符的显示屏，上面有三组LED指示灯。这些指示器分为469状态指示器、电机状态指示器和输出继电器指示器。在这些下面，该装置有一个编程端口、一个数字键盘和八个附加按钮。

有关469-P5-HI-A20-E-H电机管理继电器的更多详细信息，请参考通用电气公司的原始文件。这包括专门针对该装置的数据表和469电机管理继电器系列的手册。GE继电器手册将提供安装和操作说明，在拆箱前应阅读和理解这些说明。这是为了您的安全以及保护您购买的产品的寿命。

469-P5-HI-A20-E-H is a basic relay unit with a 5A phase CT secondary. The unit is rated for 90-300 volts DC or 70-265 volts AC @ 48-62 Hz. The output is 4-20 mah analog signal.

The 469-P5-HI-A20-E-H features a standard GE power management design, using a fixed housing and a drawout unit. The housing provides mechanical protection. The unit does not require any special ventilation during installation and can be cleaned with a damp cloth. The device can be used for single or two shear panels.

The 469-P5-HI-A20-E-H has a 40-character display on the front panel with three sets of LED indicators. These indicators are divided into 469 status indicators, motor status indicators and output relay indicators. Underneath these, the device has a programming port, a numeric keypad, and eight additional buttons.

For more details about the 469-P5-HI-A20-E-H Motor management relay, please refer to the original GE documentation. This includes a data sheet specifically for the device and a manual for the 469 motor Management relay series. The GE relay manual will provide installation and operation instructions, which should be read and understood before unpacking. This is for your safety and to protect the life of the products you buy.
