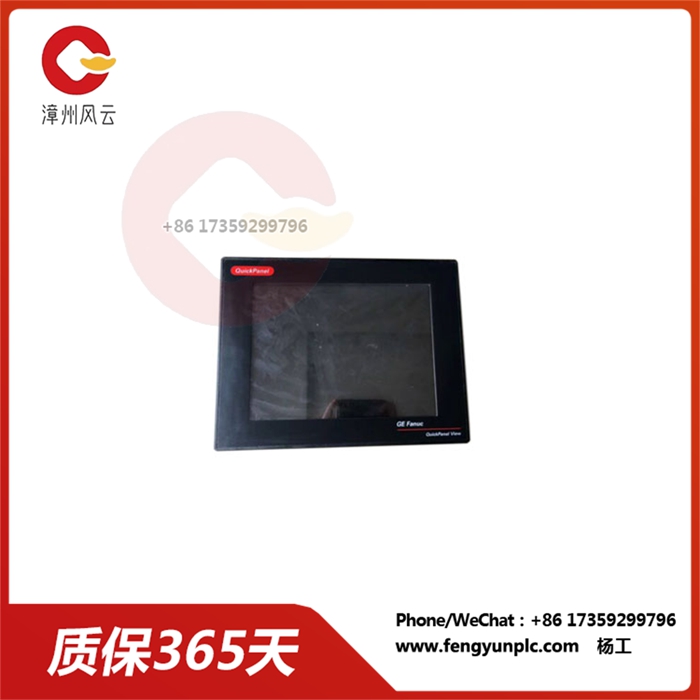

IC754VGF12CTD是GE Fanuc PACSystems RX3i系列中具有模拟输入/输出（I/O）功能的多功能控制和显示面板。它将用户友好的界面与模拟信号处理相结合，使其适用于各种工业监测和控制应用。

IC754VGF12CTD的主要特点：

彩色触摸屏显示：具有 12.1英寸彩色触摸屏显示器，分辨率高，分辨率高，为用户交互提供清晰直观的界面。

可编程功能键：包括六个可编程功能键，可以自定义以执行特定操作或访问常用功能，提高运营效率。

模拟输入/输出：提供 12 个模拟输入和 4 个模拟输出，使该模块能够采集和处理来自传感器的模拟信号并控制外部设备。

通信能力：支持Modbus RTU从站通信，使其能够无缝集成到现有的控制网络中，并与其他控制器或监控和数据采集（SCADA）系统交换数据。

模块化设计：设计为与 RX3i 模块化机箱系统兼容，便便于轻松集成和扩展控制和监控功能。

IC754VGF12CTD的应用：

机器控制：用于机器控制应用以显示机器状态，提供操作员控制，并接收来自传感器的模拟输入。

过程控制：集成到过程控制系统中，以监测和控制温度等过程参数，压力来监视和控制温度并使用模拟输入和输出进行流动。和流量等过程参数。

数据采集：用于数据采集系统，用于收集和显示来自传感器和仪器的实时数据，提供对过程性能或环境条件的洞察。

实验室自动化：用于实验室自动化系统，以控制实验参数、监控数据并提供用户交互。

楼宇自动化：集成到楼宇自动化系统中，使用模拟输入和输出管理暖通空调系统、照明和其他楼宇基础设施。

IC754VGF12CTD 控制显示面板 模拟量输入输出模块

The IC754VGF12CTD is a versatile control and display panel with analog input/output (I/O) functions in the GE Fanuc PACSystems RX3i series. It combines a user-friendly interface with analog signal processing, making it suitable for a variety of industrial monitoring and control applications.

Main features of IC754VGF12CTD:

Color touch Screen display: A 12.1-inch color touch screen display with high resolution and high resolution provides a clear and intuitive interface for user interaction.

Programmable function keys: Includes six programmable function keys that can be customized to perform specific actions or access commonly used functions to improve operational efficiency.

Analog input/output: 12 analog inputs and 4 analog outputs are provided to enable the module to collect and process analog signals from sensors and control external devices.

Communication capability: Support for Modbus RTU slave station communication, enabling it to seamlessly integrate into existing control networks and exchange data with other controllers or supervisory control and data acquisition (SCADA) systems.

Modular design: Designed to be compatible with the RX3i modular chassis system, it is easy to integrate and extend control and monitoring functions.

Application of IC754VGF12CTD:

Machine control: Used in machine control applications to display machine status, provide operator control, and receive analog input from sensors.

Process control: Integrated into process control systems to monitor and control process parameters such as temperature, pressure to monitor and control temperature and flow using analog inputs and outputs. And flow rate and other process parameters.

Data acquisition: For data acquisition systems that collect and display real-time data from sensors and instruments, providing insight into process performance or environmental conditions.

Laboratory automation: Used in laboratory automation systems to control experimental parameters, monitor data, and provide user interaction.

Building automation: Integrated into building automation systems, using analog inputs and outputs to manage HVAC systems, lighting, and other building infrastructure.
