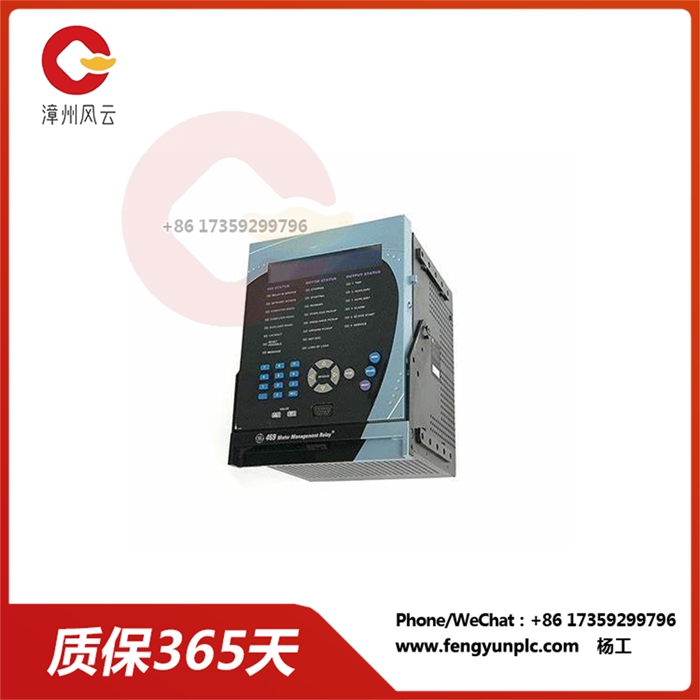

SR465-P5-HI-A20 继电器电机管理装置

SR465-P5-HI-A20 继电器电机管理装置

SR465-P5-HI-A20 继电器电机管理装置

GE Multilin是一款全面的保护和控制设备，设计用于管理和保护各种工业应用中的三相交流电机。SR465-P5-HI-A20 电机管理继电器它提供了广泛的保护功能，监测能力，和控制功能，以确保电机和相关设备的可靠和高效运行。

SR465-P5-HI-A20 电机管理继电器的主要特性：

全面的保护功能：SR465-P5-HI-A20 提供一整套保护功能，以保护电机免受各种故障和异常情况的影响：

过流保护：保护电机免受可能过热和损坏电机绕组的过度电流消耗。

反相保护：防止电机以错误的方向运行，这可能会损坏电机和连接的设备。

欠流保护：检测并防止电机消耗电流不足的情况，指示电机或负载的潜在问题。

接地故障保护：识别并隔离电机电路中的接地故障，防止损坏电机和相关设备。

失速电机保护：检测并防止电机失速，防止过热和损坏电机绕组。

高级监控功能：SR465-P5-HI-A20 提供高级监控功能，可提供有关电机健康和性能的宝贵见解：

电机电流监控：持续监控电机的电流消耗，从而检测异常电流模式和潜在问题。

电机电压监控：跟踪电机的电压水平，识别可能影响电机性能的潜在电压不平衡或欠压情况。

灵活的控制功能：SR465-P5-HI-A20 提供灵活的控制功能，用于管理电机运行并将其集成到控制系统中：

远程启停控制：允许从中央控制面板或SCADA系统远程控制电机的启动和停止操作。

点动控制：能够以小增量控制电机的运动，以实现精确定位或故障排除目的。

速度控制：能够调整电机的速度，以匹配特定的负载要求或工艺条件。

斜坡上升/斜坡下降控制：控制电机的加速和减速速率，以最大限度地减少机械应力并确保平稳运行。

通信能力：SR465-P5-HI-A20 支持各种通信协议，可集成到工业自动化和监控系统中：

国际电工委员会 61850：使用 IEC 61850 变电站自动化标准实现与其他设备的无缝通信。

Modbus：支持使用 Modbus 协议与 SCADA（监控和数据采集）系统和其他工业控制系统进行通信。

DNP3：使用DNP3协议促进与SCADA系统和其他设备的通信，常用于电力行业。

SR465-P5-HI-A20 继电器电机管理装置

GE Multilin is a comprehensive protection and control device designed to manage and protect three-phase AC motors in a variety of industrial applications. SR465-P5-HI-A20 Motor Management Relay It offers a wide range of protection functions, monitoring capabilities, and control functions to ensure reliable and efficient operation of motors and related equipment.

Main features of SR465-P5-HI-A20 Motor Management relay:

Comprehensive protection features: The SR465-P5-HI-A20 offers a complete set of protection features to protect the motor from a variety of faults and anomalies:

Overcurrent protection: Protects the motor from excessive current consumption that can overheat and damage the motor windings.

Reverse phase protection: Prevents the motor from running in the wrong direction, which can damage the motor and connected equipment.

Undercurrent protection: Detects and prevents situations where the motor consumes insufficient current, indicating potential problems with the motor or load.

Ground fault protection: Identify and isolate ground faults in motor circuits to prevent damage to motors and related equipment.

Stall motor protection: Detect and prevent motor stall, prevent overheating and damage to motor windings.

Advanced Monitoring features: The SR465-P5-HI-A20 offers advanced monitoring features that provide valuable insights into motor health and performance:

Motor current monitoring: The current consumption of the motor is continuously monitored to detect abnormal current patterns and potential problems.

Motor voltage monitoring: Track the voltage level of the motor and identify potential voltage imbalances or undervoltage conditions that may affect motor performance.

Flexible control functions: The SR465-P5-HI-A20 provides flexible control functions for managing motor operation and integrating them into the control system:

Remote start-stop control: Allows motor start and stop operations to be controlled remotely from the central control panel or SCADA system.

Point control: The movement of the motor can be controlled in small increments to achieve accurate positioning or troubleshooting purposes.

Speed control: The ability to adjust the motor speed to match specific load requirements or process conditions.

Ramp up/ramp down control: Control motor acceleration and deceleration rates to minimize mechanical stress and ensure smooth operation.

Communication capabilities: The SR465-P5-HI-A20 supports a variety of communication protocols and can be integrated into industrial automation and monitoring systems:

IEC 61850: Use the IEC 61850 substation automation standard for seamless communication with other equipment.

Modbus: Supports communication with SCADA (Supervisory Control and Data Acquisition) systems and other industrial control systems using the Modbus protocol.

DNP3: Uses the DNP3 protocol to facilitate communication with SCADA systems and other devices, commonly used in the power industry.
