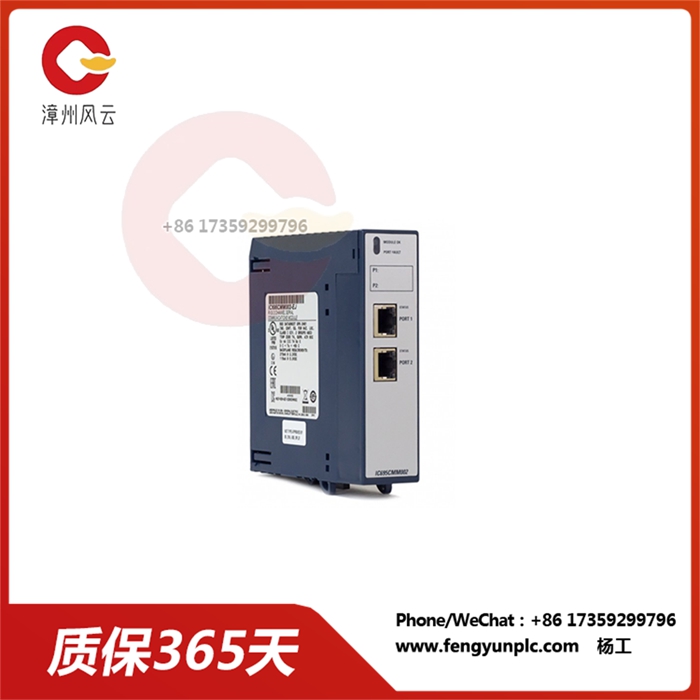

IC695CMM002 串行通信模块

IC695CMM002 串行通信模块

GE Fanuc IC695CMM002 是 GE Fanuc RX3i 系列的串行通信模块。它提供两个 RS-232/RS-485 串行通信端口，可用于连接各种设备，例如 PLC、HMI 和 SCADA 系统。该模块专为在恶劣的工业环境中使用而设计，具有坚固的结构、保形涂层和宽的工作温度范围。

IC695CMM002的主要特点：

• 两个 RS-232/RS-485 串行通信端口：该IC695CMM002具有两个独立的串行通信端口，每个端口都可以配置为 RS-232 或 RS-485 操作。这允许与各种设备进行灵活通信。

• 可选波特率：每个串行端口都可以配置为各种波特率，范围从 300 波特到 19200 波特。这允许与不同的通信协议和设备兼容。

• 数据格式和奇偶校验设置：每个串行端口可以配置为各种数据格式，包括 7 位或 8 位数据、偶数或奇偶校验以及一个或两个停止位。这确保了与不同通信标准的兼容性。

• 软件可配置：该模块可以使用 GE Fanuc 的 Proficy Configuration Studio 软件进行配置。这样可以轻松设置和自定义串行通信端口。

• LED状态指示灯：该模块具有 LED 状态指示灯，可直观地指示通信状态，包括数据传输、数据接收和故障情况。

• 三防漆：该IC695CMM002由保形涂层保护，有助于抵抗湿气、灰尘和其他污染物。

• 宽工作温度范围：该模块可在 -40 至 85°C（-40 至 185°F）的温度范围内运行，使其适用于各种环境。

• 热插拔：该IC695CMM002可以在不中断 PLC 运行的情况下进行热插拔，从而便于维护和故障排除。

IC695CMM002 串行通信模块

GE Fanuc IC695CMM002 is a serial communication module of GE Fanuc RX3i series. It offers two RS-232/RS-485 serial communication ports that can be used to connect various devices, such as PLC, HMI and SCADA systems. Designed for use in harsh industrial environments, the module features a robust construction, conformal coating and a wide operating temperature range.

Key features of IC695CMM002:

Two RS-232/RS-485 serial communication ports: The IC695CMM002 has two independent serial communication ports, each of which can be configured for RS-232 or RS-485 operation. This allows flexible communication with a variety of devices.

Optional baud rates: Each serial port can be configured for a variety of baud rates, ranging from 300 baud to 19200 baud. This allows compatibility with different communication protocols and devices.

Data format and parity Settings: Each serial port can be configured for a variety of data formats, including 7-bit or 8-bit data, even or parity, and one or two stop bits. This ensures compatibility with different communication standards.

Software configurable: The module can be configured using GE Fanuc's Proficy Configuration Studio software. This makes it easy to set up and customize serial communication ports.

LED Status indicator: The module has LED status indicators that visually indicate the status of communication, including data transmission, data reception, and fault conditions.

Tri-resistant paint: The IC695CMM002 is protected by a conformal coating that helps resist moisture, dust and other contaminants.

Wide operating temperature range: The module can operate in a temperature range of -40 to 85°C (-40 to 185°F), making it suitable for a variety of environments.

Hot-swappable: The IC695CMM002 can be hot-swappable without interrupting the operation of the PLC for easy maintenance and troubleshooting.
