IC694MDL754 可编程式控制器模块

IC694MDL754 可编程式控制器模块

IC694MDL754 可编程式控制器模块

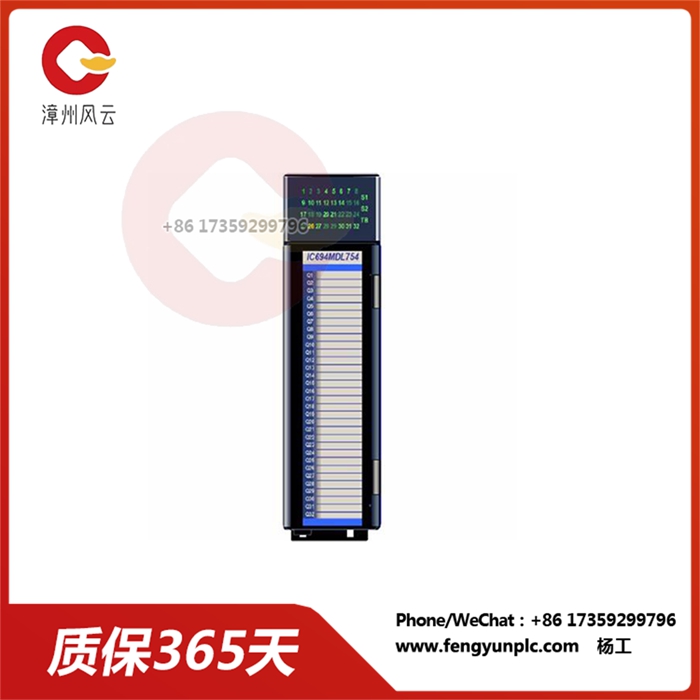

GE Fanuc IC694MDL754 是 GE Fanuc RX3i 系列的 32 点、12/24V 直流正逻辑输出模块。它提供 32 个离散输出点，分为两组，每组 16 个。每个输出点可吸收高达 0.75A 的电流。该模块专为在恶劣的工业环境中使用而设计，具有坚固的结构、保形涂层和宽的工作温度范围。

IC694MDL754的主要特点：

• 32 个独立控制的输出点：该IC694MDL754具有 32 个独立的输出通道，每个通道都有自己的控制电路。这样可以精确控制外部设备，例如继电器、接触器和阀门。

• 12/24V 直流额定电压：该模块可在 12V DC 或 24V DC 电源下运行，适用于广泛的工业应用。

• 正逻辑：该模块使用正逻辑，这意味着当向输入施加高电压时，输出处于活动状态。这与各种控制设备兼容。

• 高输出电流：每个输出点可吸收高达 0.75A 的电流，使其适合驱动各种负载。

• 短路、过流和过热保护：每个输出点都具有针对短路、过流和过热的电子保护。这有助于保护模块和连接的设备免受损坏。

• LED状态指示灯：每个输出通道都有一个 LED 指示灯，当输出处于活动状态时会亮起。这提供了输出状态的可视化指示，简化了故障排除和系统监控。

• 三防漆：该模块由保形涂层保护，有助于抵抗湿气、灰尘和其他污染物。

• 宽工作温度范围：该模块可在 -40 至 85°C（-40 至 185°F）的温度范围内运行，使其适用于各种环境。

• 热插拔：该模块可以在不中断 PLC 运行的情况下进行热插拔，从而便于维护和故障排除。

•

IC694MDL754 可编程式控制器模块

The GE Fanuc IC694MDL754 is a 32-point, 12/24V DC positive logic output module of the GE Fanuc RX3i series. It provides 32 discrete output points, divided into two groups of 16 each. Each output point can absorb up to 0.75A of current. Designed for use in harsh industrial environments, the module features a robust construction, conformal coating and a wide operating temperature range.

Main features of IC694MDL754:

32 independently controlled output points: The IC694MDL754 has 32 independent output channels, each with its own control circuit. This allows precise control of external devices such as relays, contactors and valves.

12/24V DC rated voltage: The module can operate on 12V DC or 24V DC power supplies and is suitable for a wide range of industrial applications.

Positive logic: This module uses positive logic, which means that the output is active when a high voltage is applied to the input. This is compatible with various control devices.

High output current: Each output point can absorb up to 0.75A of current, making it suitable for driving a variety of loads.

Short circuit, overcurrent and overheat protection: Each output point has electronic protection against short circuit, overcurrent and overheat. This helps protect the module and connected devices from damage.

LED status indicator: Each output channel has an LED indicator that lights up when the output is active. This provides a visual indication of the output status, simplifying troubleshooting and system monitoring.

Tri-resistant paint: The module is protected by a conformal coating that helps resist moisture, dust and other contaminants.

Wide operating temperature range: The module can operate in a temperature range of -40 to 85°C (-40 to 185°F), making it suitable for a variety of environments.

Hot-swappable: The module can be hot-swappable without interrupting the operation of the PLC, thus facilitating maintenance and troubleshooting.
