IC694MDL740 数字量模块

IC694MDL740 数字量模块

IC694MDL740 数字量模块

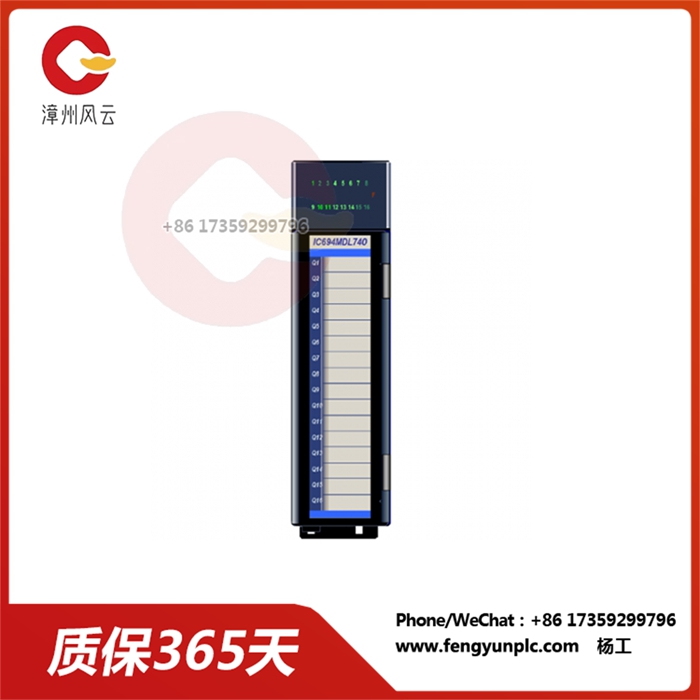

GE Fanuc IC694MDL740 是 GE Fanuc RX3i 系列的 16 点、12/24V 直流正逻辑输出模块。它提供 16 个输出点，分为 2 组，每组 8 个。每个输出点可吸收高达 0.5A 的电流。该模块专为在恶劣的工业环境中使用而设计，具有坚固的结构、保形涂层和宽的工作温度范围。

IC694MDL740的主要特点：

• 16 个独立控制的输出点：该IC694MDL740具有 16 个独立的输出通道，每个通道都有自己的控制电路。这样可以精确控制外部设备，例如继电器、接触器和阀门。

• 12/24V 直流额定电压：该模块可在 12V DC 或 24V DC 电源下运行，适用于广泛的工业应用。

• 正逻辑：该模块使用正逻辑，这意味着当向输入施加高电压时，输出处于活动状态。这与各种控制设备兼容。

• 高输出电流：每个输出点可吸收高达 0.5A 的电流，使其适用于驱动各种负载。

• LED状态指示灯：每个输出通道都有一个 LED 指示灯，当输出处于活动状态时会亮起。这提供了输出状态的可视化指示，简化了故障排除和系统监控。

• 三防漆：该模块由保形涂层保护，有助于抵抗湿气、灰尘和其他污染物。

• 宽工作温度范围：该模块可在 -40 至 85°C（-40 至 185°F）的温度范围内运行，使其适用于各种环境。

• 热插拔：该模块可以在不中断 PLC 运行的情况下进行热插拔，从而便于维护和故障排除。

IC694MDL740 数字量模块

The GE Fanuc IC694MDL740 is a 16-point, 12/24V DC positive logic output module of the GE Fanuc RX3i series. It provides 16 output points divided into 2 groups of 8 each. Each output point can absorb up to 0.5A of current. Designed for use in harsh industrial environments, the module features a robust construction, conformal coating and a wide operating temperature range.

Main features of IC694MDL740:

16 independently controlled output points: The IC694MDL740 has 16 independent output channels, each with its own control circuit. This allows precise control of external devices such as relays, contactors and valves.

12/24V DC rated voltage: The module can operate on 12V DC or 24V DC power supplies and is suitable for a wide range of industrial applications.

Positive logic: This module uses positive logic, which means that the output is active when a high voltage is applied to the input. This is compatible with various control devices.

High output current: Each output point can absorb up to 0.5A of current, making it suitable for driving a variety of loads.

LED status indicator: Each output channel has an LED indicator that lights up when the output is active. This provides a visual indication of the output status, simplifying troubleshooting and system monitoring.

Tri-resistant paint: The module is protected by a conformal coating that helps resist moisture, dust and other contaminants.

Wide operating temperature range: The module can operate in a temperature range of -40 to 85°C (-40 to 185°F), making it suitable for a variety of environments.

Hot-swappable: The module can be hot-swappable without interrupting the operation of the PLC, thus facilitating maintenance and troubleshooting.
