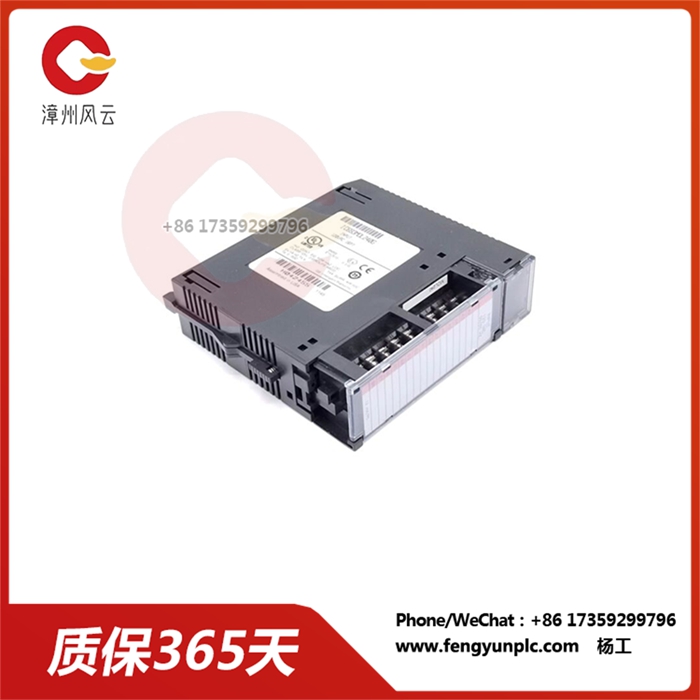

IC693MDL240G数字输入模块是一款多功能模块，设计用于采集和处理工业自动化应用中的数字输入信号。它是 GE Fanuc（现为 Emerson Automation）90-30 系列可编程逻辑控制器 （PLC） 产品线的一部分。

IC693MDL240G的主要特点：

• 16 个单独滤波和去抖动的输入：该IC693MDL240G具有 16 个独立的输入通道，每个通道都有自己的滤波和去抖动电路。这确保了该模块能够抵抗噪声和误触发，从而提供可靠和准确的输入信号检测。

• 120VAC额定电压：该模块设计用于 120VAC 输入信号，使其适用于广泛的工业应用。

• 高输入阻抗：每个输入通道都具有高输入阻抗，从而最大限度地减少了从所连接设备汲取的电流。这可以防止信号失真，并确保与各种输入源的兼容性。

• LED状态指示灯：每个输入通道都有一个 LED 指示灯，当输入处于活动状态时会亮起。这提供了输入状态的视觉指示，简化了故障排除和系统监控。

• 紧凑型设计：IC693MDL240G在通用背板上仅占用一个插槽，从而最大限度地减少了控制柜中的空间需求。

IC693MDL240G的应用：

• 按钮控制：该IC693MDL240G可用于监控按钮、开关和其他手动控制设备的状态。

• 传感器接口：该模块可用于与各种传感器连接，例如接近传感器、限位开关和光电传感器，为过程控制或安全应用获取数据。

• 机器安全：该IC693MDL240G可用于监控安全联锁、急停按钮和其他安全装置，确保机械设备的安全运行。

• 事件检测：该模块可用于检测事件，例如产品存在、输送机移动或开门、触发控制操作或提供状态信息。

IC693MDL240G 数字量输入模块

The IC693MDL240G digital input module is a multifunctional module designed to capture and process digital input signals in industrial automation applications. It is part of the GE Fanuc (now Emerson Automation) Series 90-30 Programmable Logic controller (PLC) product line.

Main features of IC693MDL240G:

16 individually filtered and de-jitter inputs: The IC693MDL240G has 16 independent input channels, each with its own filtering and de-jitter circuits. This ensures that the module is resistant to noise and false triggers, providing reliable and accurate detection of the input signal.

120VAC rated voltage: The module is designed for use with 120VAC input signals, making it suitable for a wide range of industrial applications.

High input impedance: Each input channel has a high input impedance, which minimizes the current drawn from the connected device. This prevents signal distortion and ensures compatibility with various input sources.

LED Status indicator: Each input channel has an LED indicator that lights up when the input is active. This provides a visual indication of the input status, simplifying troubleshooting and system monitoring.

Compact design: The IC693MDL240G occupies only one slot on the universal backplane, minimizing space requirements in the control cabinet.

Application of IC693MDL240G:

Button control: The IC693MDL240G can be used to monitor the status of buttons, switches and other manually controlled devices.

Sensor interface: This module can be used to connect with a variety of sensors, such as proximity sensors, limit switches and photoelectric sensors, to acquire data for process control or safety applications.

Machine safety: The IC693MDL240G can be used to monitor safety interlocks, scram buttons and other safety devices to ensure the safe operation of machinery.

Event detection: This module can be used to detect events such as product presence, conveyor movement or opening, triggering control operations, or providing status information.
