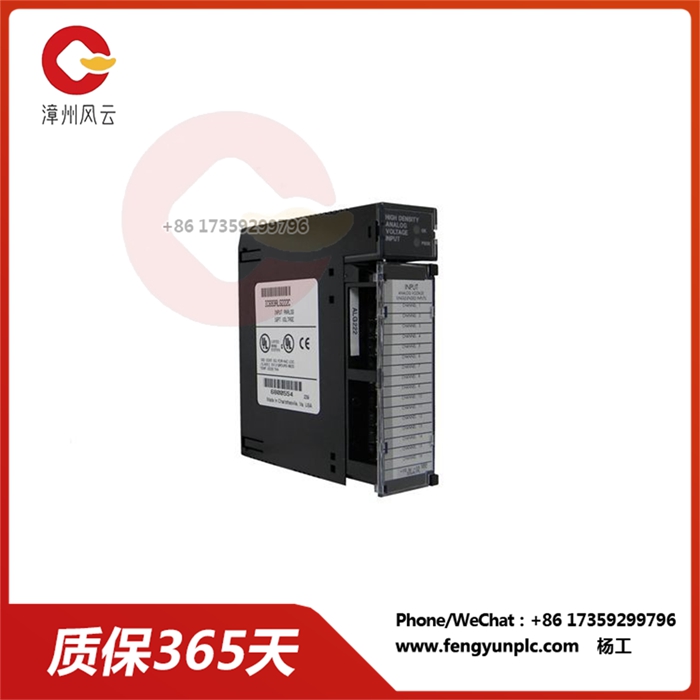

IC693ALG222是用于GE Fanuc 90-30系列PLC的16通道模拟电压输入模块。它旨在将来自各种工业传感器、变送器和其他设备的模拟电压信号转换为可由可编程逻辑控制器 （PLC） 或其他控制系统处理的数字数据。

IC693ALG222模拟电压输入模块的主要特点：

• 16 个单端或 8 个差分输入通道：该IC693ALG222提供 16 个单端或 8 个差分输入通道，每个通道能够接受 -10 V 至 +10 V 范围内的模拟电压信号。

• 高分辨率：它提供 12 位的高分辨率，确保将模拟电压信号准确转换为数字数据。

• 转换时间短：该模块的单端通道转换时间为 6 毫秒，差分通道的转换时间为 3 毫秒，可实现快速响应的数据采集。

• 可扩展的输入范围：输入范围可配置为0 V至10 V单极性或-10 V至+10 V双极性，可灵活适应不同的传感器类型和信号电平。

• 诊断 LED：状态 LED（INT PWR LED、OK LED 和 IN LED）分别指示输入电源的存在、模块的正常运行以及每个输入通道的状态。

IC693ALG222 模拟电压输入模块 工业系统模块

IC693ALG222 is a 16-channel analog voltage input module for GE Fanuc 90-30 series PLCS. It is designed to convert analog voltage signals from various industrial sensors, transmitters, and other devices into digital data that can be processed by programmable logic controllers (PLCS) or other control systems.

Main features of IC693ALG222 analog voltage input module:

16 single-ended or 8 differential input channels: The IC693ALG222 provides 16 single-ended or 8 differential input channels, each capable of accepting analog voltage signals in the range of -10 V to +10 V.

High resolution: It provides 12-bit high resolution, ensuring accurate conversion of analog voltage signals into digital data.

Short conversion time: The module's single-ended channel conversion time is 6 milliseconds, and the differential channel conversion time is 3 milliseconds, enabling fast response data acquisition.

Scalable input range: The input range can be configured as 0 V to 10 V unipolar or -10 V to +10 V bipolar, allowing flexibility to adapt to different sensor types and signal levels.

Diagnostic leds: Status leds (INT PWR LED, OK LED, and IN LED) indicate the presence of input power, the normal operation of the module, and the status of each input channel, respectively.
