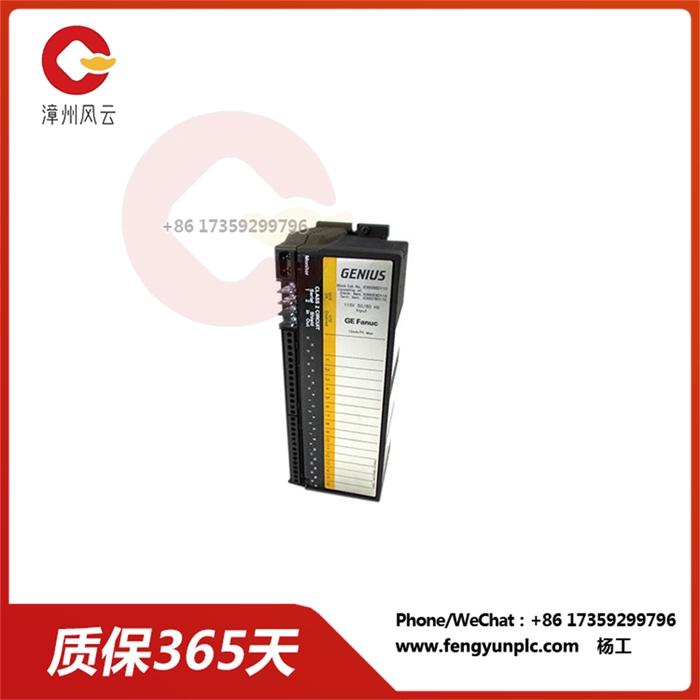

IC660PRD021是 GE Fanuc（现为 Emerson Automation）的 VersaMax I/O 平台内具有冗余的 Profibus DP 通信模块。它使 VersaMax I/O 系统能够与 Profibus DP 网络进行通信，从而使它们能够与基于 Profibus 的控制系统和设备无缝集成。此外，它还提供冗余通信功能，以确保关键应用中的高可用性和容错能力。

具有冗余功能的 IC660PRD021 Profibus DP 通信模块的主要特点：

• Profibus DP从设备：IC660PRD021作为 Profibus DP 从设备运行，能够接收和响应来自 Profibus DP 主设备的 Profibus DP 消息。

• 冗余通信通道：它具有两个冗余的 Profibus DP 通信通道，可在一个通道发生故障时提供备份。

• 自动故障转移：如果主通道发生故障，模块会自动切换到备用通道，确保与Profibus DP网络的通信不间断。

• GSD 文件支持：它带有一个 GSD（设备描述）文件，提供有关模块配置和参数的详细信息，可轻松与 Profibus DP 主设备集成。

• 每个网络最多 127 个从站：该模块在单个 Profibus DP 网络上最多支持 127 个从设备，允许连接大量设备。

• 波特率选择：波特率可在 9600 bps 和 12 Mbit/s 之间选择，以适应各种网络需求。

• 诊断 LED：状态 LED（INT PWR LED、OK LED、TX/RX LED 和 ERR LED）分别指示输入电源的存在、模块的正常运行、Profibus DP 网络通信状态和通信错误。

具有冗余功能的IC660PRD021 Profibus DP通信模块的应用：

• 关键控制系统：该IC660PRD021通常用于需要不间断通信的关键控制系统，例如制造、发电和运输应用。

• 过程控制系统：它可以用于过程控制系统，在这些系统中，冗余对于保持过程完整性和防止停机至关重要。

• 安全系统：该模块适用于通信故障可能造成严重后果的安全系统，确保人员和设备的安全。

• 基础设施控制系统：它可用于基础设施控制系统，例如楼宇自动化系统和交通控制系统，在这些系统中，冗余对于保持系统正常运行时间和可靠性非常重要。

IC660PRD021 mofset冗余模块 电工电气

The IC660PRD021 is a redundant Profibus DP communication module within GE Fanuc's (now Emerson Automation) VersaMax I/O platform. It enables VersaMax I/O systems to communicate with Profibus DP networks, allowing them to integrate seamlessly with Profibus-based control systems and devices. In addition, it provides redundant communication capabilities to ensure high availability and fault tolerance in critical applications.

The main features of the redundant IC660PRD021 Profibus DP communication module are:

Profibus DP Slave device: The IC660PRD021 operates as a Profibus DP slave device and is capable of receiving and responding to Profibus DP messages from the Profibus DP master device.

Redundant communication channels: It has two redundant Profibus DP communication channels that provide backup in case one channel fails.

Automatic failover: If the main channel fails, the module automatically switches to the standby channel, ensuring uninterrupted communication with the Profibus DP network.

GSD file support: It comes with a GSD (Device Description) file that provides detailed information about module configuration and parameters and can be easily integrated with the Profibus DP master device.

Up to 127 slave stations per network: This module supports up to 127 slave devices on a single Profibus DP network, allowing a large number of devices to be connected.

Baud rate selection: The baud rate can be selected between 9600 bps and 12 Mbit/s to suit various network requirements.

Diagnostic leds: Status leds (INT PWR LED, OK LED, TX/RX LED, and ERR LED) indicate the presence of input power, normal module operation, Profibus DP network communication status, and communication errors, respectively.

Application of IC660PRD021 Profibus DP communication module with redundancy function:

Critical control systems: The IC660PRD021 is commonly used in critical control systems that require uninterrupted communication, such as manufacturing, power generation, and transportation applications.

Process control systems: It can be used in process control systems where redundancy is critical to maintaining process integrity and preventing downtime.

Security system: This module is suitable for security systems where communication failures may cause serious consequences, ensuring the safety of personnel and equipment.

Infrastructure control systems: It can be used in infrastructure control systems, such as building automation systems and traffic control systems, where redundancy is important to maintain system uptime and reliability.
