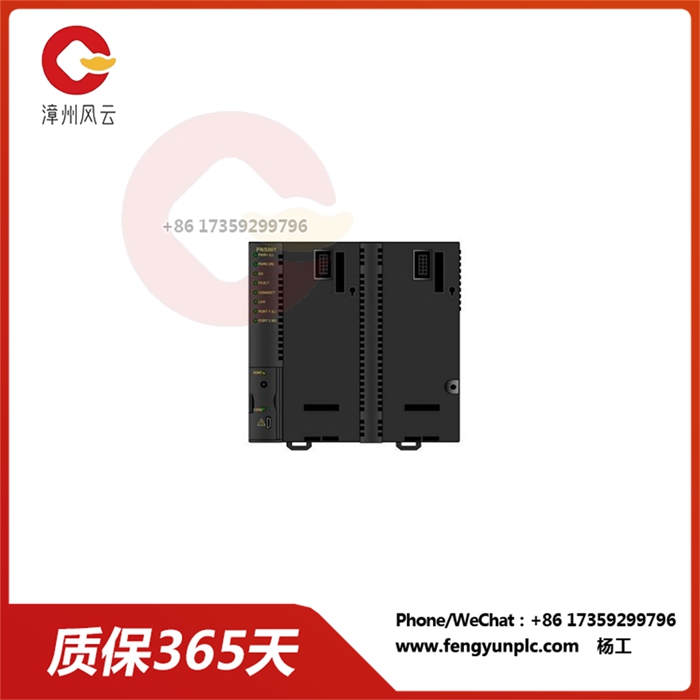

IC200PNS001确实是 GE Fanuc（现为艾默生自动化解决方案的一部分）的 VersaMax PROFINET 扫描仪 （PNS） 模块。它用作网络接口单元，支持 VersaMax I/O 节点和 PROFINET IO 控制器之间的远程通信。该模块在将 VersaMax I/O 系统集成到基于 PROFINET 的工业控制网络中起着至关重要的作用。

主要特点：

• PROFINET从设备：作为PROFINET从设备运行，与PROFINET IO控制器通信以交换数据和控制参数。

• 两个以太网端口：配备两个RJ-45以太网端口，支持铜缆和光纤电缆连接，确保网络连接的灵活性。

• 自动感应网络类型：自动检测网络类型（10/100 Mbps）并相应地调整通信参数，简化网络配置。

• 介质冗余：支持两个以太网端口的媒体冗余，确保在电缆或端口发生故障时的网络弹性。

• 热插拔功能：在不中断网络运行的情况下实现模块的热插拔，最大限度地减少维护或升级期间的停机时间。

应用：

• 工业自动化系统：主要用于工业自动化系统，将 VersaMax I/O 节点连接到 PROFINET IO 控制器，实现 PLC、控制器和其他智能设备之间的数据交换和控制。

• 过程控制系统：用于过程控制系统，将监控和控制各种过程参数（如温度、压力、流量和液位）的 VersaMax I/O 模块与基于 PROFINET 的控制系统集成在一起。

• 制造自动化：集成到制造自动化系统中，通过基于 PROFINET 的控制系统连接 VersaMax I/O 模块，以监控机器状况、控制执行器并优化生产过程。

• 环境监测系统：用于环境监测系统，用于连接 VersaMax I/O 模块，这些模块收集环境数据、控制通风系统并确保符合基于 PROFINET 的控制系统的法规要求。

• 测试和测量系统：用于测试和测量系统，用于连接与测试设备接口的 VersaMax I/O 模块，采集数据，并通过基于 PROFINET 的控制系统支持测试自动化。

IC200PNS001  逻辑的串行通信模块

The IC200PNS001 is indeed a VersaMax PROFINET scanner (PNS) module from GE Fanuc (now part of Emerson Automation Solutions). It functions as a network interface unit and supports remote communication between VersaMax I/O nodes and PROFINET IO controllers. This module plays a crucial role in integrating VersaMax I/O systems into ProFINET-based industrial control networks.

Main features:

PROFINET Slave device: Operates as a PROFINET slave device, communicating with the PROFINET IO controller to exchange data and control parameters.

Two Ethernet ports: Equipped with two RJ-45 Ethernet ports, supporting copper and fiber cable connections, ensuring network connectivity flexibility.

Automatically sensing network type: Automatically detects network type (10/100 Mbps) and adjusts communication parameters accordingly to simplify network configuration.

Media redundancy: Supports media redundancy for two Ethernet ports to ensure network resilience in the event of cable or port failure.

Hot Swap function: Enables hot swap of modules without interrupting network operation, minimizing downtime during maintenance or upgrades.

Applications:

Industrial Automation systems: Mainly used in industrial automation systems, VersaMax I/O nodes are connected to PROFINET IO controllers for data exchange and control between PLCS, controllers and other intelligent devices.

Process control system: For process control systems, the VersaMax I/O module for monitoring and controlling various process parameters such as temperature, pressure, flow and level is integrated with the ProFINET-based control system.

Manufacturing automation: Integrated into the manufacturing automation system, VersaMax I/O modules are connected via a ProFINET-based control system to monitor machine condition, control actuators and optimize production processes.

Environmental Monitoring systems: Used for environmental monitoring systems that are connected to VersaMax I/O modules that collect environmental data, control ventilation systems and ensure compliance with regulatory requirements for ProFINET-based control systems.

Test and measurement system: VersaMax I/O module for the test and measurement system, for the interface with the test equipment, to collect data and support test automation through the ProFINET-based control system.
