IC200ALG320 4点模拟电流输出模块 VersaMax I/O系列

IC200ALG320 4点模拟电流输出模块 VersaMax I/O系列

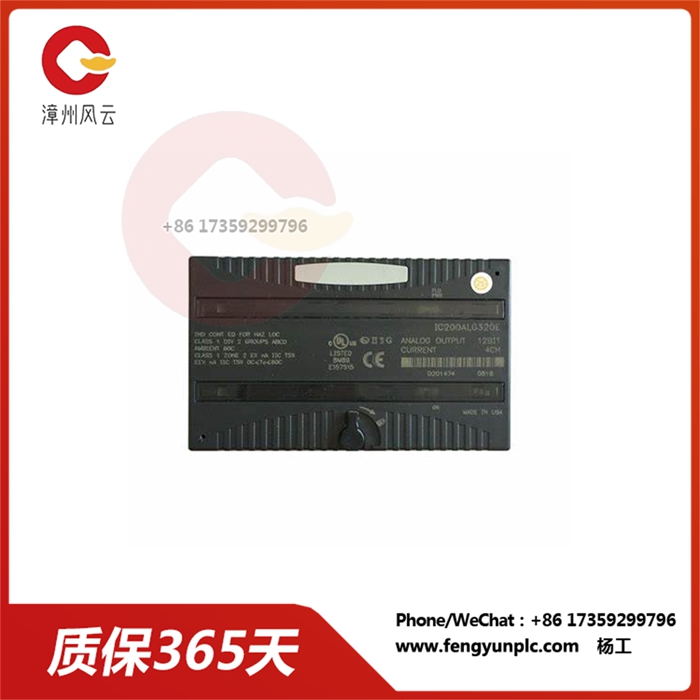

该IC200ALG320是 GE Fanuc（现隶属于艾默生自动化解决方案）的 VersaMax I/O 系列的 4 通道模拟电流输出模块。它设计用于工业自动化和控制系统，为控制执行器（如阀门、电机和加热器）提供模拟输出信号。该模块具有四个独立的模拟输出通道，每个通道能够产生 4-20 mA 的电流信号。输出信号是根据从PLC或控制器接收的数据生成的，从而可以精确控制执行器和其他设备。

主要特点：

• 4 个独立的模拟输出通道：提供四个独立的模拟输出通道，用于控制单独的执行器或设备。

• 4-20 mA 电流输出：产生标准的 4-20 mA 电流信号，与各种工业执行器和控制设备兼容。

• 16 位分辨率：提供 16 位分辨率，可实现精确的模拟输出生成，确保对执行器的精确控制。

• 非易失性存储器：具有非易失性存储器，即使在断电期间也能存储配置数据，确保可靠运行。

• 诊断：提供诊断功能来检测输出故障和模块状态，确保系统完整性。

应用：

• 工业自动化系统：主要用于工业自动化系统，为各种应用中的控制执行器提供模拟输出信号，包括过程控制、机器控制和环境控制。

• 过程控制系统：用于过程控制系统，通过向控制阀、泵和其他执行器提供模拟输出信号来调节过程参数，如温度、压力、流量和液位，确保一致的产品质量和高效运行。

• 制造自动化：集成到制造自动化系统中，通过向电机、驱动器和其他执行器提供模拟输出信号来控制机器操作，例如速度、扭矩和位置，从而实现生产过程的精确控制和优化。

• 环境监测系统：用于环境监测系统，通过提供基于环境数据的模拟输出信号来控制通风系统、泵和其他设备，确保环境保护和法规遵从性。

• 测试和测量系统：用于测试和测量系统，提供模拟输出信号，以控制测试设备并模拟过程条件，从而实现产品测试、研究和开发。

好处：

• 精确控制：通过提供高分辨率模拟输出信号，有助于对执行器和设备进行精确控制。

• 提高系统效率：通过精确控制工艺参数和机器运行、优化资源利用率和降低能耗，提高系统效率。

• 提高产品质量：通过确保一致的工艺参数和精确控制制造过程，有助于提高产品质量。

• 降低维护成本：通过对执行器进行精确控制，防止磨损并减少频繁维修的需要，最大限度地降低维护成本。

• 可扩展的解决方案：提供可扩展的解决方案，通过根据需要添加或删除模块来适应不断变化的控制要求。

总体而言，IC200ALG320模拟电流输出模块已成为各种工业自动化、过程控制、制造、环境监测以及测试和测量应用的多功能且可靠的组件。其四个独立的模拟输出通道、4-20 mA 电流输出、16 位分辨率、非易失性存储器、诊断功能，有助于精确控制、提高系统效率、提高产品质量、降低维护成本和可扩展性，使其成为在苛刻的工业环境中实现执行器和设备精确控制的宝贵资产。

IC200ALG320 4点模拟电流输出模块 VersaMax I/O系列

The IC200ALG320 is a 4-channel analog current output module in the VersaMax I/O family of GE Fanuc (now part of Emerson Automation Solutions). It is designed for use in industrial automation and control systems to provide analog output signals for control actuators such as valves, motors and heaters. The module has four independent analog output channels, each capable of generating a current signal of 4-20 mA. The output signal is generated from the data received from the PLC or controller, allowing precise control of actuators and other devices.

Main features:

4 independent analog output channels: Four independent analog output channels are provided to control individual actuators or devices.

4-20 mA current output: Produces a standard 4-20 mA current signal compatible with a wide range of industrial actuators and control devices.

16-bit resolution: Provides 16-bit resolution for accurate analog output generation, ensuring precise control of the actuator.

Non-volatile memory: With non-volatile memory, configuration data can be stored even during power outages, ensuring reliable operation.

Diagnostics: Provides diagnostic functions to detect output faults and module status to ensure system integrity.

Applications:

Industrial automation systems: Mainly used in industrial automation systems to provide analog output signals for control actuators in a variety of applications, including process control, machine control and environmental control.

Process control systems: Used in process control systems to regulate process parameters such as temperature, pressure, flow and level by providing analog output signals to control valves, pumps and other actuators, ensuring consistent product quality and efficient operation.

Manufacturing automation: Integrated into manufacturing automation systems to control machine operations such as speed, torque and position by providing analog output signals to motors, drives and other actuators, enabling precise control and optimization of production processes.

Environmental Monitoring systems: Used in environmental monitoring systems to control ventilation systems, pumps and other equipment by providing analog output signals based on environmental data to ensure environmental protection and regulatory compliance.

Test and measurement systems: For test and measurement systems that provide analog output signals to control test equipment and simulate process conditions for product testing, research and development.

Benefits:

Precise control: By providing a high-resolution analog output signal, it facilitates precise control of actuators and devices.

Improve system efficiency: Improve system efficiency by precisely controlling process parameters and machine operation, optimizing resource utilization and reducing energy consumption.

Improve product quality: Help improve product quality by ensuring consistent process parameters and precise control of the manufacturing process.

Reduce maintenance costs: Minimize maintenance costs with precise actuator control that prevents wear and reduces the need for frequent servicing.

Scalable solutions: Provide scalable solutions that adapt to changing control requirements by adding or removing modules as needed.

Overall, the IC200ALG320 analog current output module has become a versatile and reliable component for a variety of industrial automation, process control, manufacturing, environmental monitoring, and test and measurement applications. Its four independent analog output channels, 4-20 mA current output, 16-bit resolution, non-volatile memory, diagnostic capabilities contribute to precise control, increased system efficiency, improved product quality, reduced maintenance costs, and scalability, making it a valuable asset for precise control of actuators and equipment in demanding industrial environments.
