IC200ALG240 通讯模块

IC200ALG240 通讯模块

IC200ALG240 通讯模块

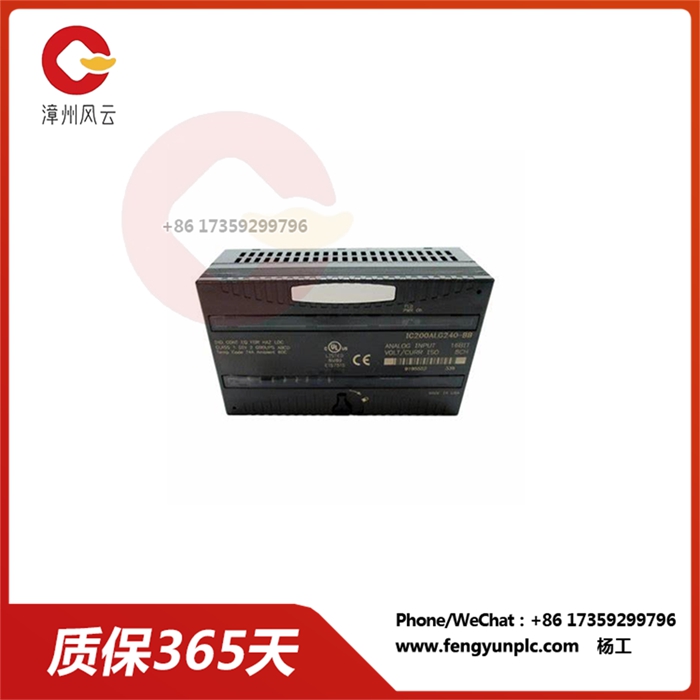

IC200ALG240是 GE Fanuc（现为艾默生自动化解决方案的一部分）的 VersaMax 系列模拟输入模块。它设计用于工业自动化和控制系统，从各种现场设备（如传感器、变送器和传感器）采集模拟数据。该模块提供 8 个隔离式模拟输入通道，每个通道能够接受 4-20 mA 电流信号或 0-10 VDC 电压信号。然后，转换后的模拟数据被传输到PLC或控制器进行处理和控制。

主要特点：

• 8 个隔离模拟输入通道：支持 8 个隔离模拟输入通道，可同时监控多个现场设备。

• 电流/电压输入模式：接受 4-20 mA 电流信号和 0-10 VDC 电压信号，可灵活连接各种传感器和变送器。

• 16 位分辨率：提供 16 位分辨率，可实现高精度数据转换，确保模拟信号的精确表示。

• 信号滤波：集成信号滤波功能，可消除噪声和干扰，保证数据完整性。

• 诊断：提供诊断功能，可检测明线、过/低范围情况和电源损耗，确保可靠运行。

应用：

• 工业自动化系统：主要用于工业自动化系统，从传感器获取模拟数据，监测各种过程参数，如温度、压力、流量和液位。

• 过程控制系统：用于过程控制系统，收集数据，用于实时监测和控制过程变量，确保一致的产品质量和高效运行。

• 制造自动化：集成到制造自动化系统中，从传感器收集数据，监测机器状况，如振动、速度和扭矩，用于预测性维护和性能优化。

• 环境监测系统：用于环境监测系统，获取环境参数数据，如空气质量、水质和噪音水平，以实现环境保护和法规遵从性。

• 测试和测量系统：用于测试和测量系统，从模拟传感器收集数据，用于产品测试、研究和开发。

好处：

• 改进的过程控制：通过提供准确可靠的模拟数据，有助于改善过程控制，从而实现对过程参数的精确监测和控制。

• 提高系统效率：通过基于模拟传感器的实时数据优化过程操作，提高系统效率。

• 降低维护成本：通过启用基于传感器数据的预测性维护，防止意外故障和停机，从而最大限度地降低维护成本。

• 提高产品质量：通过确保一致的工艺参数和产品规格，有助于提高产品质量。

• 减少对环境的影响：通过监测和控制环境参数，最大限度地减少污染和浪费，促进减少对环境的影响。

IC200ALG240 通讯模块

The IC200ALG240 is the VersaMax family of analog input modules from GE Fanuc (now part of Emerson Automation Solutions). It is designed for industrial automation and control systems to collect analog data from a variety of field devices such as sensors, transmitters and sensors. The module offers eight isolated analog input channels, each capable of accepting 4-20 mA current signals or 0-10 VDC voltage signals. The converted analog data is then transferred to a PLC or controller for processing and control.

Main features:

Eight isolated analog input channels: Supports eight isolated analog input channels to monitor multiple field devices simultaneously.

Current/voltage input mode: Accepts 4-20 mA current signal and 0-10 VDC voltage signal, flexible connection of various sensors and transmitters.

16-bit resolution: Provides 16-bit resolution for high-precision data conversion, ensuring accurate representation of analog signals.

Signal filtering: Integrated signal filtering function can eliminate noise and interference to ensure data integrity.

Diagnostics: Provides diagnostics to detect open line, over/low range conditions and power losses to ensure reliable operation.

Applications:

Industrial automation systems: Mainly used in industrial automation systems to obtain analog data from sensors to monitor various process parameters such as temperature, pressure, flow and level.

Process control systems: For process control systems that collect data for real-time monitoring and control of process variables to ensure consistent product quality and efficient operation.

Manufacturing automation: Integrated into manufacturing automation systems, data is collected from sensors to monitor machine conditions such as vibration, speed and torque for predictive maintenance and performance optimization.

Environmental monitoring systems: Used in environmental monitoring systems to obtain data on environmental parameters such as air quality, water quality and noise levels for environmental protection and regulatory compliance.

Test and measurement systems: For test and measurement systems that collect data from analog sensors for product testing, research and development.

Benefits:

Improved process control: By providing accurate and reliable simulation data, it helps to improve process control, enabling accurate monitoring and control of process parameters.

Improve system efficiency: Improve system efficiency by optimizing process operations with real-time data based on analog sensors.

Reduce maintenance costs: Minimize maintenance costs by enabling predictive maintenance based on sensor data to prevent unplanned failures and downtime.

Improve product quality: Help improve product quality by ensuring consistent process parameters and product specifications.

Reduce environmental impact: Promote the reduction of environmental impact by monitoring and controlling environmental parameters to minimize pollution and waste.
