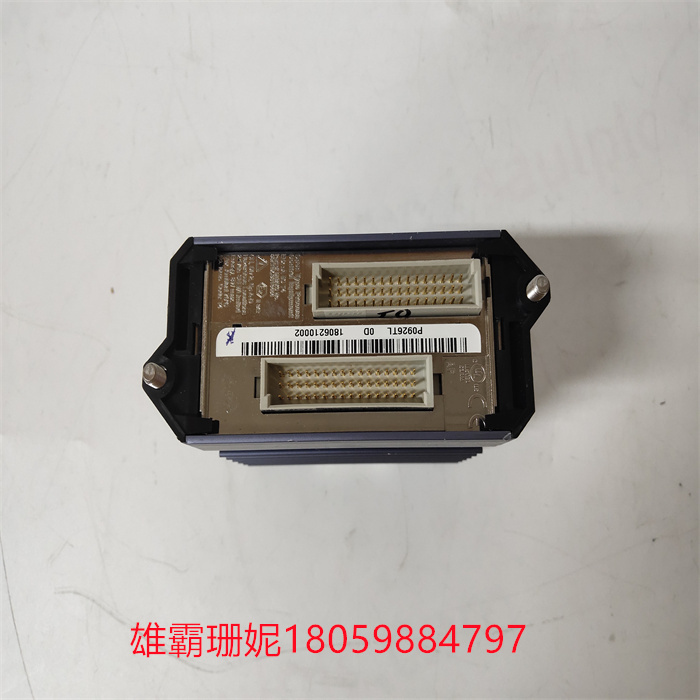

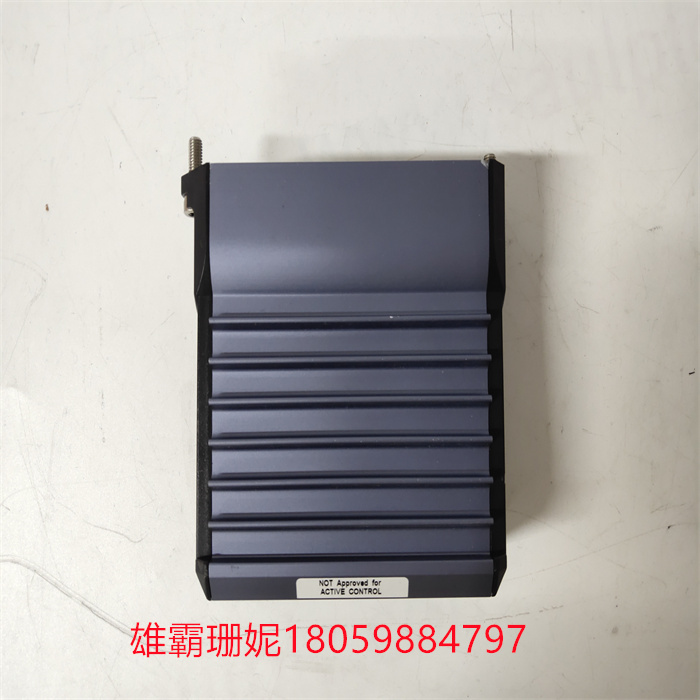

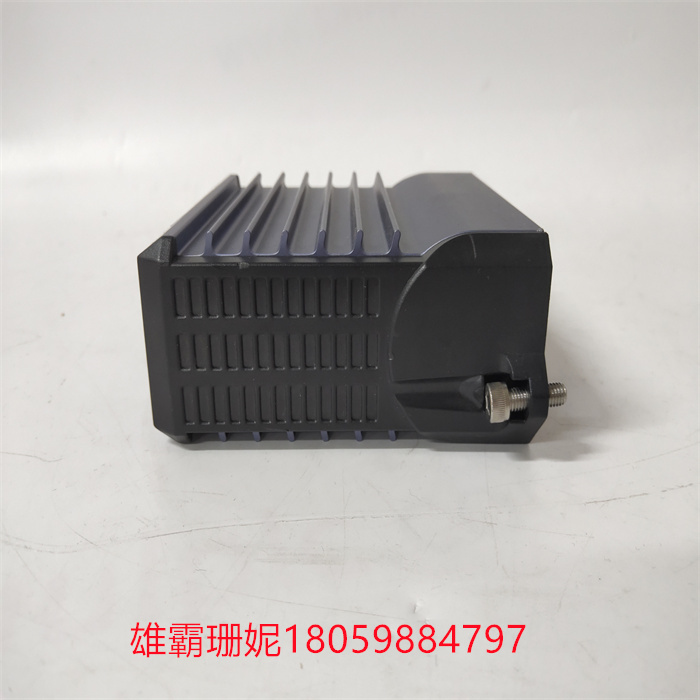

FOXBORO热电阻输入输出模块FBM222卡件/交换机

FOXBORO热电阻输入输出模块FBM222卡件/交换机

FLEX数字量I/O模块按其功能可以分为带保护输出型、带电子保险型、带自诊断型和隔离型。

(1)带保护输出型具有电子保护,能够在短路、过载或过热情况下切断输出,在输出故障排除时自动恢复。没有故障状态信息提供给处理器模块型号末尾为P.

(2)带电子保险型能够在故障发生时断开输出,通过操作按钮、软件或输入重新通电复位“保险”。故障状态信息提供给处理器,模块型号末尾为EP。

(3)带自诊断型能够检测、指示并报告给处理器如下故障现场输入或输出设备开路或接线开路;现场设备输出短路,输入或输出接线短路;用户电源接线反极性。模块型号末尾为D.

(4)隔离型:内部/O通道间相互隔离,模块型号末尾为1.

FLEX digital I/O modules can be divided into protected output type, electronic safety type, self-diagnostic type and isolation type according to their functions.

(1) The protected output type has electronic protection, which can cut off the output in the case of short circuit, overload or overheating, and automatically recover when the output is troubleshooting. No fault status information is provided to the processor module model end P.

(2) The electronic safety type can disconnect the output when a fault occurs and reset the "safety" by operating the button, software or input re-energizing. The fault status information is provided to the processor. The end of the module model is EP.

(3) The self-diagnostic type can detect, indicate and report to the processor the following fault field input or output device open circuit or wiring open circuit; Field equipment output short circuit, input or output wiring short circuit; Reverse polarity of the user power cable. The end of the module model is D.

(4) Isolation type: the internal /O channels are isolated from each other, and the end of the module model is 1.
