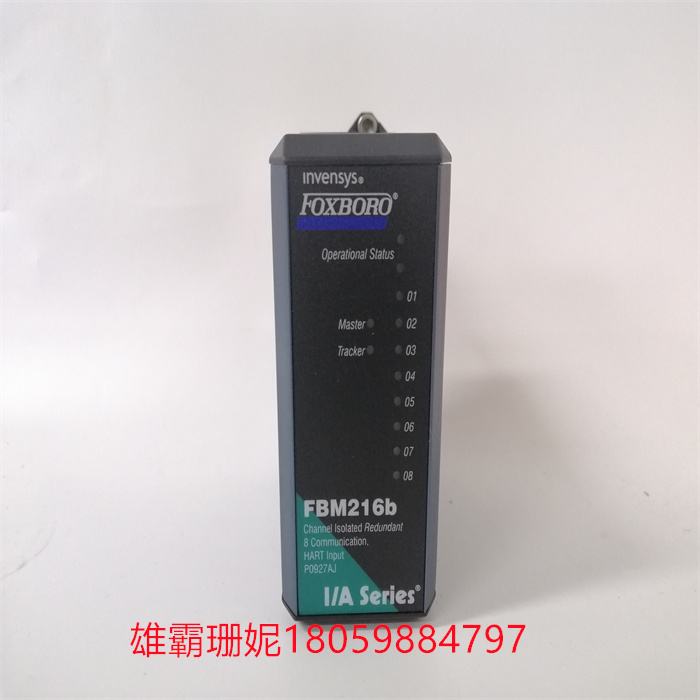

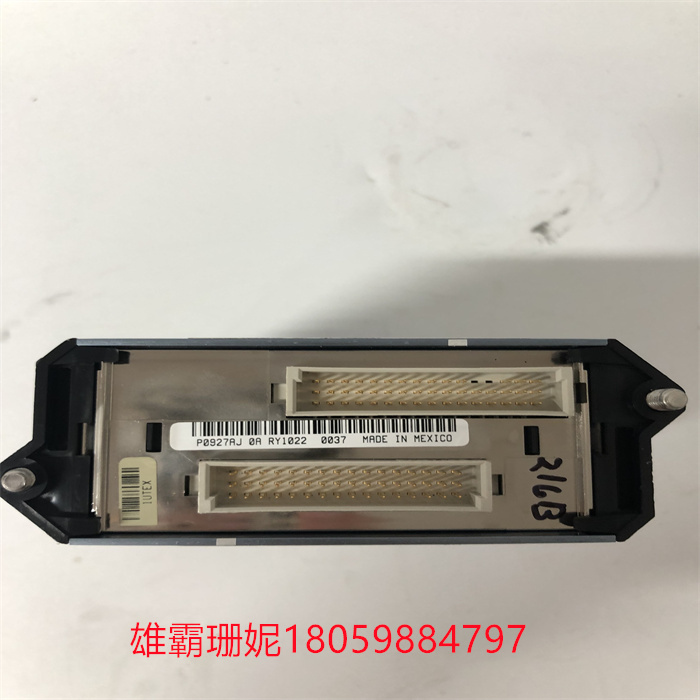

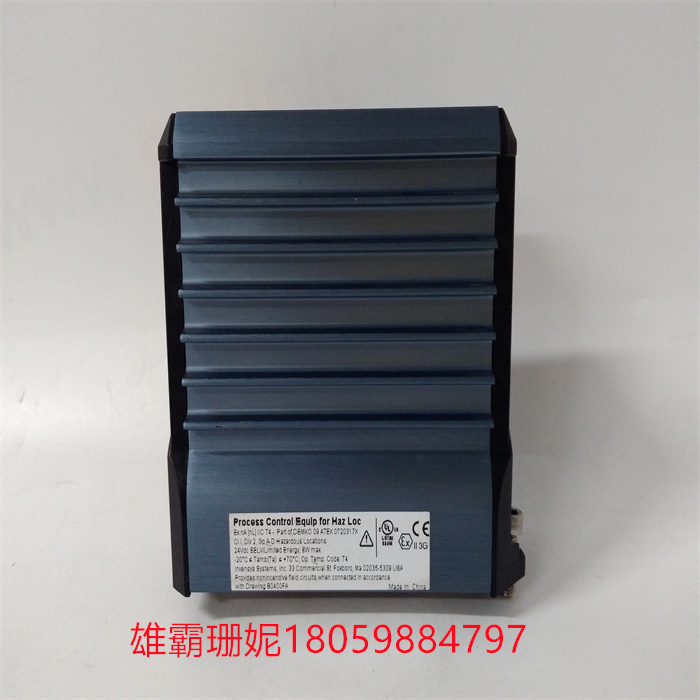

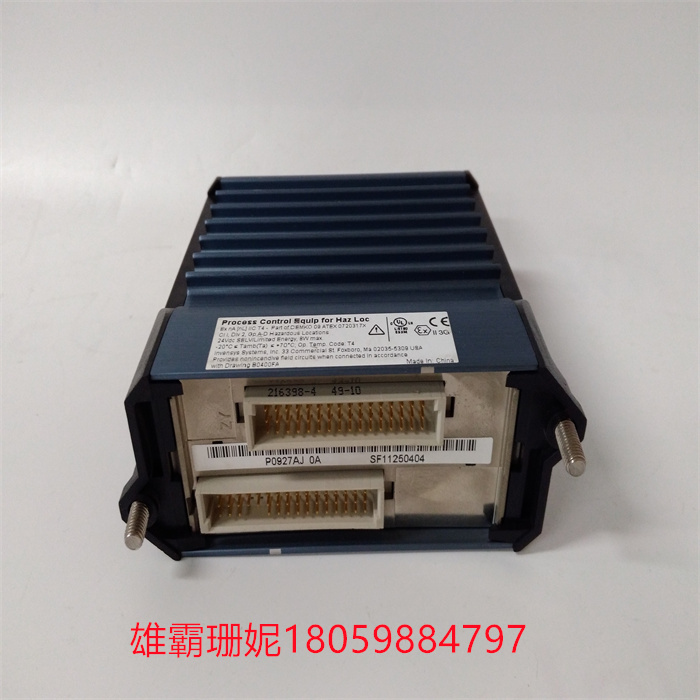

FOXBORO热电阻输入输出模块FBM216B卡件/交换机

FOXBORO热电阻输入输出模块FBM216B卡件/交换机

产品类型:外部来源，离散输出接口模块

特性16路离散输出，支持15至60Vdc、120Vac/125 V dc、240V ac电压下的离散输出信号，每个输入和输出均为电流隔离，与外部激励一起使用时为组隔离，紧凑、坚固的设计适合G3类(恶劣)环境中的外壳，执行离散/O或梯形逻辑程序，具有以下可配置选项输入滤波时间、故隍安全配置、故障、安全回退以及持续或瞬时输出

输入电压范围(冗余):24伏直流电+5%，-10%功耗(大值):24伏直流电时为3瓦(大值)

散热:24伏直流电时为6.5瓦(大值)(所有输出均为1.5安)

校准要求:模块和终端组件不需要校准。

温度模块:-20至+70摄氏度(-4至+158华氏度)

终端组件PVC : -20至+50摄氏度(-4至+122华氏度)相对湿度:5至95%(非冷凝)

尺寸(长x宽x高):10.4厘米x4.5厘米x 11.4厘米重量:0.284千克

运输重量:2公斤

Product Type: External source, discrete output interface module

Features 16 discrete outputs supporting discrete output signals at 15 to 60Vdc, 120Vac/125 Vdc, 240V ac voltages, each input and output is current isolated and group isolated when used with external excitation. Compact, rugged design for enclosures in G3 (harsh) environments. Execute discrete /O or ladder logic programs with the following configurable options for input filter time, safety configuration, fault, safety rollback, and continuous or instantaneous output

Input voltage range (redundancy): 24V DC +5%, -10% Power consumption (Max): 3W at 24V DC (Max)

Heat dissipation: 6.5 watts at 24 volts DC (maximum)(all outputs are 1.5 amps)

Calibration requirements: Modules and terminal components do not require calibration.

Temperature module :-20 to +70 degrees Celsius (-4 to +158 degrees Fahrenheit)

Terminal components PVC: -20 to +50 degrees Celsius (-4 to +122 degrees Fahrenheit) Relative humidity :5 to 95%(non-condensing)

Dimensions (L x W x H):10.4 cm x4.5 cm x 11.4 cm Weight :0.284 kg

Shipping weight :2 kg
