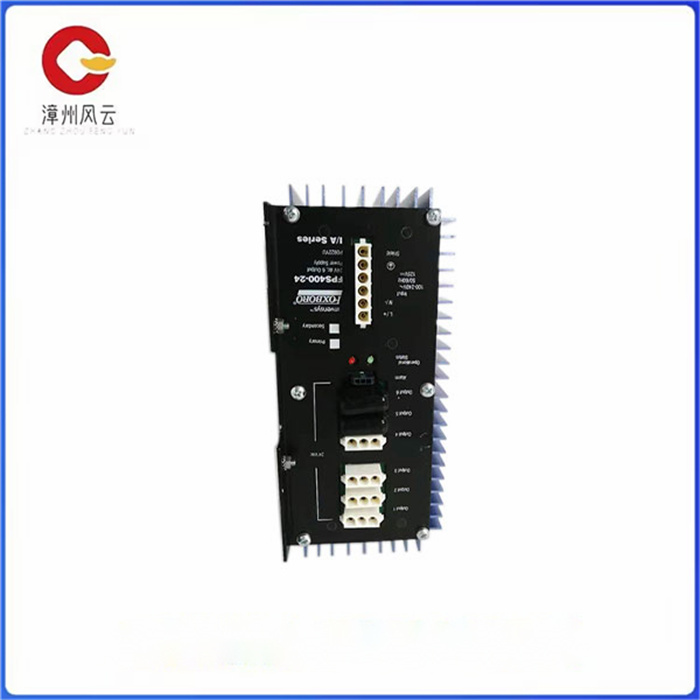

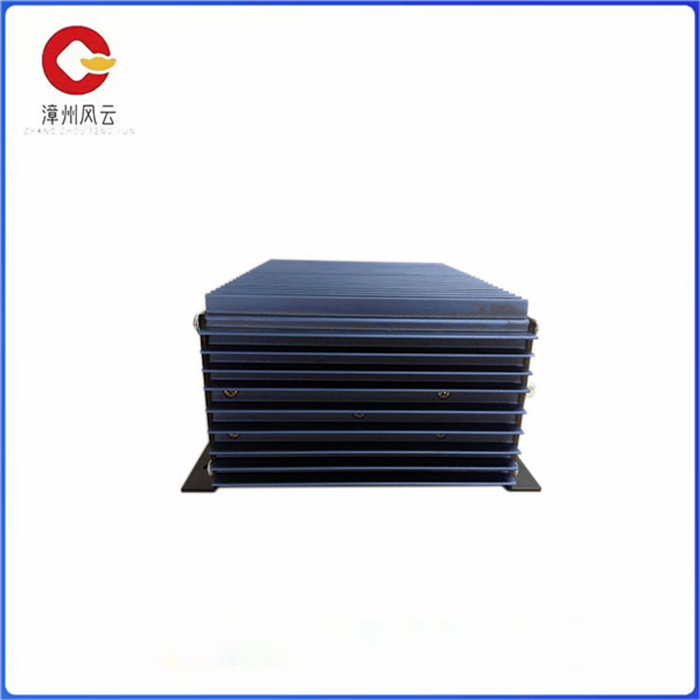

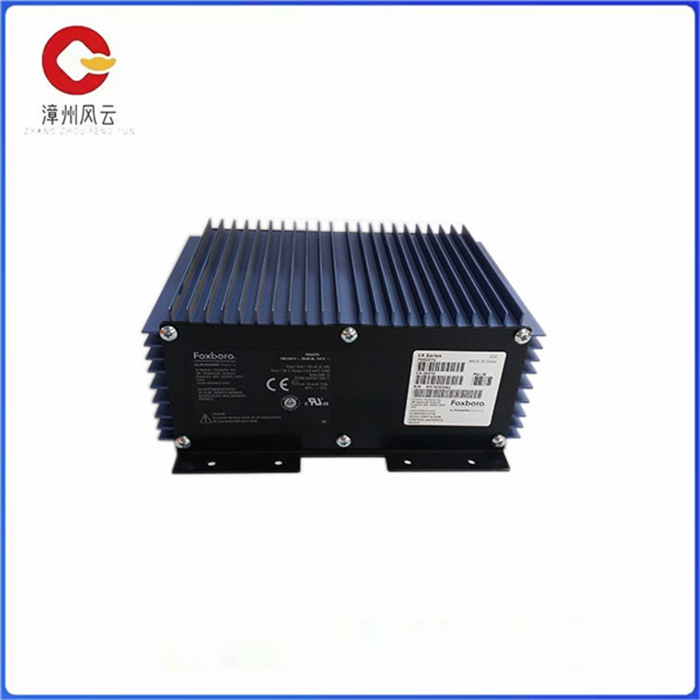

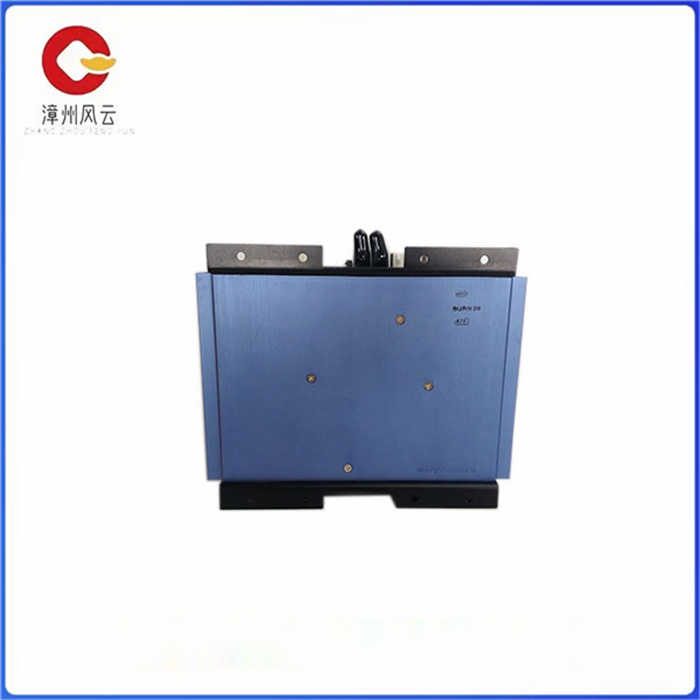

FPS400-24 85至265伏交流电或108至145伏直流电

FPS400-24 85至265伏交流电或108至145伏直流电

福克斯博罗(施耐德电气)

产品编号:P0922YU

型号:电源

输入电压范围:85至265伏交流电或108至145伏直流电，标称125伏直流电

输入频率范围:47至63赫兹

输入电流:85 V交流输入时为5.6 A(均方根最大值)，230 V交流输入时为2.5 A(均方根最大值)

输出电压:24.0伏直流，0.2伏直流标称出厂设置

电压线调整率:Vout的2.0%

过电流保护:在额定电流为25？c负载

泄漏电流:在250 V交流电(47至63 Hz)或更低电压下工作时，交流线路到机箱接地小于1.6 mA

振动:0.75克(5至500赫兹)

工作温度:–30至71摄氏度(–58至+160华氏度)

工作相对湿度:5至95%(非冷凝)

工作高度:–300至+3000米(–1000至+10000英尺)

尺寸(高x宽x深)，约为:17.8厘米x 10.7cm厘米x 21.5cm厘米

运输重量:6公斤

FPS400-24 85至265伏交流电或108至145伏直流电

Foxboro (Schneider Electric)

Product Number :P0922YU

Model: Power Supply

Input voltage range :85 to 265 volts AC or 108 to 145 volts DC, nominal 125 volts DC

Input frequency range :47 to 63 Hz

Input current: 5.6A (RMS Max) for 85 V AC input, 2.5A (RMS Max) for 230 V AC input

Output voltage :24.0 V DC, 0.2 V DC nominal factory Settings

Voltage line adjustment rate: 2.0% of Vout

Overcurrent protection: when the rated current is 25? c load

Leakage current: When operating at 250 V AC (47 to 63 Hz) or lower, the AC line to chassis grounding is less than 1.6 mA

Vibration :0.75 g (5 to 500 Hz)

Operating temperature: -30 to 71 degrees Celsius (-58 to +160 degrees Fahrenheit)

Operating relative humidity :5 to 95%(non-condensing)

Working height: -300 to +3000 m (-1000 to +10000 ft)

Dimensions (H x W x D), approximately :17.8 cm x 10.7cm x 21.5cm

Shipping weight :6 kg
