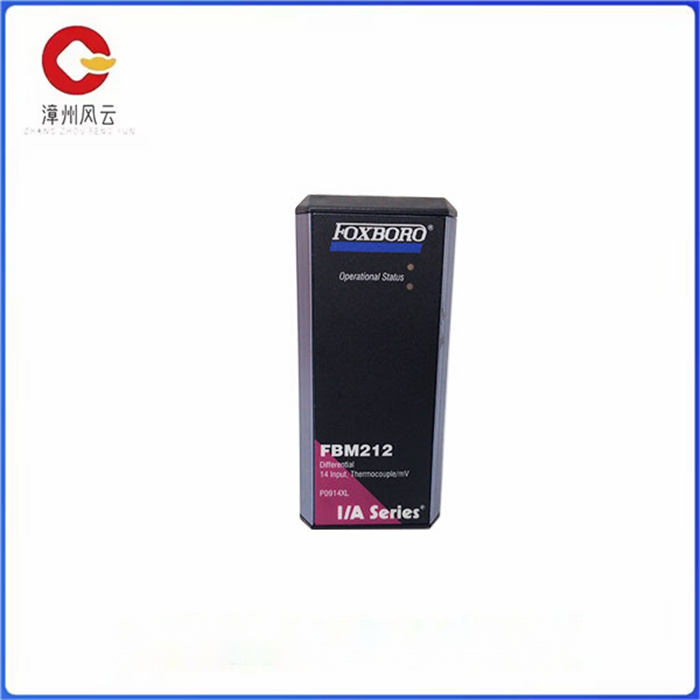

FBM212 P0914XL 差分热电偶/mV输入模块

FBM212 P0914XL 差分热电偶/mV输入模块

差分热电偶/mV输入模块(FBM212)包含14个差分隔离热电偶输入通道和一个差分隔离RTD参考结温度补偿通道(用于终端温度传感)。每个热电偶/毫

伏通道接受各种温度范围的标准热电偶，每个热电偶都提供烧坏检测(高档)。每个通道都有-个差分输入，以允许通道之间的电压差异而不会引入检

测到的错误。

该模块执行从现场传感器到可选冗余现场总线的电气输入信号接口所需的信号转换。它执行模拟输入应用程序,该程序提供可配置的转换时间和变化

率限制选项。

特性

●14通道输入热电偶信号

●1个隔离RTD参考结补偿通道(用于终端温度传感)

每个通道有一个差分输入

●坚固耐用的设计适用于G3(恶劣)环境的外壳

执行模拟输入应用程序，提供转换时间和可配置的变化率限制选项

通过每个通道的sigma-delta数据转换实现高精度

●终端组件(TAs)本地或远程连接现场布线到FBM212

FBM212 P0914XL 差分热电偶/mV输入模块

The Differential thermocouple /mV input module (FBM212) contains 14 differential isolated thermocouple input channels and one differential isolated RTD reference junction temperature compensation channel for terminal temperature sensing. Per thermocouple/milli

The volt channel accepts standard thermocouples in a variety of temperature ranges, each offering burn detection (high grade). Each channel has a differential input to allow voltage differences between channels without introducing detection

Error in measurement.

The module performs the required signal conversion from the field sensor to the electrical input signal interface of the optional redundant fieldbus. It performs an analog input application that provides configurable conversion times and changes

Rate limit option.

peculiarity

● 14-channel input thermocouple signal

●1 isolated RTD reference junction compensation channel (for terminal temperature sensing)

Each channel has a differential input

● Rugged housing designed for G3(harsh) environments

Execute an analog input application with conversion time and configurable rate-of-change limiting options

High precision is achieved through sigma-delta data conversion on each channel

● Terminal components (TAs) locally or remotely connect field cabling to the FBM212
