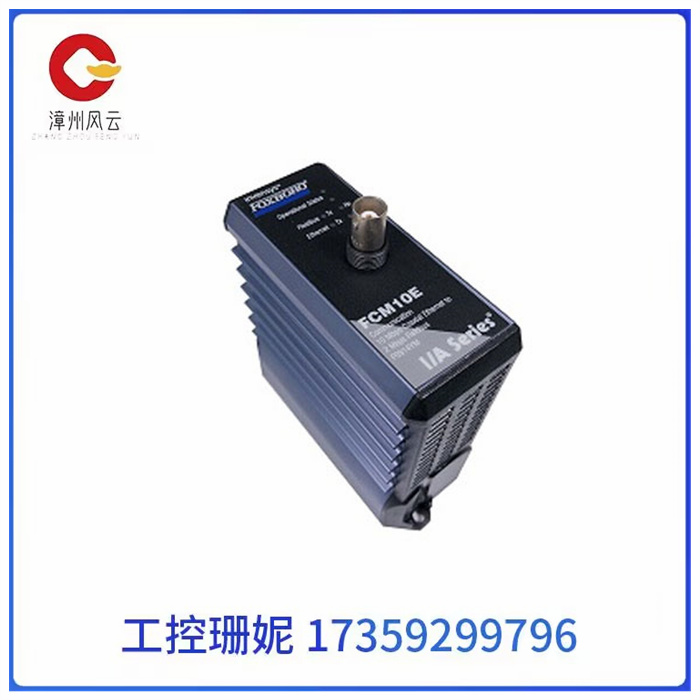

FOXBORO热电阻输入输出模块FCM10E卡件/交换机

FOXBORO热电阻输入输出模块FCM10E卡件/交换机

FOXBORO热电阻输入输出模块FCM10E卡件/交换机

1.现场总线集成于DCS系统是现阶段控制网络的发展趋势:

尽管用户对控制系统的结构改进表示欢迎，但他们并不希望对他们现有的仪表系统做大的改动。目前在现场总线的发展初期，大多数用户更倾向于对他们现有的仪表系统进行逐步的增添和替换;另一方面DCS系统及其仪表的消失或完全被取代，对于费用或人力而言也都是不合理的。现阶段可行的方案是考虑如何使现场总线与传统的DCS系统尽可能地协同工作，这种集成方案能够得到灵活的系统组态，以适用于更广泛的、富于实用价值的应用。

⒉现场总线于DCS系统I/O总线上的集成:

在DCS系统的I/O总线上集成现场总线的关键是通过一个现场总线接口卡挂在DCS的I/O总线上，实现现场总线系统中的数据信息映射成原有DCS的V/O总线上相对应的数据信息，如基本测量值、报警值或工艺设定值等，使得在DCS控制器所看到的现场总线来的信息就如同来自一个传统的DCS设备卡一样。这样便实现了在I/O总线上的现场总线技术集成。

3.现场总线于DCS系统网络层的集成。

FOXBORO热电阻输入输出模块FCM10E卡件/交换机

1. The integration of fieldbus into DCS system is the development trend of control network at this stage:

Although users welcomed the structural improvements to the control system, they did not want to make major changes to their existing instrumentation system. At present, in the early stage of the development of fieldbus, most users are more inclined to gradually add and replace their existing instrument systems; On the other hand, the disappearance or complete replacement of DCS systems and their instrumentation is not justified in terms of cost or manpower. At present, the feasible scheme is to consider how to make the fieldbus and the traditional DCS system work together as much as possible, this integration scheme can get flexible system configuration, so as to be suitable for a wider range of practical applications.

Fieldbus integration on the DCS I/O bus:

The key to integrating fieldbus on the I/O bus of DCS system is to map the data information in the fieldbus system to the corresponding data information on the original DCS V/O bus through a fieldbus interface card, such as basic measurement value, alarm value or process setting value, etc. The information from the field bus seen in the DCS controller is just like that from a traditional DCS device card. This enables the integration of fieldbus technology on the I/O bus.

3. Integration of fieldbus in DCS system network layer.
