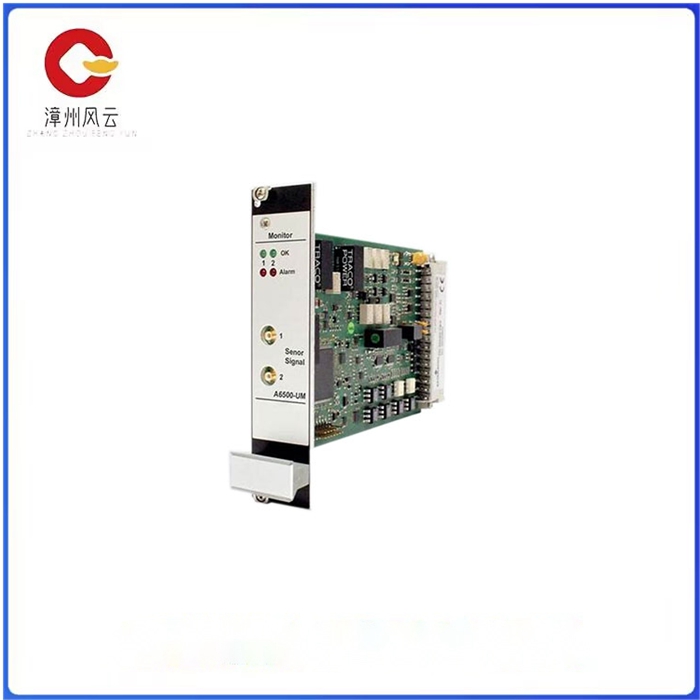

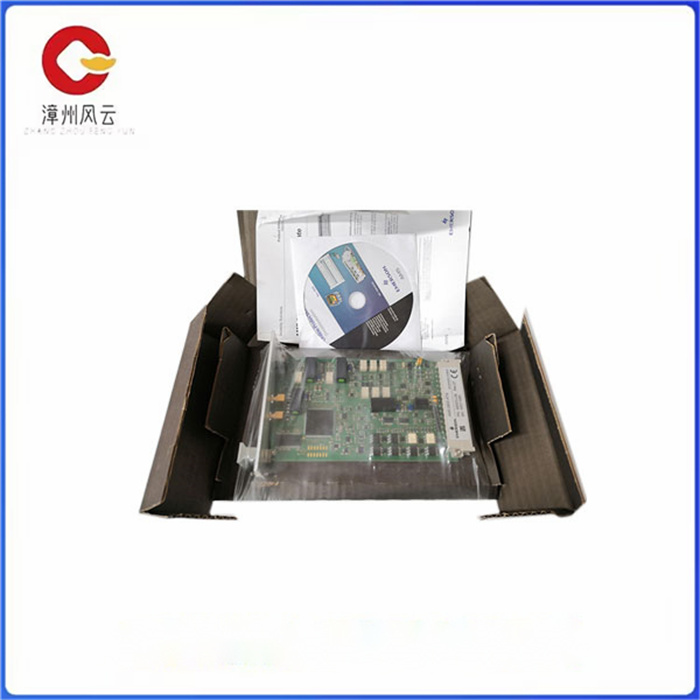

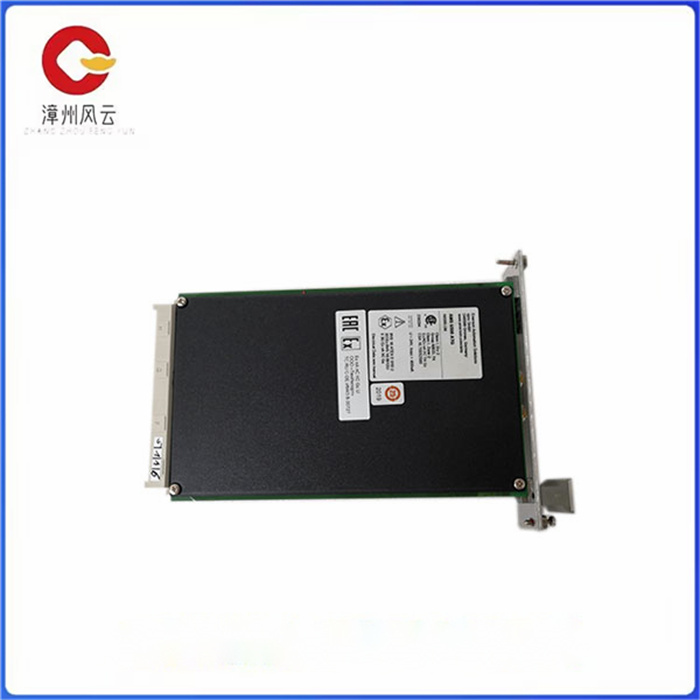

A6500-UM通用测量卡是AMS 6500 ATG机械保护系统的一个组件。该卡配有2个传感器输入通道（独立或组合，根据所选测量模式），与涡流、压电（加速度计或速度计）、地震（电动）、LF（低频轴承振动）、霍尔效应和LVDT（与A6500-LC组合）传感器等最常见的传感器一起工作。除此之外，该卡还包含5个数字输入和6个数字输出。

测量信号通过内部RS 485总线传输至A6500-CC通信卡，并转换为Modbus RTU和Modbus TCP/IP协议，以进一步传输至主机或分析系统。此外，通信卡通过面板上的USB插座提供通信，用于连接PC/笔记本电脑，以配置卡和可视化测量结果。

除此之外，测量结果可以通过模拟输出0/4-20mA输出。这些输出具有公共接地，并且与系统电源电气隔离。A6500-UM通用测量卡的操作在A6500-SR系统机架中执行，该机架还提供电源电压和信号连接。A6500-UM通用测量卡提供以下功能：Q轴绝对振动Q轴相对振动Q轴偏心率Q壳体压电振动Q推力和杆位置、差速器和壳体膨胀、阀位置Q速度和键信号输入，涡流输入信号和原始信号电压范围-1 V至-22 V频率范围0至18750 Hz衰减<0.1 db电源电压-23.25 V/-26.0 V DC可选短路防护最大电源负载35 mA电源精度±1%电源负载变化±1%负载0至100%电源温度漂移±1%，工作温度范围-20°C至+70°C A6500-UM通用测量卡Q双通道、3U大小、1插槽插件模块将机柜空间需求从传统的

A6500-UM 通用测量卡 用于ATG机械保护系统

The A6500-UM Universal measuring card is a component of the AMS 6500 ATG mechanical protection system. The card is equipped with 2 sensor input channels (independent or combined, depending on the selected measurement mode) and works with the most common sensors such as vortex, piezoelectric (accelerometer or speedometer), seismic (electric), LF (low frequency bearing vibration), Hall effect and LVDT (combined with A6500-LC) sensors. In addition, the card also contains 5 digital inputs and 6 digital outputs.

The measurement signals are transmitted via the internal RS 485 bus to the A6500-CC communication card and converted into Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system. In addition, the communication card provides communication via a USB socket on the panel for connecting a PC/ laptop to configure the card and visualize the measurement results.

In addition, the measurement results can be output by analog output 0/4-20mA. These outputs have common ground and are electrically isolated from the system power supply. Operation of the A6500-UM Universal measuring card is performed in the A6500-SR system rack, which also provides power voltage and signal connections. The A6500-UM Universal Measuring card provides the following functions: Q axis absolute vibration Q axis relative vibration Q axis eccentricity Q housing piezoelectric vibration Q thrust and rod position, differential and housing expansion, valve position Q speed and key signal input, Eddy current input signal and original signal voltage range -1 V to -22 V Frequency range 0 to 18750 Hz Attenuation < 0.1db Power supply voltage -23.25V / -26.0V DC Optional short circuit protection Maximum power load 35 mA Power accuracy ±1% Power load change ±1% Load 0 to 100% Power temperature shift ±1%, operating temperature range -20°C to +70°C A6500-UM Universal Measurement card Q Dual-channel, 3-U, 1-slot plug-in module removes the need for traditional cabinet space
