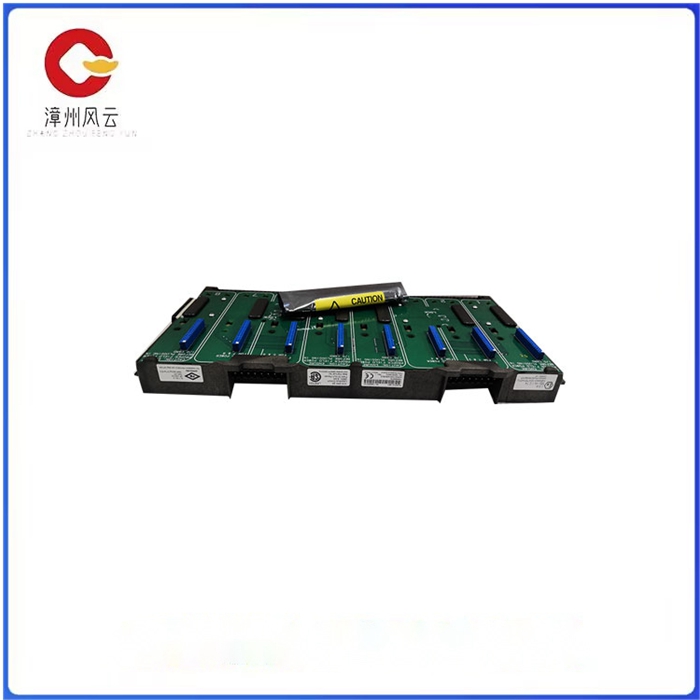

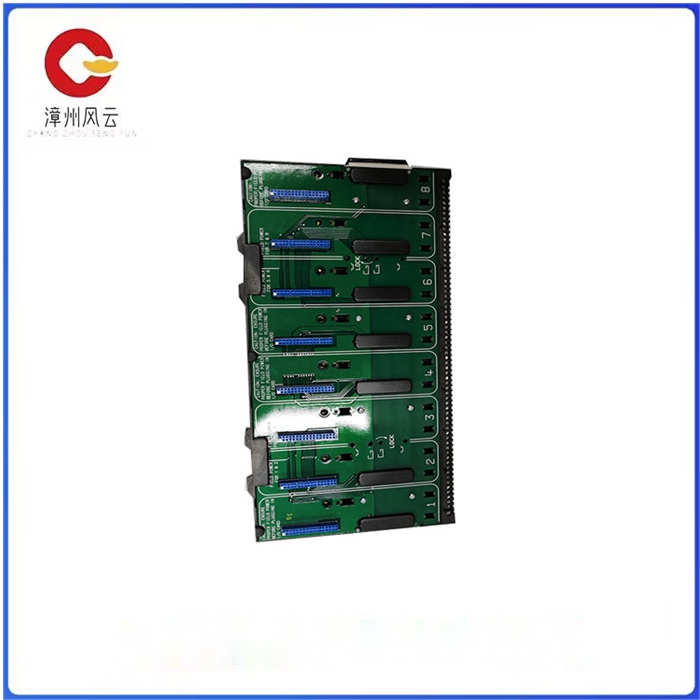

CE4050S2K1C0  模拟量输入输出模块

CE4050S2K1C0  模拟量输入输出模块

CE4050S2K1C0：TU851 250V扩展MTU，该扩展MTU最多允许16个隔离的I/O通道和过程电压连接。它有一个32杆螺旋终端用于工艺连接。

TU852是一个冗余模块终端单元，冗余。TU852有一个两个25针脚D-子电源连接器，用于现场信号和处理电源连接。它是用于安装在水平DIN轨道上。在MTU上有空间，可以将两个I/O模块连接到单独的模块总线。

CE4050S2K1C0：TU854是一个8通道冗余模块终止单元。TU854有一个25针D-Sub连接器，用于现场信号和处理电源连接。它是用于安装在水平DIN轨道上。   MTU上设有8个可更换的分流棒（即每个通道有一个分流棒），用于将输入电流信号转换为电压信号。MTU上有空间用于连接到独立模块的模块总线。

CE4050S2K1C0  模拟量输入输出模块

CE4050S2K1C0: TU851 250V extended MTU, which allows up to 16 isolated I/O channels and process voltage connections. It has a 32-bar screw terminal for process connections.

The TU852 is a redundant modular terminal unit, redundant. The TU852 has a two 25-pin D-sub power connector for field signal and processing power connections. It is used for mounting on horizontal DIN rails. There is space on the MTU to connect two I/O modules to separate module buses.

CE4050S2K1C0: TU854 is an 8-channel redundancy module termination unit. The TU854 has a 25-pin D-Sub connector for field signal and processing power connections. It is used for mounting on horizontal DIN rails. The MTU has eight replaceable shunt rods (i.e., one shunt rod per channel) for converting the input current signal into a voltage signal. There is space on the MTU for module buses that connect to individual modules.
