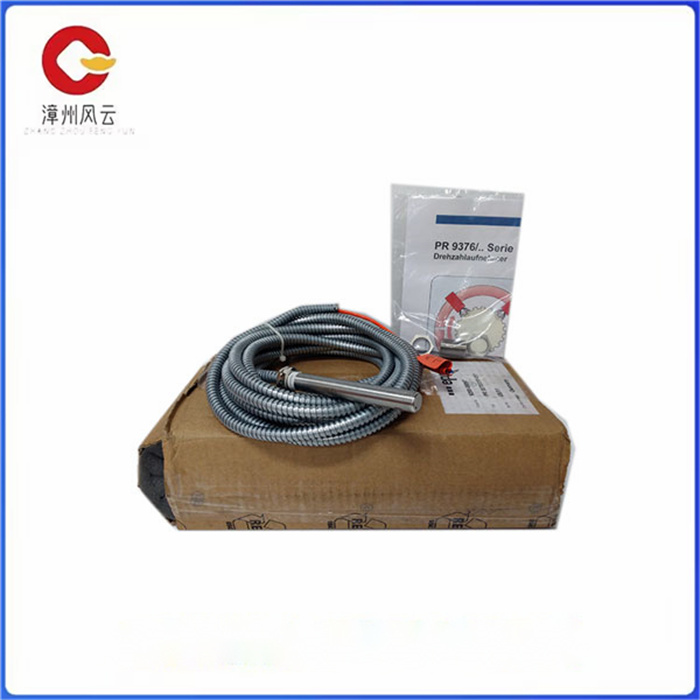

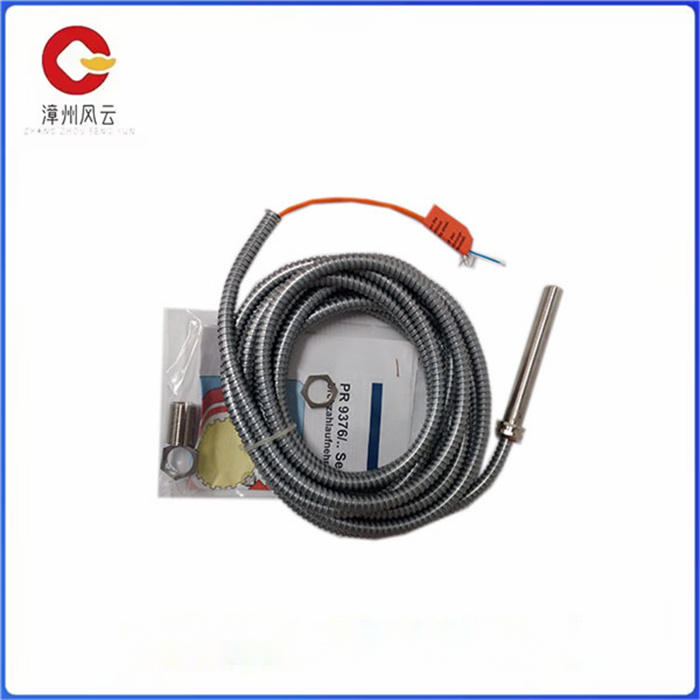

PR9376010-011 流量传感器

PR9376010-011 流量传感器

传感器型号：

为了满足各种测量需要和环境要求， epro 公司提供多种型号及配置的涡流传感器供用户选择。

传感器带有安装螺纹或矩形安装法兰。

测量范围为1mm至20mm。

螺纹尺寸为Φ6mm、Φ10mm和Φ18mm公制或英制螺纹。

根据型号的不同，传感器可有以下选择：

1、不同螺纹长度；

2、电缆的末端可选择自锁式防水接头或裸线方式；

3、电缆可选择铠装或非铠装；

4、1m电缆处可选择有接头或无接头；

5、适用温度：-35℃-+380℃。

交货时，传感器和前置器已经在工厂进行了线性校准。标准校准材料为42CrMo4，参照SAE4140标准。如果用户要求，也可以用其他材料进行校准，只是传感器和被测物之间的气隙需在现场调整。室温环境下，传感器和电缆的耐腐蚀性：

防水、防潮、防天然气、防氦气、防油、及防苯等有机物。

PR9376010-011 流量传感器

Sensor model:

To meet various measurement needs and environmental requirements, epro offers a wide range of models and configurations of eddy current sensors.

Sensor with mounting thread or rectangular mounting flange.

The measuring range is 1mm to 20mm.

Thread sizes are Φ6mm, Φ10mm and Φ18mm metric or imperial threads.

Depending on the model, the following sensor options are available:

1, different thread length;

2, the end of the cable can choose self-locking waterproof connector or bare wire mode;

3, the cable can choose armoured or non-armoured;

4, 1m cable can be selected with or without connectors;

5, applicable temperature: -35℃-+380℃.

Upon delivery, the sensors and precursors have been linearly calibrated at the factory. The standard calibration material is 42CrMo4, according to SAE4140 standard. Other materials can also be used for calibration if required by the user, but the air gap between the sensor and the measured object needs to be adjusted on site. Corrosion resistance of sensors and cables at room temperature:

Waterproof, moisture-proof, gas, helium, oil, benzene and other organic matter.
