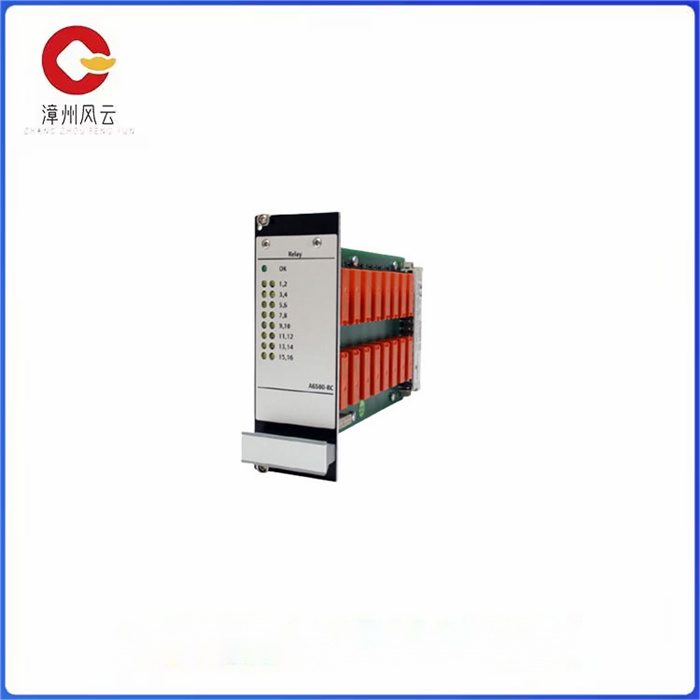

A6500-RC EMERSON 用于冗余装置的通讯卡

A6500-RC EMERSON 用于冗余装置的通讯卡

16 通道输出继电器模块专为工厂最关键的旋转机械提供高可靠性而设计。该监视器与 AMS 6500 ATG 一起使用，构建完整的 API 670 机械保护监视器。应用包括蒸汽、气体、压缩机和水力涡轮机械。

任何通道清除、警报或报警信号都可以选择作为 16 通道输出继电器模块的输入。使用布尔逻辑、应用时间延迟并选择输出继电器来完成配置。易于使用的软件提供图形逻辑显示，以图形方式指导用户完成配置。

  AMS 6500 机械健康监测仪是 PlantWeb® 和 AMS 软件的组成部分。PlantWeb 提供操作 - 与 Ovation® 和 DeltaV™ 过程控制系统相结合的集成机械健康状况。

AMS 软件为维护人员提供先进的预测和性能诊断工具，以便尽早自信、准确地确定机器故障。数字输入 输入数量 66 逻辑低电平 0V 至 3V 未激活 逻辑高电平 13V 至 32V 激活 开路输入 开路输入检测为未激活 额定电流 1 mA 额定功率 24 mW 继电器输出 输出数量 16 类型 SPDT 最大电压容量 32V DC / 48V AC 输出负载 AC1: 48V / 2A DC1: 32V / 2A DC-13: 24V / 1A AC-15: 24V / 2A 开启/关闭时间 10 ms NO 触点 13 ms NC 触点 无逻辑处理时间 额定电流 2 A 额定功率 96 W

A6500-RC EMERSON 用于冗余装置的通讯卡

The 16-channel output relay module is designed to provide high reliability for the plant's most critical rotating machinery. This monitor is used with AMS 6500 ATG to build a complete API 670 machine protection monitor. Applications include steam, gas, compressors and hydraulic turbomachinery.

Any channel clear, alarm, or alarm signal can be selected as input to the 16-channel output relay module. Use Boolean logic, apply the time delay, and select the output relay to complete the configuration. The easy-to-use software provides graphical logic displays that graphically guide users through configuration.

The AMS 6500 Mechanical Health Monitor is an integral part of PlantWeb® and AMS software. PlantWeb offers operational - integrated mechanical health in conjunction with Ovation® and DeltaV™ process control systems.

AMS software provides maintenance personnel with advanced predictive and performance diagnostic tools to confidently and accurately identify machine failures as early as possible. Digital Input Number of inputs 66 Logic Low 0V to 3V Unactivated Logic High 13V to 32V Active Open input Open input Detected as inactive Rated current 1 mA Rated power 24 mW Relay output Number of outputs 16 Type SPDT Maximum voltage capacity 32V DC / 48V AC Output load AC1: 48V / 2A DC1: 32V / 2A DC-13: 24V / 1A AC-15: 24V / 2A On/Off time 10 ms NO contact 13 ms NC contact no logical processing time Rated current 2A Rated power 96 W
